For buttons not explained here, see the page indicated in parentheses ( ).

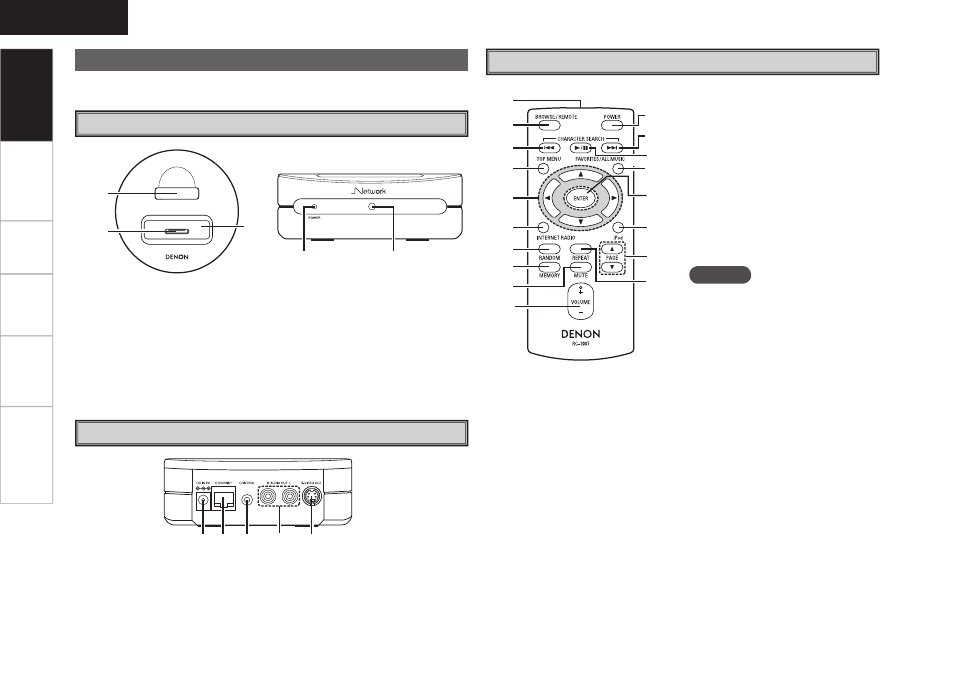

Part Names and Functions
Top Panel / Front Panel
Rear Panel
Remote Control Unit
q
w
e
r t
q w e r t
q
Q1
Q2
Q3
Q4
Q5
Q6
Q7
Q8
w
e
r
t
y
u
i
o
Q0
q Remote control unit storage slot
w Dock connector
e Universal adapter slot ············· (5)
r POWER indicator
When the AC adapter plug is
inserted into the wall socket, this
unit is powered and the display
illuminates. When the GUI and
audio output stops the display is
extinguished.
t Remote Control sensor ··········· (3)
q DC IN terminal ·························· (6)
w ETHERNET connector ·············· (7)
e CONTROL terminal
(stereo mini plug)····················· (6)
r AUDIO OUT terminals ············· (6)
t S-VIDEO OUT terminal ············ (6)
u RANDOM button
i MEMORY button
o Muting button (MUTE)
Turning off the sound temporarily.
Q0 VOLUME control buttons
Use this to adjust the volume.
Q1 POWER button
When this button is pressed, the
GUI and audio outputs are stopped.
Even when stopped (POWER
indicator extinguished) the iPod is
charged.
NOTE
While the AC adapter plug is
inserted into the wall socket, this
unit is in the powered state. During
absence or long periods without
being used, please withdraw the
adapter plug from the wall socket.
Q2 Skip Next button (9)
Q3 Play/Pause button (1/3)
Q4 FAVORITES/ALL MUSIC button
················································· (20)
When pressed, the favorites folder
appears on the monitor.
Q5 ENTER button··························(16)
Q6 iPod menu button
When pressed, the iPod menu
appears on the monitor.
Q7 PAGE buttons (ui)
Q8 REPEAT button
b CHARACTER SEARCH and ALL
MUSIC functions are not executed by
this unit.
q Remote control signal transmitter
·····················································(3)
w iPod mode select button
(BROWSE/REMOTE) ················ (17)
e Skip Previous button (8)
r TOP MENU button ··················· (10)
When pressed, the GUI's top menu
appears on the monitor.
t Cursor buttons (uiop)
y INTERNET RADIO menu button
··················································· (17)
When pressed, the Internet radio
menu appears on the monitor.
