Appendix
5P PS/2 MOUSE
Pin 1: Mouse Data
Pin 3: Ground
Pin 5: Mouse Clock
Pin 2: Not Connected
Pin 4: Vcc +5V
Pin 6: Not Connected
4P USB TYPE A
Pin 2: Negative Data
Pin 1: VCC +5V Pin 3: Positive Data
Pin 4: Ground
RJ45 10/100 LAN
Use category 5 - twisted pair cable
1 2 3 4 5 6 7 8
Pin 01 - TDP Transmit Differential Pair (Positive)
Pin 02 - TDN Transmit Differential Pair (Negative)
Pin 03 - RDP Receive Differential Pair (Positive)
Pin 04 - NC Not Connected
Pin 05 - NC Not Connected
Pin 06 - RDN Receive Differential Pair (Negative)
Pin 07 - NC Not Connected
Pin 08 - NC Not Connected
9P Serial COM RS-232
This connector is commonly used for:
5 4 3 2 1
9 8 7 6
Pin 01 - DCD Data Carry Detect
Pin 02 - SIN Serial In or Receive Data
Pin 03 - SOUT Serial Out or Transmit Data
Pin 04 - DTR Data Terminal Ready
Pin 05 - GND Ground
Pin 06 - DSR Data Set Ready
Pin 07 - RTS Request To Send
Pin 08 - CTS Clear To Send
Pin 09 - RI Ring Indicate

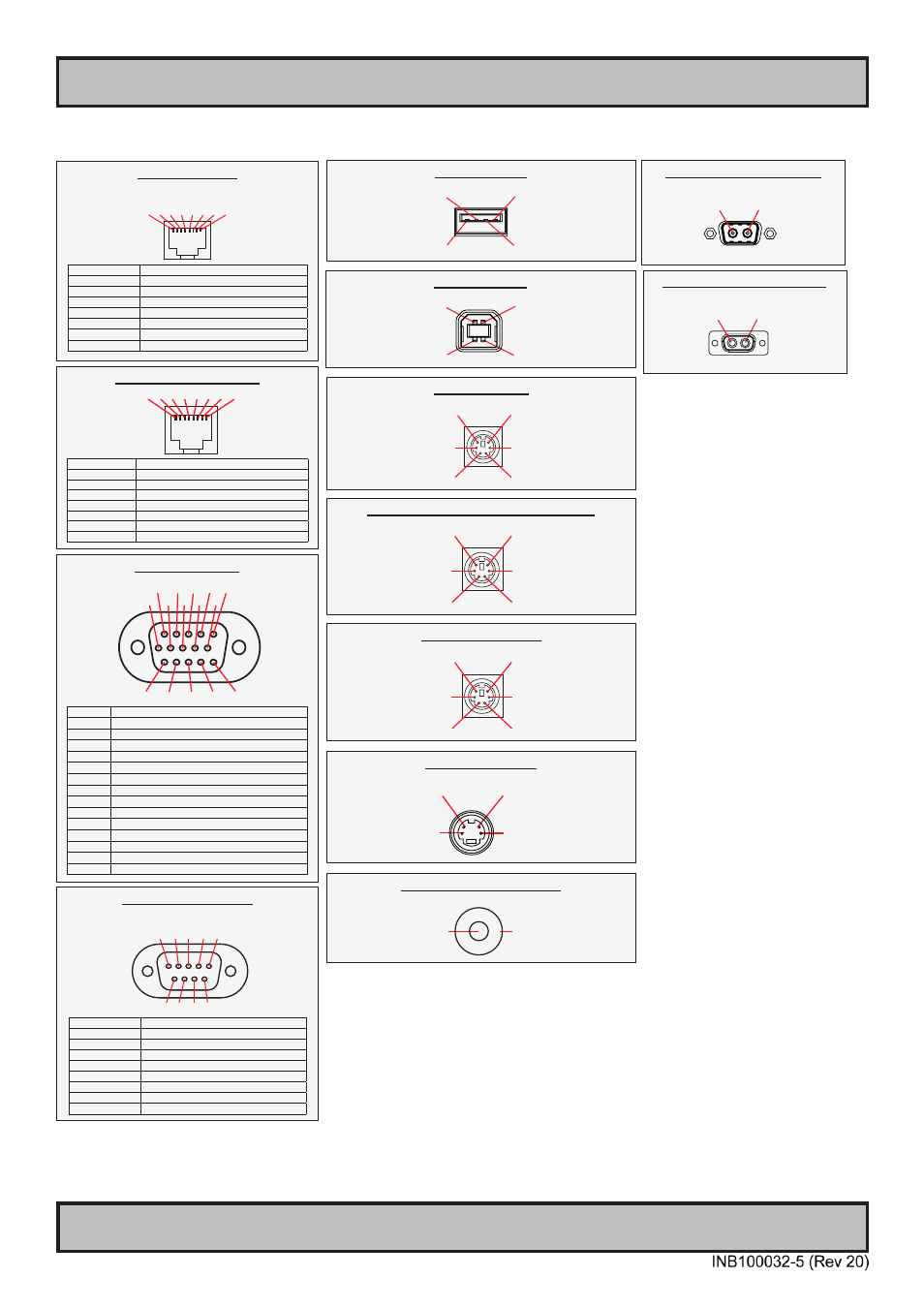

Pinout Assignments - Common Connectors
RJ45 10/100/1000 GBLAN
Pin 01 - D0P Differential Pair 0 (Positive)
Pin 02 - D0N Differential Pair 0 (Negative)
Pin 03 - D1P Differential Pair 1 (Positive)
Pin 04 - D2P Differential Pair 2 (Positive)
Pin 05 - D2N Differential Pair 2 (Negative)
Pin 06 - D1N Differential Pair 1 (Negative)
Pin 07 - D3P Differential Pair 3 (Positive)
Pin 08 - D3N Differential Pair 3 (Negative)
1 2 3 4 5 6 7 8
Note: Not all connectors may be available on your specific product. This depends on the amount of additional hardware installed from factory,
or customized solutions. These pin assignments are for the common connectors used. Connectors are seen from users Point Of View (POV).
15P HD RGB VGA
Pin 01 Red, analog
Pin 02 Green, analog
Pin 03 Blue, analog
Pin 04 Reserved for monitor ID bit 2 (grounded)
Pin 05 Digital ground
Pin 06 Analog ground red
Pin 07 Analog ground green
Pin 08 Analog ground blue
Pin 09 +5V power supply for DDC (optional)
Pin 10 Digital ground
Pin 11 Reserved for monitor ID bit 0 (grounded)
Pin 12 DDC serial data
Pin 13 Horizontal sync or composite sync, input
Pin 14 Vertical sync, input
Pin 15 DDC serial clock
5 4 3 2 1
15 14 13 12 11
10 9 8 7 6
5P PS/2 KEYBOARD
Pin 1: Keyboard Data
Pin 3: Ground
Pin 5: Keyboard Clock
Pin 2: Not Connected
Pin 4: Vcc +5V
Pin 6: Not Connected
5P PS/2 KEYBOARD+MOUSE Combined
Pin 1: Keyboard Data
Pin 3: Ground
Pin 5: Keyboard Clock
Pin 2: Mouse Data
Pin 4: Vcc +5V
Pin 6: Mouse Clock
4P USB TYPE B
Pin 2: Negative Data
Pin 3: Positive Data Pin 4: Ground
Pin 1: VCC +5V
5P S-VHS/S-VIDEO
Pin 1: Ground (Y)
Pin 3: Y - Intensity (luminance)
Pin 2: Ground (C)
Pin 4: C - Color (chrominance)
RCA/BNC 1P COMP. VIDEO
Ground Shield Pin 1: Video Signal
Note: The table above lists commonly-used RS-232 signals and pin
assignments, however Serial Communication for Hatteland Display
products may vary from product to product to support different
end user systems. Please check additional pin assignments section
in this manual for specific RS-232/RS-422/RS-485 pin assignments
for your exact product.
2P DC Power Input on unit
Amphenol FCC17 D-SUB MALE
+ -
Pin 2: Ground Pin 1: +24VDC
2P DC Power Input Housing
FCE17-E2W2SS-2N0
- +
Pin 2: Ground Pin 1: +24VDC
