Physical Overview - HT B17
21
IND100133-41

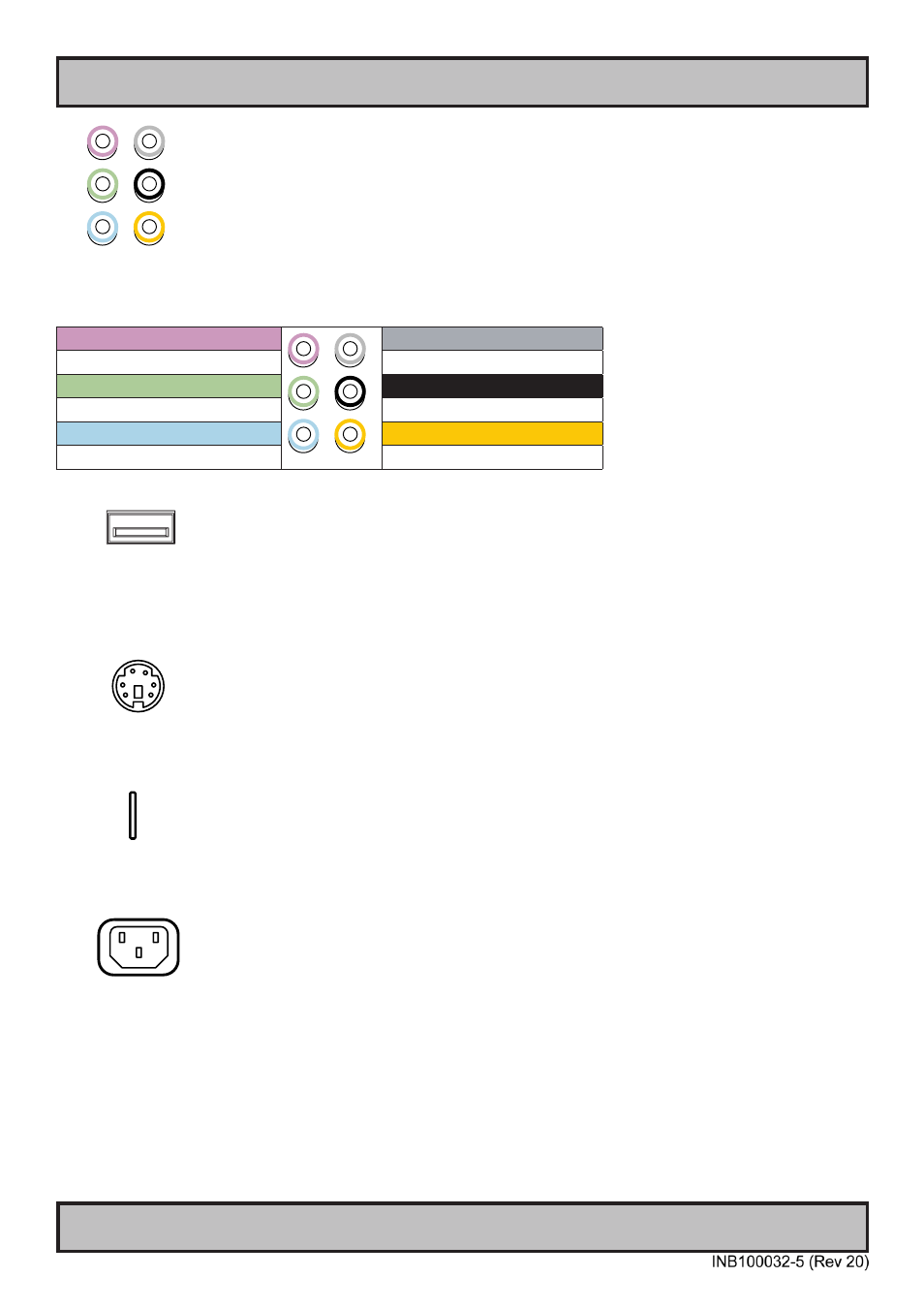

Audio INPUT/OUTPUT:
All connectors are 3.5” Jack Stereo. AC’97 audio support. 7.1 channel. HD Audio. It can be configured via the
operating system to act as 2-channel, 4-channel, 6-channel or 8-channel. Please review 3rd party driver software/
manual to configure the channel setup.
Light Pink / Mic In Gray / Center / LFE Out
Light Green / Line Out Black / Rear Surround Out
Light Blue / Line IN Orange / Side Surround Out
USB1,2,3,4 INPUT/OUTPUT:
Supports any USB1.1 (12Mbps) or USB2.0 (480Mbps) compliant peripherals. Drivers for most USB devices are
usually included in operating system or on separate installation CD’s delivered with Third Party products. USB 1.1
devices will operate in USB 1.1 mode (12 Mbps).
PS/2 Mouse and PS/2 Keyboard INPUTS:
Connect the PS/2 mouse cable to the PS/2 5P Connector (female) marked with MS.
Connect the PS/2 keyboard cable to the PS/2 5P Connector (female) marked with KB.
HDD LED:
The Power LED Indication will illuminate green when HDD is reading/writing. When there is no HDD activity the LED
will be off.
AC Power INPUT:
The internal AC power module supports both 115VAC/60Hz and 230/50Hz power input using a standard IEC power
housing and is part of the Multipower functionality for the unit.
