General Installation Recommendations
Installation
IND100210-1
Cables
Use only high quality shielded signal cables. For RGB/DVI cables use only cables with separate coax for Red, Green
and Blue.
Configuring DC power input housing connector
Note: Only applicable for certain models!
For installations that require DC power input, use the provided
2-pin DC Power Input housing with internal cable screw terminal.
1: Open the housing
2: Unmount the fasteners. (FIG 1)
3: Mount power cables to screw terminal (FIG 2). Note polarity!
4: Secure the cable tightly with fasteners (FIG 3, FIG 1)
5: Close the housing
Note: Please check polarity before connecting any cables
to the screw terminal.
Ferrites
On selected products, the ferrites prevent high frequency
electrical noise (radio frequency interference) from exiting or
entering the equipment. To verify if your product require this,
please see the “Physical Overview” chapter in this manual. The
ferrites are part of the contents of the package also specified in the
“Contents Of Package” chapter early in this manual. The ferrites
must be mounted on specific cables to fully comply with the
Type Approvals!
The ferrites should be mounted (clipped in place on the cable as
shown in illustration) as close as possible to the cable connector
on the rear side of the computer product. Open up the ferrite,
place the cable inside as shown in FIG1, and then gently close it
until a click can be heard (FIG2).

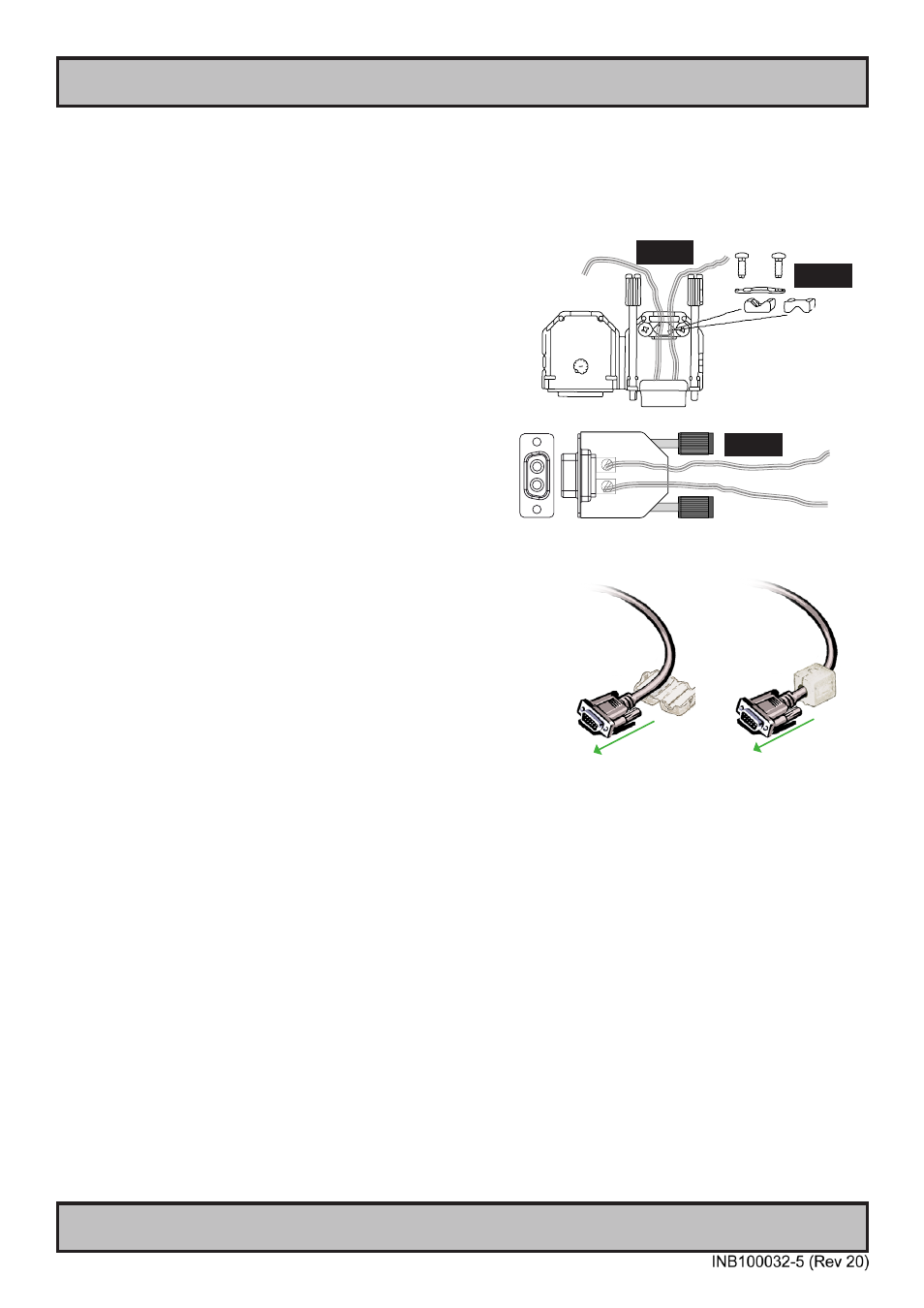

Screw terminal
FIG 1
FIG 2
FIG 3
+ -
+ -
+
-
FIG1
To computer
FIG2
To computer
