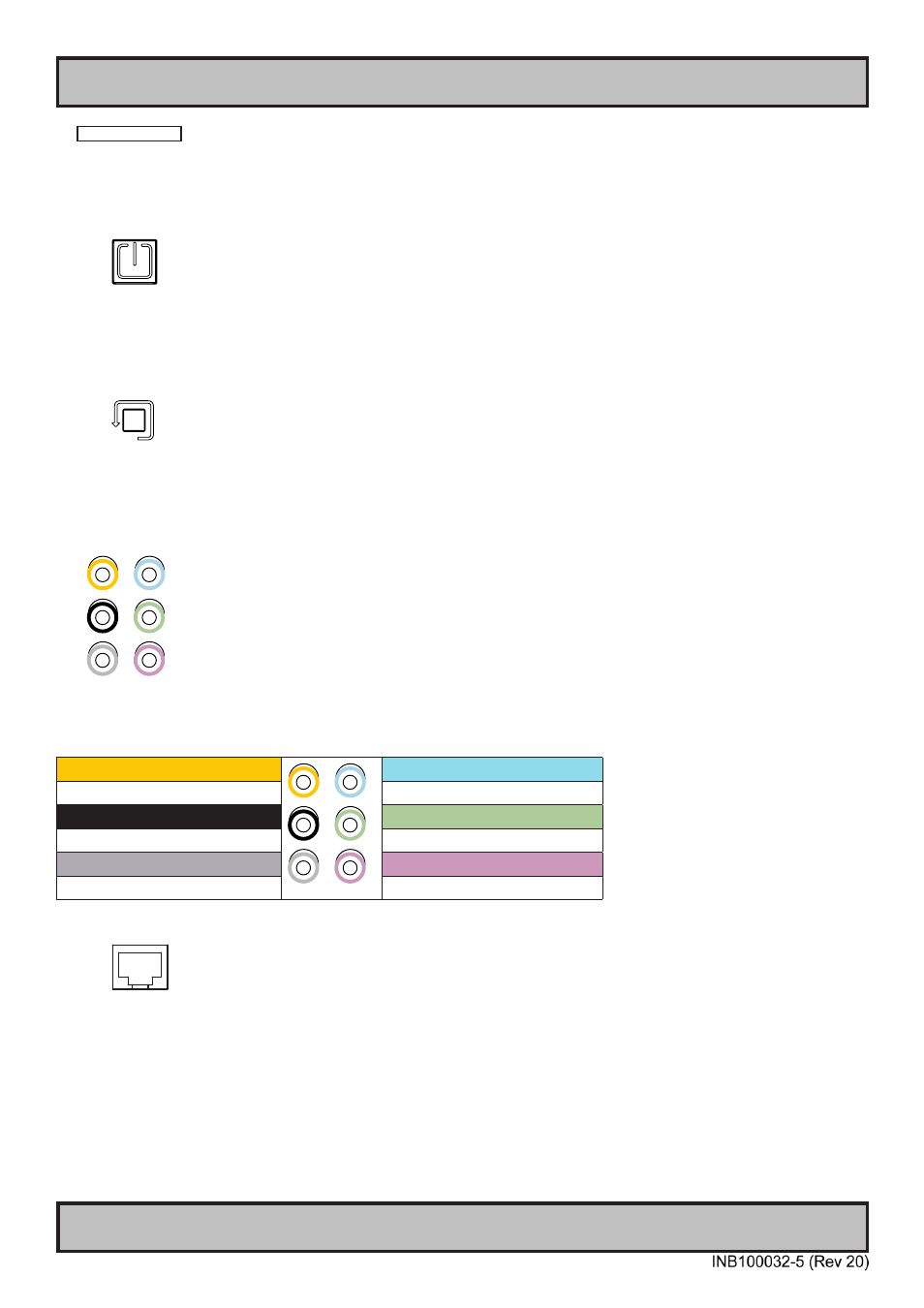

Physical Overview - HT B18
24
IND100133-40
2.5” Replaceable internal S-ATA SSD Hard Drive:
The B18 unit can use 1 x SSD, 2.5” as the main data storage device. The operating system and all other files will be
placed on this, normally visible as drive C: This device is normally factory installed option. The storage device can be
easily be upgraded or replaced by loosing the fasten screw and pull the slot out.
Power LED & Button:
To turn ON the computer, press down button and release it immediately. The Power LED indication riing will illuminate
green and the operating system will automatically boot. To turn OFF the computer, press down this button and hold it
for 4 seconds. The operating system may require additionally tasks to be performed before computer shuts down and
turns off the unit.
Reset Button: (Hard Reset)
To reset the computer in case of severe software failure, press this button. This reset button is a hard reset which
means the operating system will NOT be warned. Using this reset method may damage files and / or operating system
in worst case scenarios. Precaution should be taken when using this. To perform a safe software reset, press either
the power button, or use the operating system own reset functionality if possible.
Audio INPUT/OUTPUT:
All connectors are 3.5” Jack Stereo. AC’97 audio support. 7.1 channel. HD Audio. It can be configured via the
operating system to act as 2-channel, 4-channel, 6-channel or 8-channel. Please review 3rd party driver software/
manual to configure the channel setup.
Orange / Side Surround Out Light Blue / Line IN
Black / Rear Surround Out Light Green / Line Out
Gray / Center / LFE Out Light Pink / Mic In
Network #1 / #2 INPUT/OUTPUT:
Supports 10/100/1000Mbps Ethernet (GBLAN). Suitable for twisted pair cables CAT.5E. Make sure the network cable
connector ”clicks” into the RJ-45 connector.
