HI 98188
EC/TDS/NaCl/Resistivity Meter
2
1
3
4
5
7
9 8
6
13
11
10
12

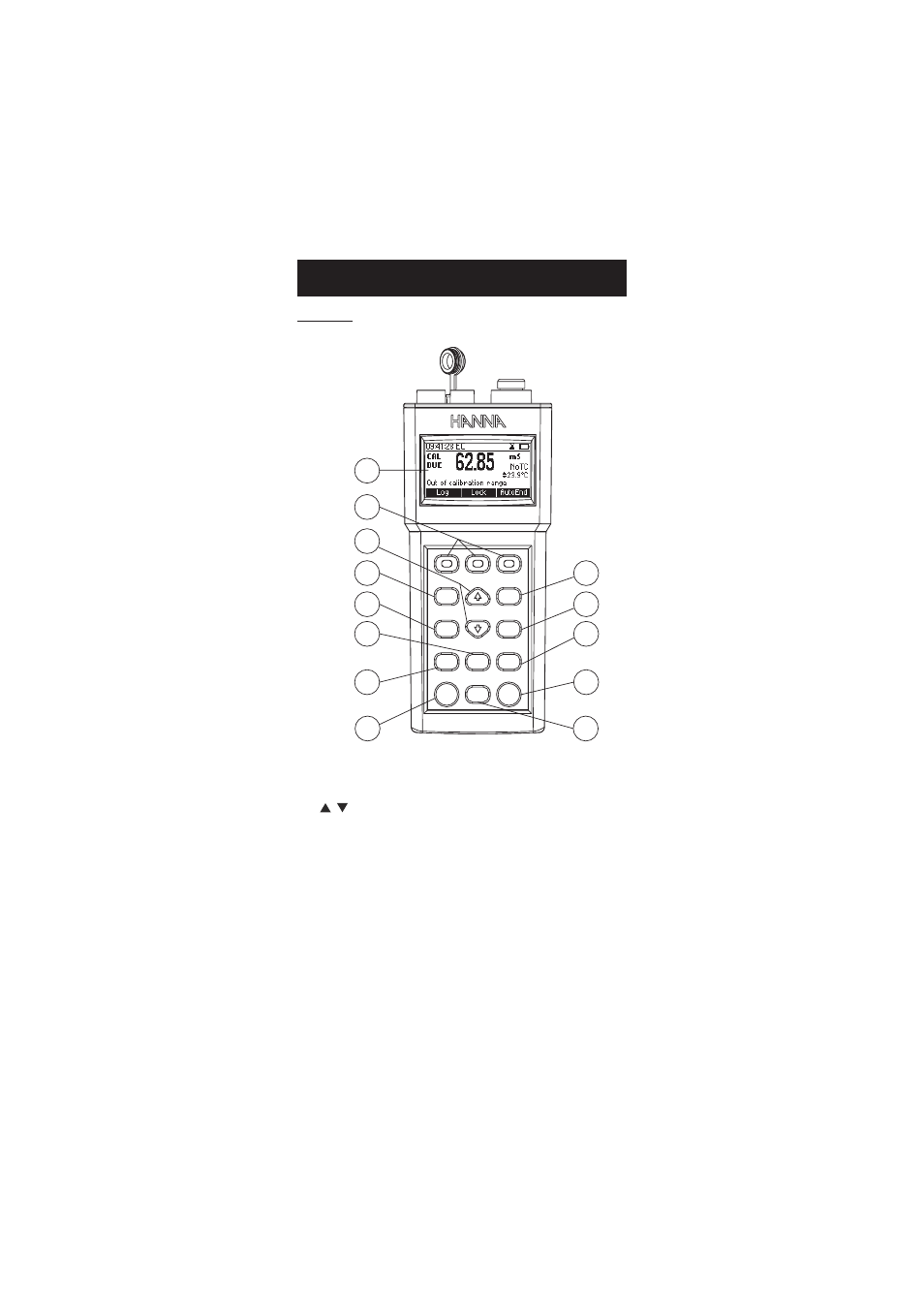

1) Liquid Crystal Display (LCD).
2) F1, F2, F3 functional keys.
3)
/ keys to manually increase/decrease the parameters or to scroll between
the parameter list.
4) ESC to leave current mode, exit calibration, setup, help. etc.
5) CAL key, to enter/exit calibration mode.
6) RCL key, to enter/exit view logged data mode.
7) SETUP key, to enter/exit SETUP mode.
8) ON/OFF key, to turn the instrument ON and OFF.
9) GLP key, to display Good Laboratory Practice information.
10) LIGHT key to toggle display backlighting.
11) MODE key to toggle between EC and USP or between Salinity ranges.
12) RANGE key, to switch between EC, Resistivity, TDS, NaCl.
13) Help key to enter/exit contextual help.
FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION
Front view Front view Front view Front view Front view
