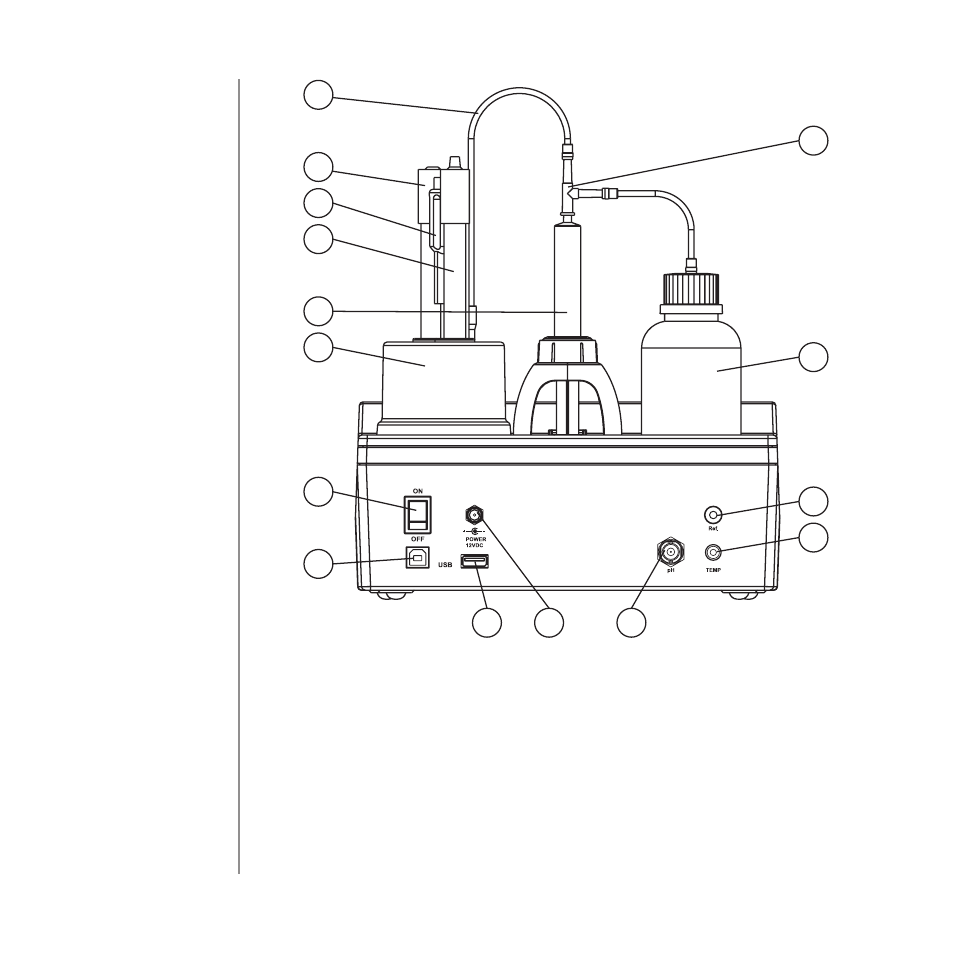

www. hannainst .com 10 Product Diagram
1. Dispensing tube
2. pH Electrode
3. Temperature probe
4. Reference electrode
5. Syringe
6. Electrode holder
7. Power switch
8. USB connector (PC interface)
9. USB connector
(Storage interface)
10. Power adapter
11. BNC electrode connector
12. Temperature connector
13. Reference connector
14. Titrant bottle
15. Dosing Pump Valve
Product
Diagram
Rear View
2
1
3
5
4
6
7
8
9 10
14
11
12
13
15
