8
FUNCTIONAL DESCRIPTION

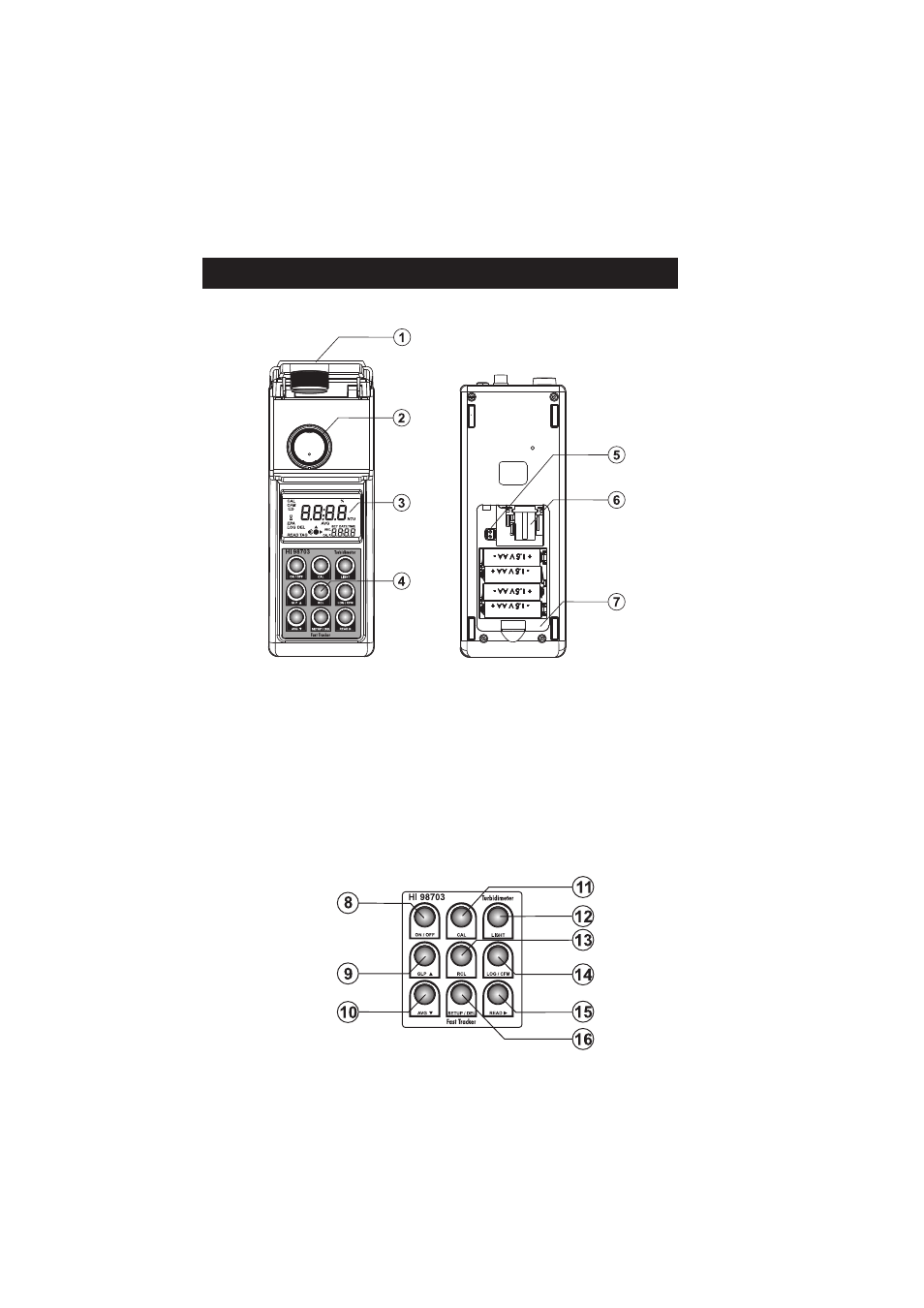

INSTRUMENT DESCRIPTION
1) Cuvette Lid. Close the cuvette lid prior to start a measurement.
2) Cuvette Holder. Insert the cuvette into the holder with the cuvette mark matching the case
mark.
3) Liquid Crystal Display (LCD). The LCD has backlight for better visibility in dark environments.
4) Keypad. Splash proof resistant.
5) Lamp connector. Connect the new lamp using a screwdriver during lamp changing procedure.
6) Lamp. Replacable tungsten lamp.
7) Battery Lid. Remove the battery lid in order to change batteries or replace the lamp.
KEYPAD DESCRIPTION
