2 When using the SURR.BACK/ZONE2 amplifier as the ZONE2.
• The SPEAKER OUT, LINE OUT and PRE OUT terminals can be used simultaneously in ZONE2.
• To use the ZONE2, turn on the ZONE2 button (remote control unit).
• The output of the ZONE2 SPEAKER OUT & SRB/Z2 RCA terminals can be adjusted with the remote control unit’s ZONE2 VOLUME + and – buttons.

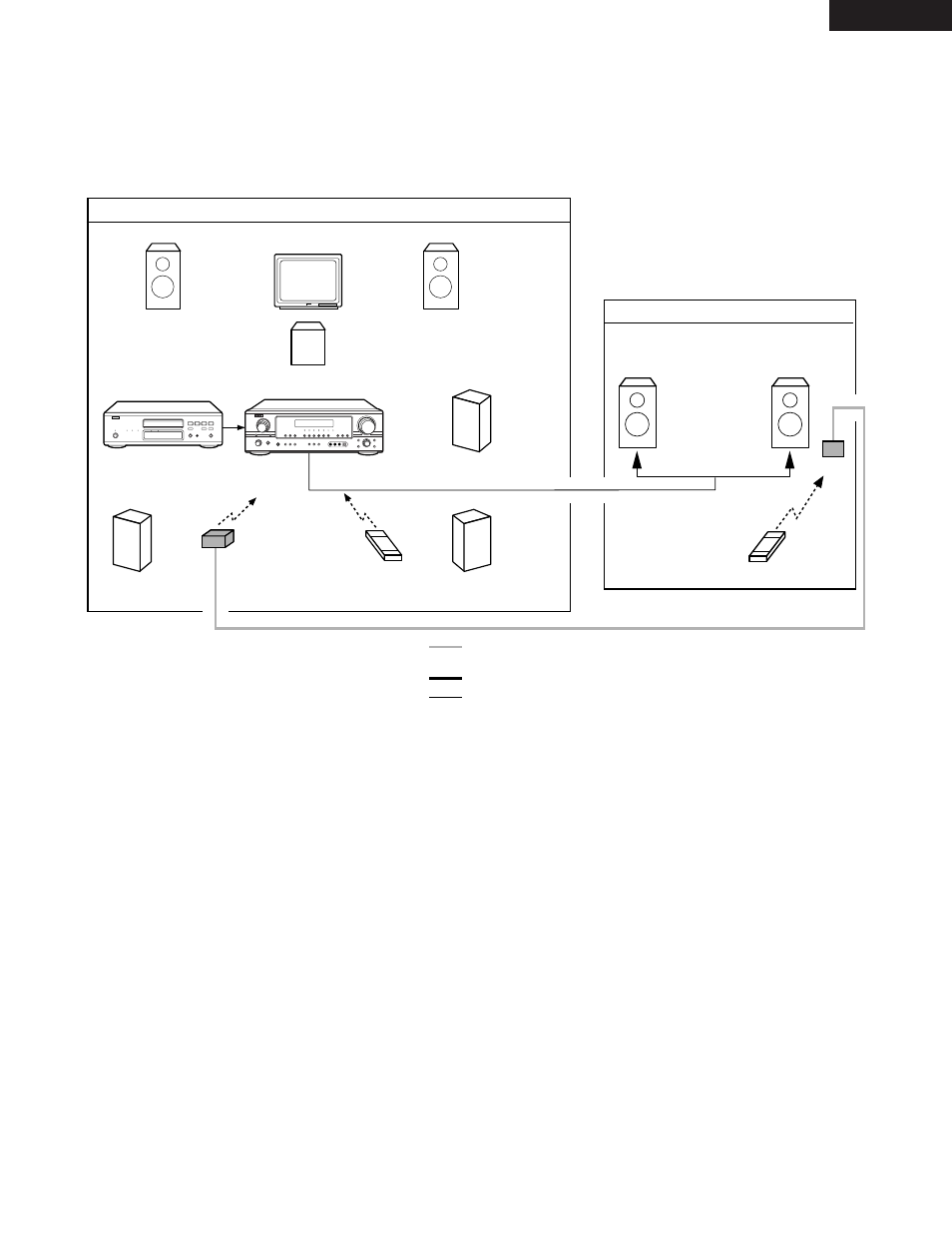

System configuration and connections example.
Using this unit’s internal amplifier as the ZONE2.
This unit DVD player
Input
RC-616
Monitor
MAIN ZONE 5.1-channel systems
ZONE2 SPEAKER OUT
SYSTEM REMOTE
CONTROL UNIT RC-978
C
FL FR
SL
SW
SR
B
RC-617
PROGRAMMABLE
REMOTE CONTROL UNIT
ZONE 2
ROOM-TO-ROOM REMOTE CONTROL SYSTEM
(separately sold) control line
MULTI SOURCE AUDIO signal cable
SPEAKER cable
* Refer to CONNECTIONS on pages 7 to 15.
