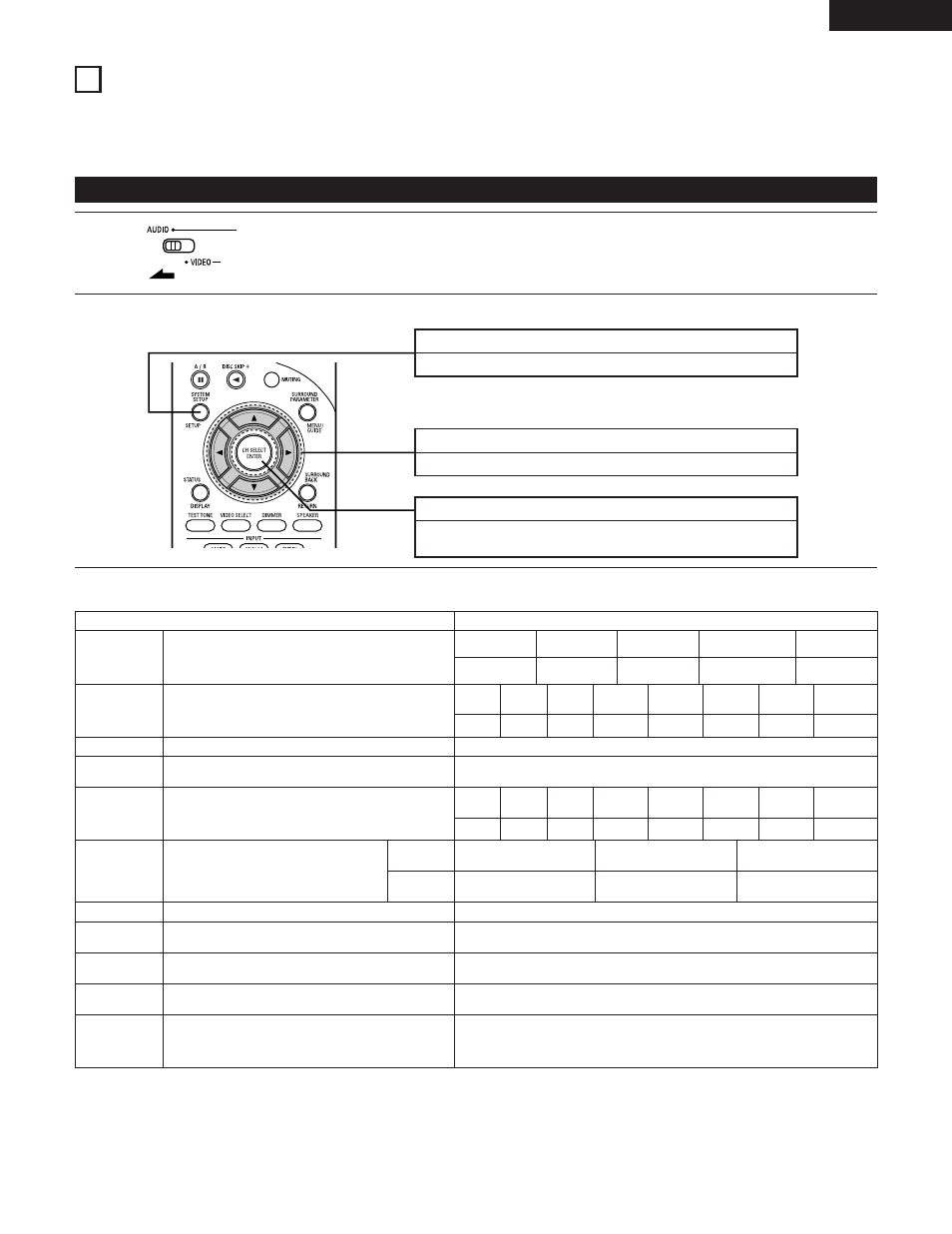

8 SETTING UP THE SYSTEM
• Once all connections with other AV components have been completed as described in “CONNECTIONS” (see pages 7 to 15), make the various
settings described below on the monitor screen using the AVR-1905/785’s on-screen display function.
These settings are required to set up the listening room’s AV system centered around the AVR-1905/785.
SYSTEM SETUP button
Press this to display the system setup on the display.
CURSOR buttons (•, ª, 0 , 1 )
Press this change what appears on the display.
ENTER button
Press this to switch the display.
Also use this button to complete the setting.
1 Set the slide switch to “AUDIO”.
2 Use the following buttons to set up the system:
• System setup items and default values (set upon shipment from the factory)
System setup Default settings
Use the following buttons to set up the system
Speaker
Configuration
Input the combination of speakers in your system and their
corresponding sizes (SMALL for regular speakers, LARGE for full-
size, full-range) to automatically set the composition of the signals
output from the speakers and the frequency response. Front Sp.
Large
Center Sp. Subwoofer Surround Sp.
Small Yes Small
Surround Back Sp.
Small / 2 spkrs
Subwoofer Mode This selects the subwoofer speaker for playing deep bass signals. Subwoofer mode = LFE (Normal)
Front L Center
Surround
Back L
12 ft 12 ft 10 ft
Delay Time
This parameter is for optimizing the timing with which the audio
signals are produced from the speakers and subwoofer according
to the listening position. Subwoofer
12 ft
Front R
12 ft
Surround
L
10 ft
Surround
R
10 ft
Surround
Back R
10 ft
Crossover
Frequency Set the frequency (Hz) below which the bass sound of the various
speakers is to be output from the subwoofer.
80 Hz
Test Tone
This adjusts the volume of the signals output from the speakers
and subwoofer for the different channels in order to obtain
optimum effects. Front L Center
Surround
Back L
0 dB 0 dB 0 dB
Subwoofer
0 dB
Front R
0 dB
Surround
L
0 dB
Surround
R
0 dB
Surround
Back R
0 dB
Digital In
Assignment This assigns the digital input jacks for the different
input sources.
Input source
Digital
Inputs
CD DVD/VDP TV/DBS
COAXIAL OPTICAL 1 OPTICAL 2
Video Input Mode Set the input signal to be output from the monitor output terminal. AUTO
Auto Surround
Mode
Auto surround mode function setting. Auto Surround Mode = ON
Ext. In SW Level Set the Ext. In Subwoofer channel playback level. Ext. In SW Level = +15 dB
Power AMP
Assignment Set this to switch the surround back channel’s power amplifier for
use for Zone 2.
Surround Back
On Screen
Display
This sets whether or not to display the on-screen display that
appears on the monitor screen when the controls on the remote
control unit or main unit are operated.
A setting to prevent flickering.
On Screen Display = ON /Mode 1
