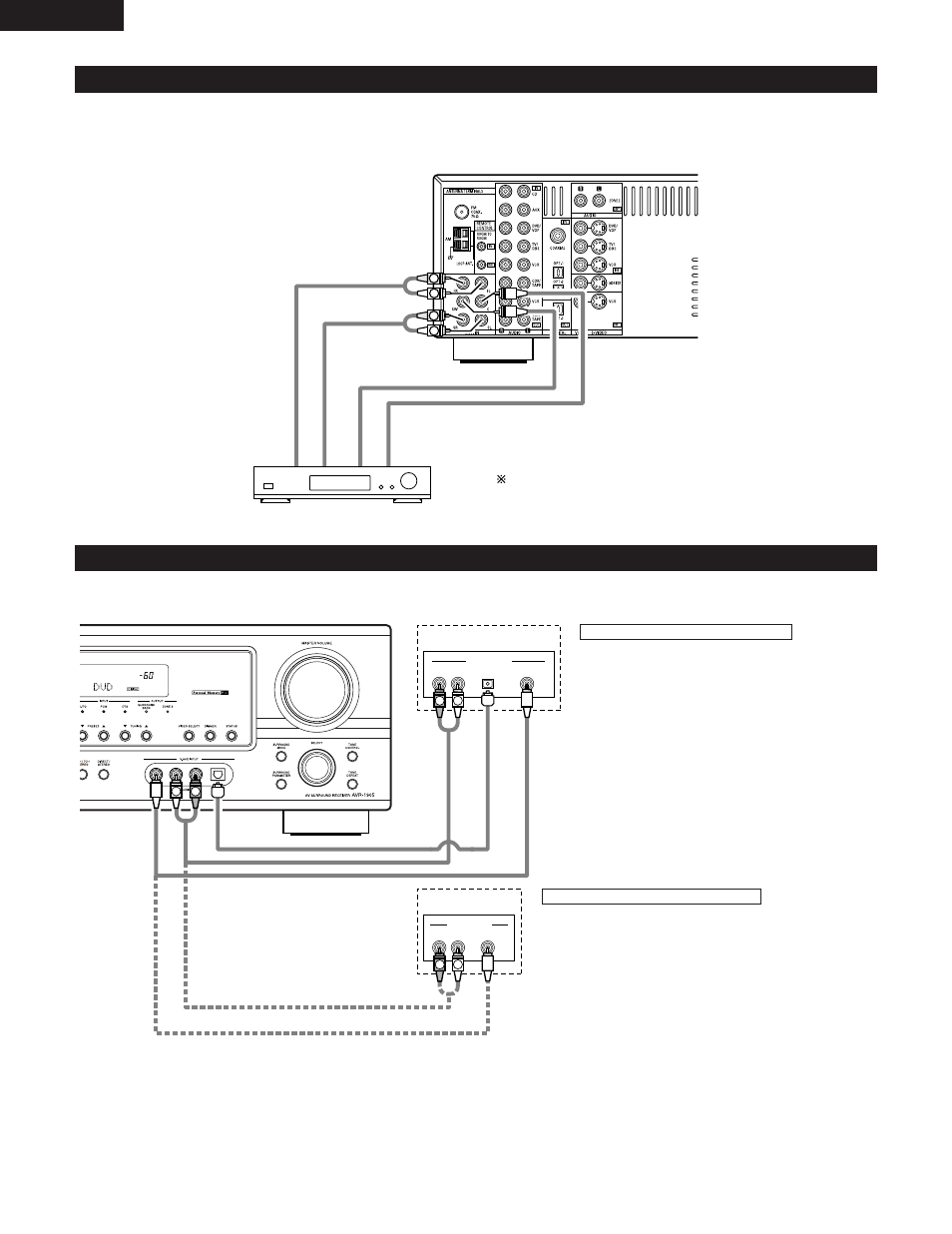

Connecting the external input (EXT. IN) jacks
• These jacks are for inputting multi-channel audio signals from an outboard decoder, or a component with a different type of multi-channel
decoder, such as a DVD Audio player, a multi-channel SACD player, or other future multi-channel sound format decoder.
• When making connections, also refer to the operating instructions of the other components.
Decoder with 6-channel
analog output
Front Surround Subwoofer Center
For instructions on playback using the external input (EXT. IN)
jacks, see page 39.
Connecting the video component equipped with V.AUX jacks
• To connect the video signal, connect using a 75 Ω/ohms video signal cable cord.
R VIDEO OUT OPTICAL L
OUTPUT
R VIDEO OUT L
OUTPUT
LINE OUT
DIGITAL OUT
VIDEO OUT
VIDEO OUT
LINE OUT
L R
L R
L R
Video game
Video camera
Connecting a Video game component
• Connect the Video game component’s output jacks to this
unit’s V. AUX INPUT jacks.
Connecting a video camera component
• Connect the video camera component’s output jacks to this unit’s
V. AUX INPUT jacks.
