VGA + Power Over UTP

2

1.0

General Description

This User’s Manual covers the Mini-Cat ® series of high-resolution PC or HDTV

component video transmission system.

The transmission systems are comprised of one Sender unit and one or more

Receiver units. They enable you to split and extend a PC VGA video or analog

Component HDTV signal up to 500 feet.

A unique feature of the system is that in most installations only one power

supply is enough to power the sender and the receiver(s). All sender units can

supply power to all the receivers connected to them via the Cat5 cable. If the

cable is longer than 330 feet or 100 m then the receiver may require a separate

supply. Conversely, in the case of 1-to-1 setups, the Receiver unit can also

supply power to the Sender (only when the Sender is a single channel).

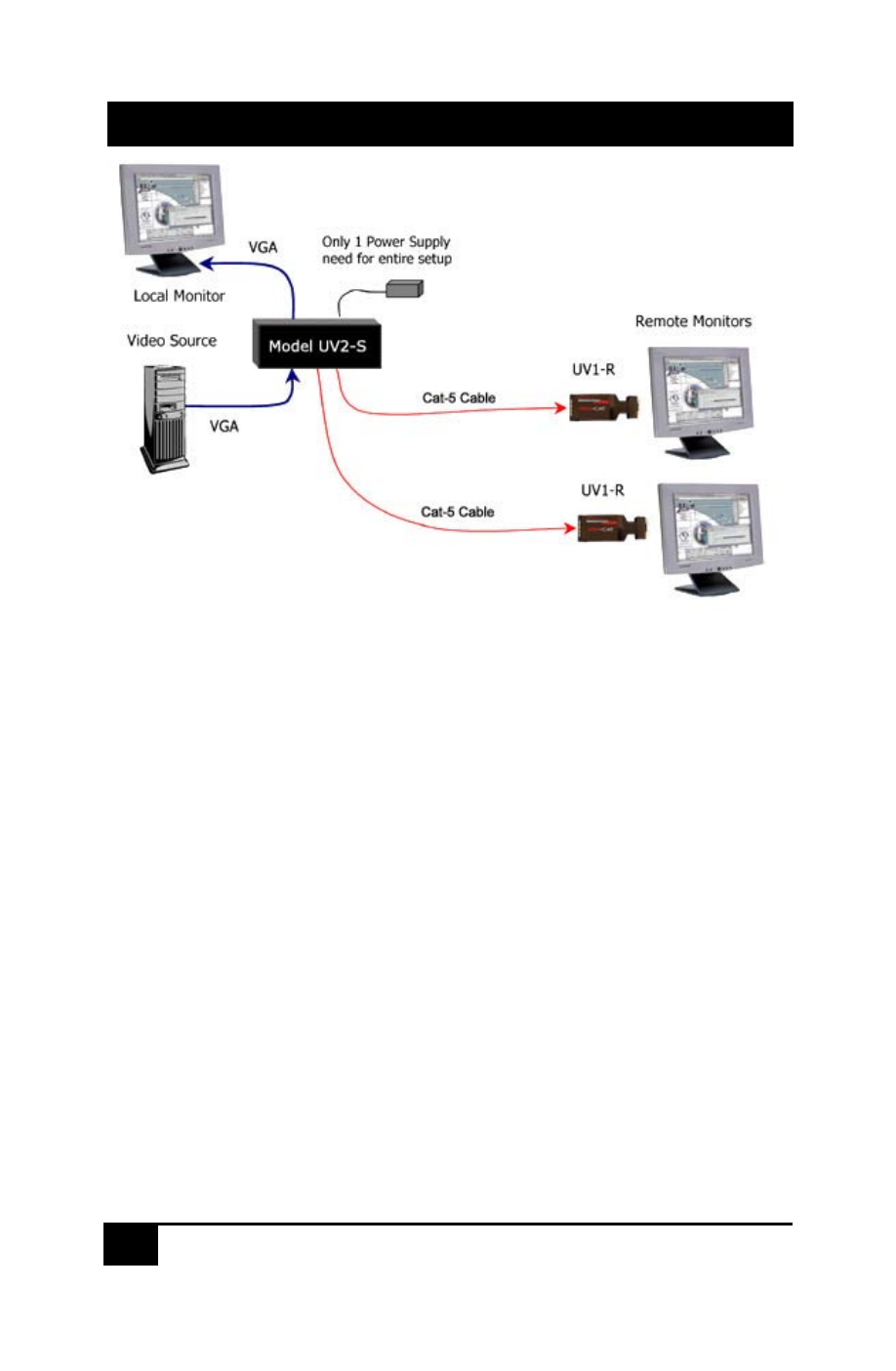

Figure 1 – Typical Connection Diagram

This manual is related to the following products:
