Hall Research UHBX-SW3-WP User Manual
Page 3
Hall Research
714.641.6607
Page 3
C
C
o
o
n
n
n
n
e
e
c
c
t
t
i
i
o
o
n
n
t
t
o
o
D
D
i
i
s
s
p
p
l
l
a
a
y
y
s
s
w
w
i
i
t
t
h
h
H
H
D
D
B
B
a
a
s
s
e
e
T
T
i
i
n
n
p
p
u
u
t
t

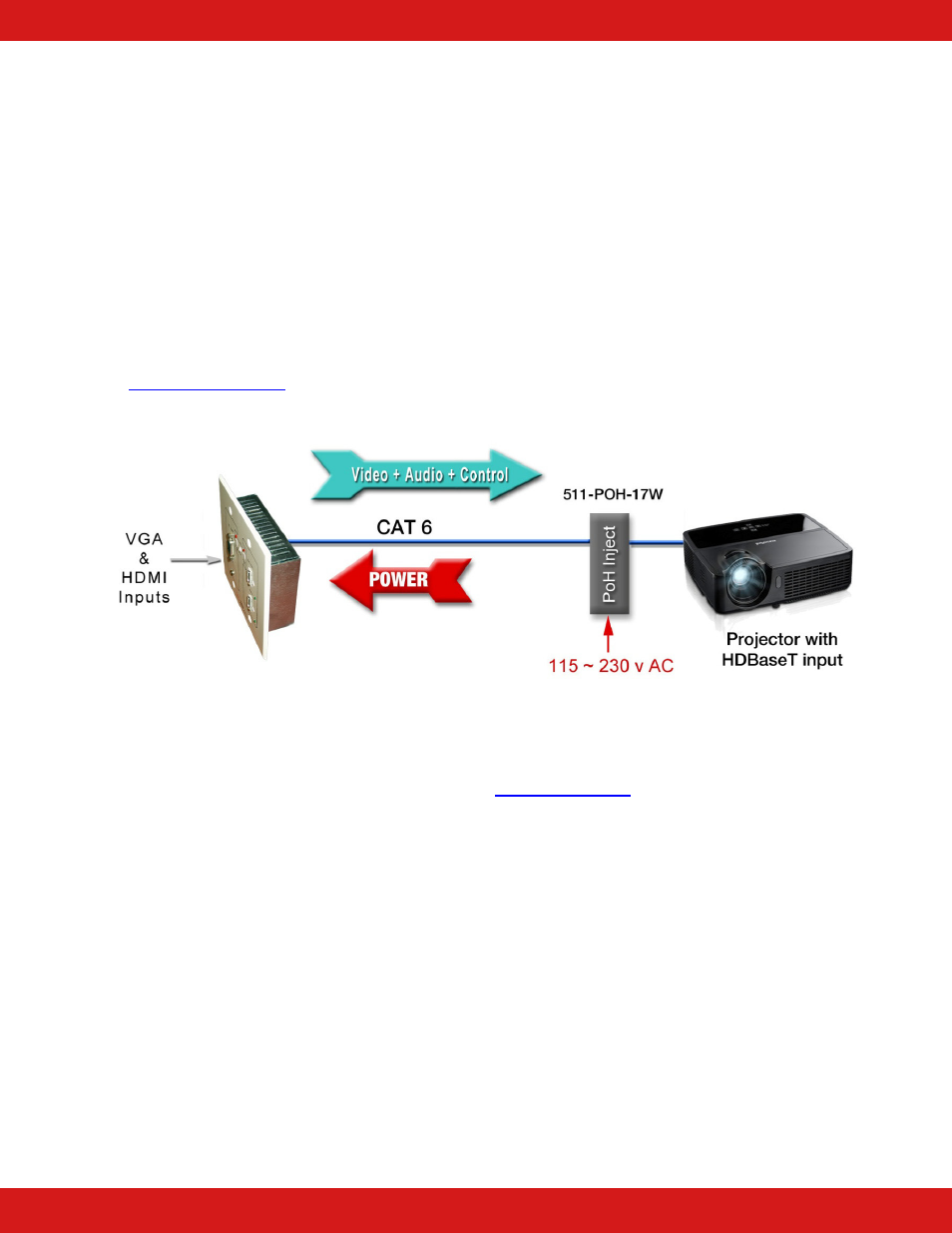

The Wall plate can be directly plugged in to displays or projectors with
native HDBaseT
®
inputs. In this configuration the wall plate should still be
able to send RS232 commands to the display through the HDBaseT
®
. Most
video projectors with HDBaseT
®
input support RS232 control via the same
link (check your display’s specifications for details). Since virtually no
display today provides PoH output to power up the wall plate, a power
inserter would be required as shown below (Hall Research PoH inserter
p/
.
C
C
o
o
n
n
n
n
e
e
c
c
t
t
i
i
o
o
n
n
t
t
o
o
R
R
e
e
c
c
e
e
i
i
v
v
e
e
r
r
When used with a receiver such as the
with RS232 and IR
output ports, the wall plate can be used to control the display on/off
function (Power Command). Currently the wall plate can be configured to
use one of two methods: RS232 or IR. Since the wall plate has an IR
detector, for simple installations, you can just point the IR remote to the
wall plate and use an IR emitter cable plugged to the receiver to control the
display (see IR Extension on page 7).
To configure the wall plate and enter RS232 or IR commands for your
display, the wall plate provides a mini-USB connector (on the bottom side)
and is shipped with a USB cable that can be connected to any Windows
®
PC. A free Windows
®
GUI software is available on the product's webpage.
