Hall Research 714.641.6607 Page 2
D D e e s s c c r r i i p p t t i i o o n n
The Model UHBX-SW3-WP is a compact 2-gang wall plate that offers 3
video inputs:
• Input 1 – HDMI or MHL (Mobile High-Definition Link )
• Input 2 – HDMI
• Input 3 – VGA or YPbPr with separate audio
The wall plate can manually or automatically switch between the various
video inputs, extend IR or issue user defined RS232 or IR commands to
control the On/Off state of the display.

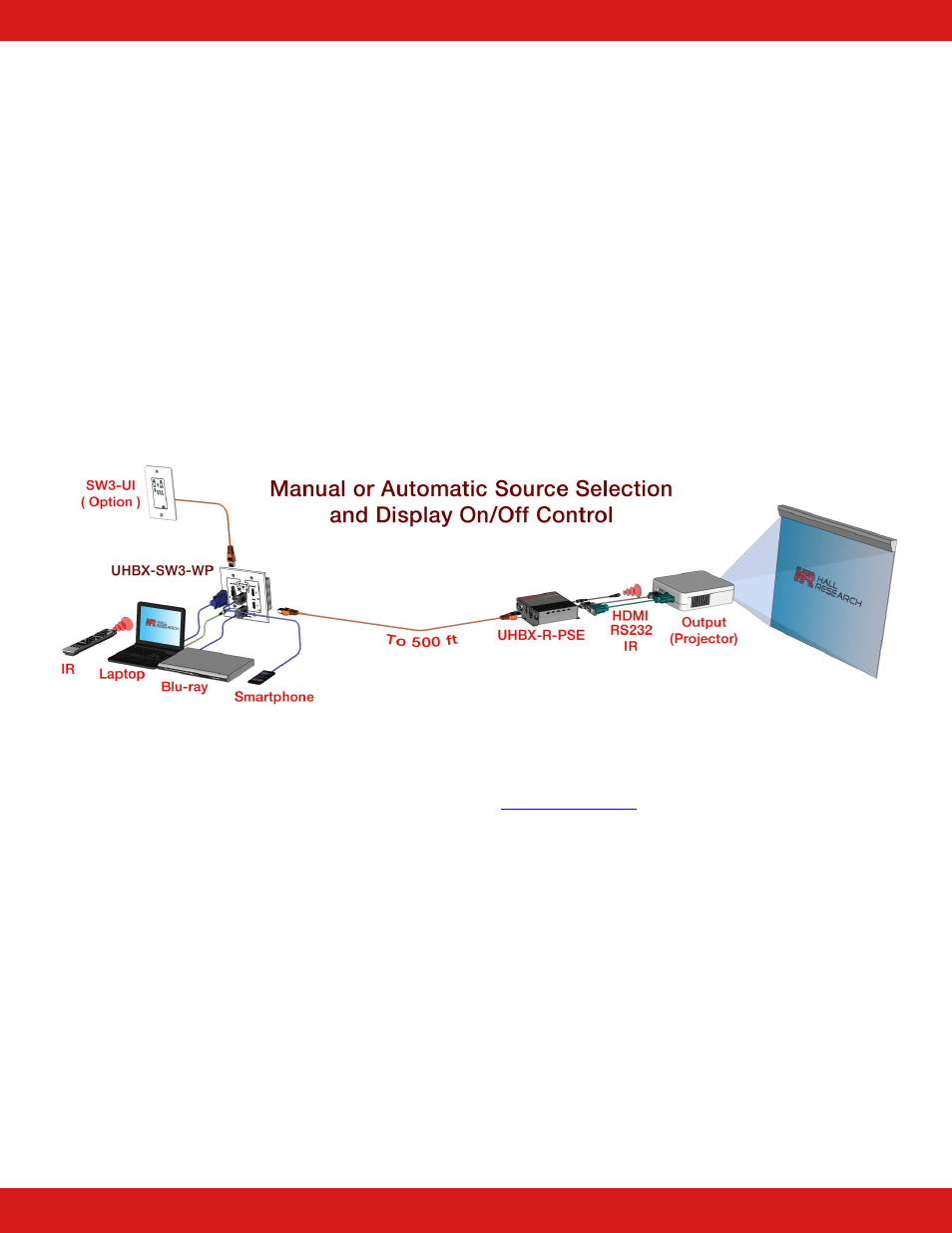

Using just a single twisted pair (Cat6) cable, the wall plate connects to a
compatible receiver, such as the model
UHBX-R-PSE .
The single Cat6 cable carries all AV and control signals (IR, RS232 and CEC)
from the wall plate to the receiver. The same Cat6 cable also delivers
power to the wall plate using Power-over-HDBaseT (PoH) standard as
defined by HDBaseT ® Alliance. There is no power input connection on the
wall plate, so a PoH compliant receiver that acts as PSE (Power Sourcing
Equipment) is required. If connecting to a receiver that does not provide
PoH, or directly connecting to a display with native HDBaseT
® input, a PoH
inserter would be required as described in the next section.
