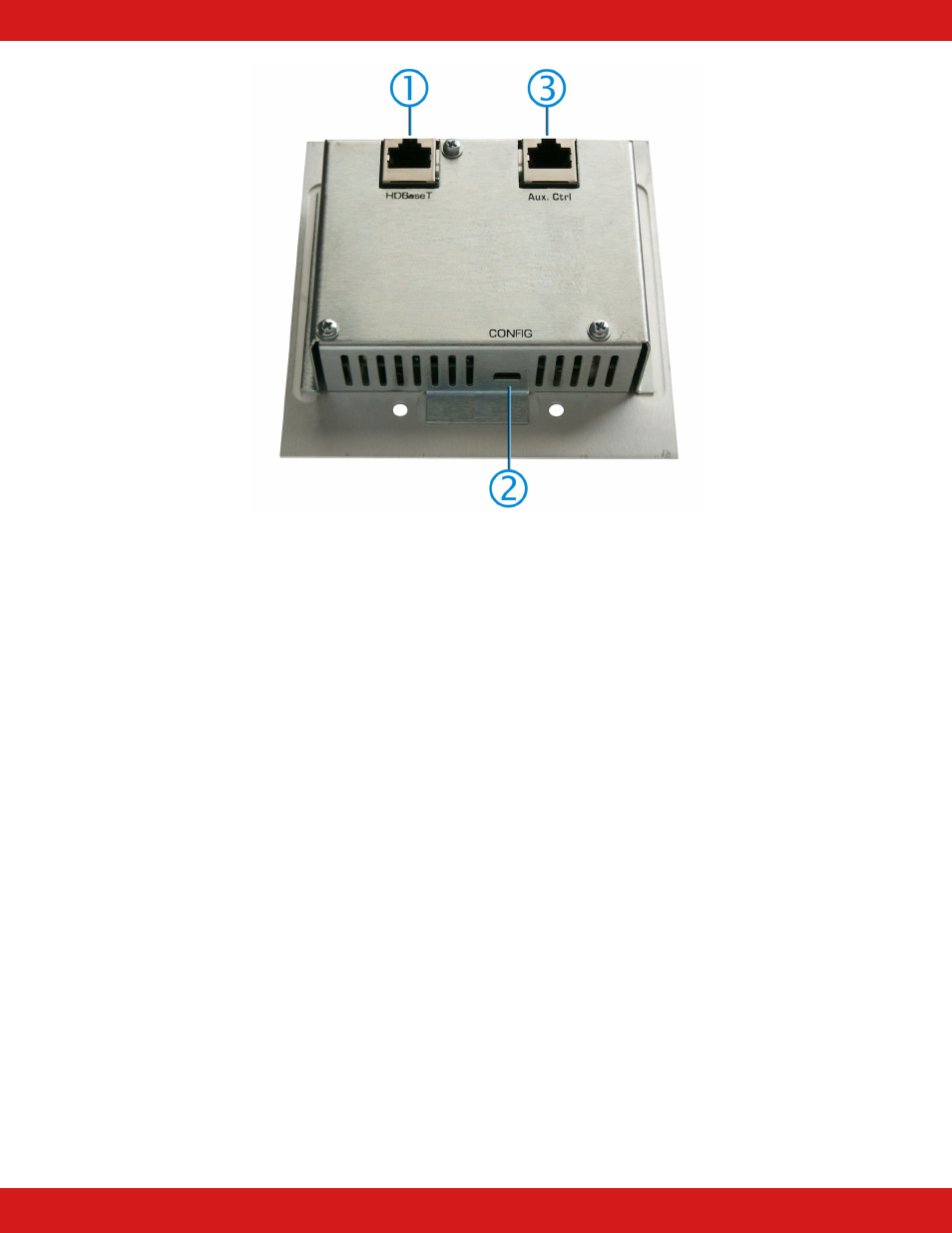

HDBaseT Output.
The wall plate requires PoH (power over HDBaseT), so the
receiver has to be a PSE (power sourcing equipment) type, or a
power inserter is needed.
2
Mini-USB port for connection to a PC. A free GUI is available that
can be used to configure the wall plate. A USB to mini-USB cable is
provided
3
For connection to SW3-UI and SW3-UI-VOL optional auxiliary
control panel (sold separately)
C
C
o
o
n
n
f
f
i
i
g
g
u
u
r
r
a
a
t
t
i
i
o
o
n
n
U
U
s
s
i
i
n
n
g
g
t
t
h
h
e
e
U
U
S
S
B
B
p
p
o
o
r
r
t
t
The wall plate is ready to use out of the box and in many cases no special
configuration is needed.
If the user desires to control the On/Off function of the display or to tweak
some of the parameters (such as prioritizing the input selection in Auto
input mode), a onetime set up is needed.
