Go Power! GP-SW1000 - Manual (Page 9)

GPSW-1000/2000/3000
___________________________________________________________
9
Solid Green: AC power OK
Flashing Green Power Saving Active
Fast Red Blink: Over voltage protection (OVP)
Slow Red Blink: Under voltage protection (UVP)
Intermittent Red Blink: Over temperature protection (OTP)
Solid Red:
Overload protection (OLP)
f. Ventilation Ports:
Do not obstruct, allow at least one inch for airflow
g. Frequency:
Typical North American setting is 60 Hz. Set dip switch S4 to “0” for
50Hz and “1” for 60 Hz
h. Power Save:
Puts inverter to sleep until a load is present

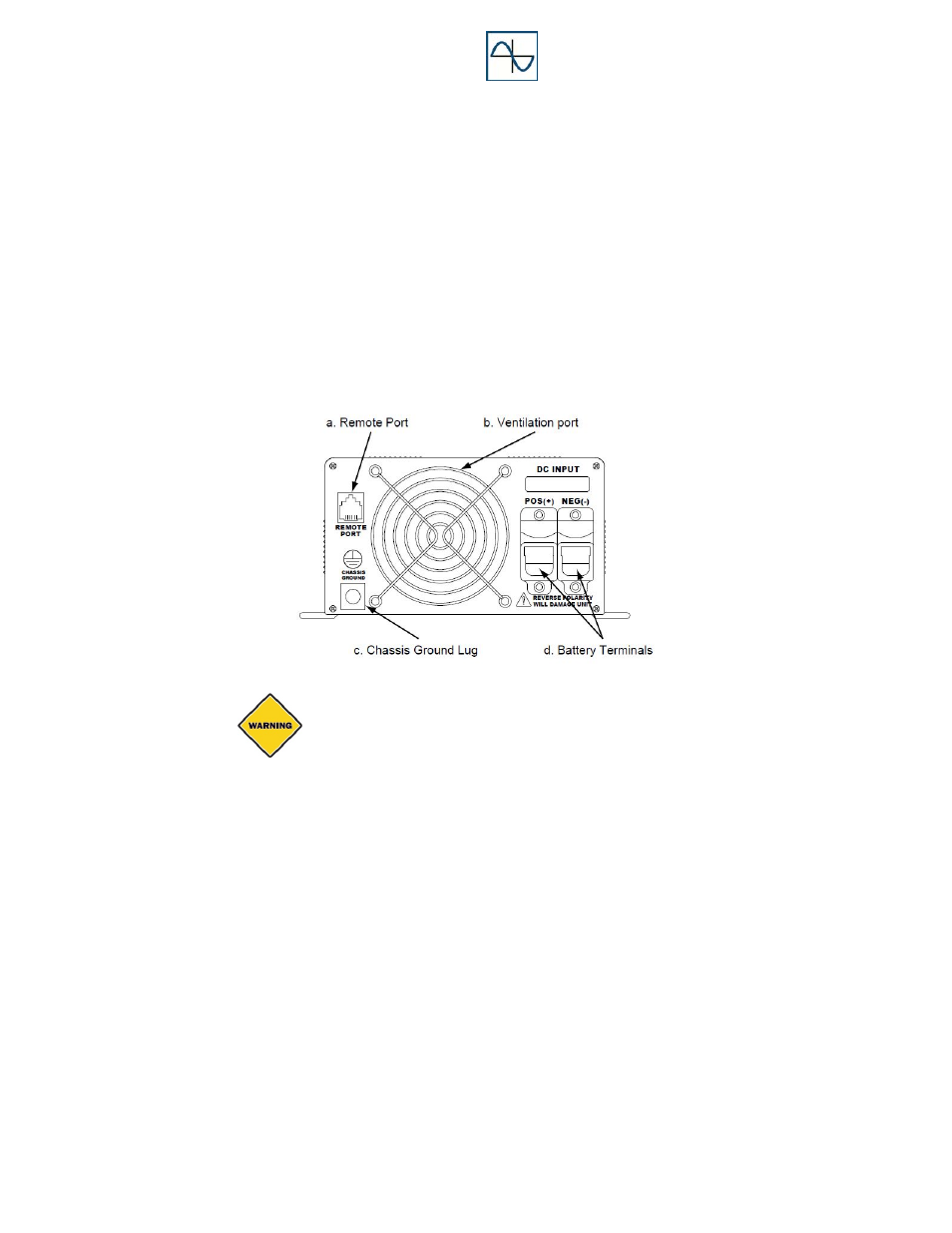

3.2.2 Rearview (GPSW-1000)
Operation of the inverter without a proper ground connection
may result in an electrical safety hazard.
a. Remote Port:
Allows the customer to use any 2 wire switch to turn the inverter ON
and OFF. Ex. Toggle switch or light switch.
b. Ventilation port:
Do not obstruct, allow at least one inch for airflow.
