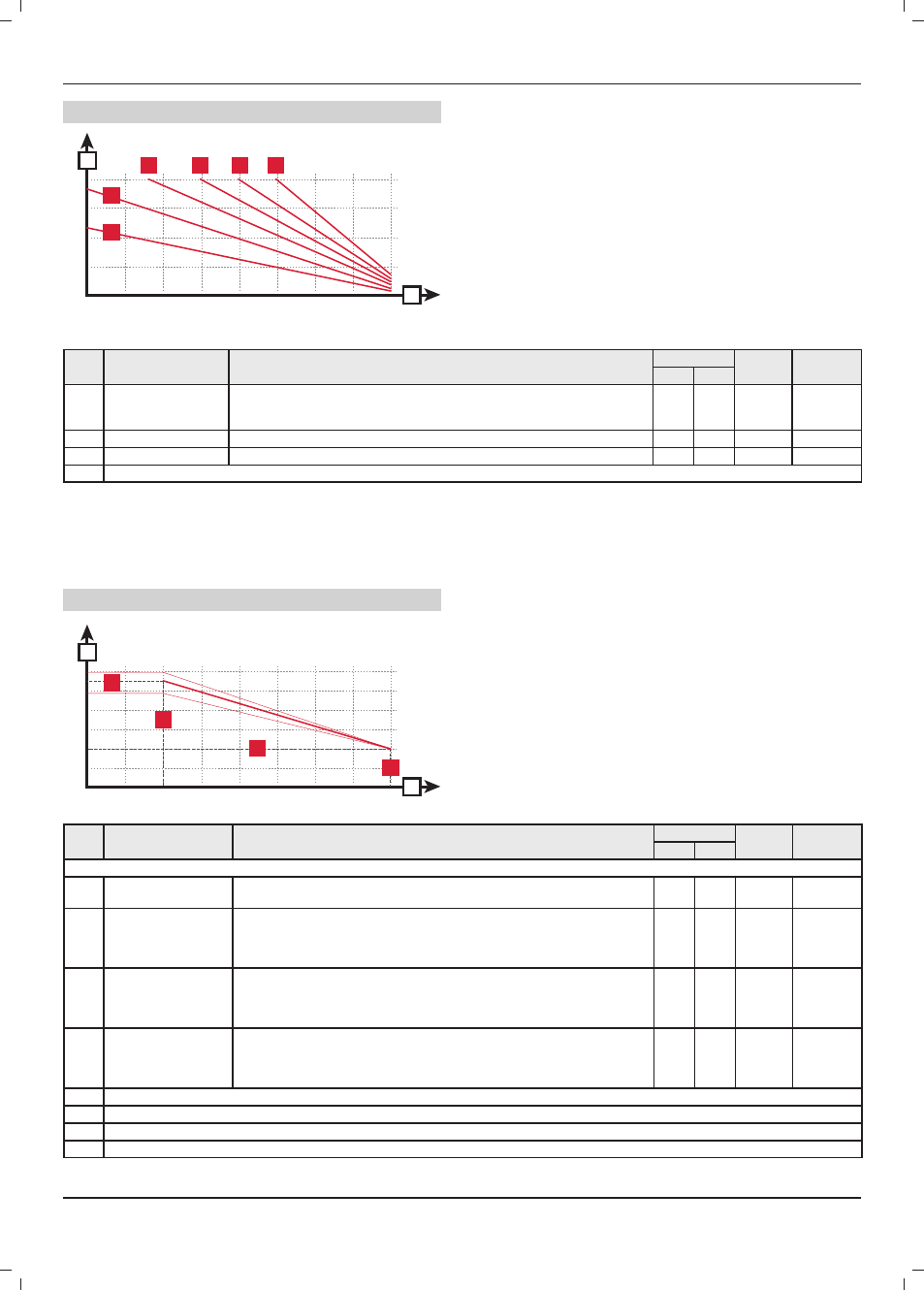

Predefi ned heating curves (code 112)
30
20
40
50
60
A
B
-20
-15 -10
-5
0
5
10
15
20
12
11
10
9
8
7
Key
7 Heating graph n°7
8 Heating graph n°8 (factory setting)
9 Heating graph n°9
10 Heating graph n°10
11 Heating graph n°11
12 Heating graph n°12
A Heating
fl ow temperature (°C)
B Exterior temperature (°C)
Code Function
Description
Setting
Factory
setting
Modifi able
parameter
Min
Max
112 Predefi ned heating
curves
0 = Personalised graph (see codes 118 to 121)
1 to 6 = Not used
7 to 12 = Pre-defi ned graphs (see above graphs)
1
12
8
Yes
114 ECO heating mode
Reduction off set for the installation's water temperature setting in heating mode.
1°C
20°C
5°C
Yes
116 ECO cooling mode
Increase off set for the installation's water temperature setting in cooling mode.
1°C
10°C
5°C
Yes
117
Not used
Personalised heating curves (codes 118, 119, 120, 121)
-20
-15 -10
-5
0
5
10
15
20
A
B
0
10
20
30
40
50
60
2
3
1
4
Key
1 Code
118
2 Code
119
3 Code
120
4 Code
121
A Heating
fl ow temperature (°C)
B Exterior temperature (°C)
Code Function
Description
Setting
Factory
setting
Modifi able
parameter
Min
Max
Setting codes 118 to 121 is necessary only if code 112 = 0.
118 Minimum reference
exterior temperature
Choose the minimum reference exterior temperature for the region where the
heat pump is installed.
-20°C 10°C
-7°C
Yes
119
Exterior temperature
from which the heat
pump stops in heating
mode
When the exterior temperature reaches the input value, heat pump stops.
Choose the exterior temperature from which the heat pump must stop in heating
mode.
10°C 30°C
20°C
Yes
120
Minimum temperature
of water in the
installation in heating
mode
Choose the minimum temperature of the water in the installation in heating
mode.
20°C 60°C
40°C
Yes
121
Maximum temperature
of the water in the
installation in heating
mode
Choose the maximum temperature of the water in the installation in heating
mode.
20°C 60°C
55°C
Yes
122
Not used
123
Not used
124
Not used
125
Not used
