FeiYu Tech FY-DOS User Manual
Page 3
Guilin Feiyu Electronic Technology Co., Ltd
Guilin Feiyu Electronic Technology Co., Ltd http://www.feiyudz.cn E-mail: [email protected] Page 3
Current draw
: 50mA (5V);
Size
: 47 x 30 x 11 mm;
Weight (excluding wires)
: 25g;
Temperature range
: -25 ° C ~ +70 ° C;
Maximum rate of rotation
: ≤ 2000 °/s
GPS module
Input voltage
: 3.0 ~ 3.3 Volt;
Current draw
: 60mA (3.3V);
Size
: 32 x32x 10 mm;
Weight (excluding wires)
: 22g;
Temperature range
: -25 ° C ~ +70 ° C;
The DoS can be installed in the following aircraft
1, Normal / Traditional fixed-wing planes;
2, Delta-winged plane with rudder;
3, Delta-winged plane without rudder;
4, Plane without aileron;
5, V-tail plane with aileron;
6, V-tail plane without aileron;
7, Any other configuration, please e-mail us for enquiry:
The DoS has been tested to work with the following RC systems
●Robbe-Futaba PPM / PCM 1024 / PCM G3 mode, 2.4 GHz systems
；
●Graupner/JR PPM 8, PPM 12, SPCM mode
；
●MPX PPM8, PPM 12 with UNI mode
●Any remote control system using the standard of 1.5 ms neutral value.

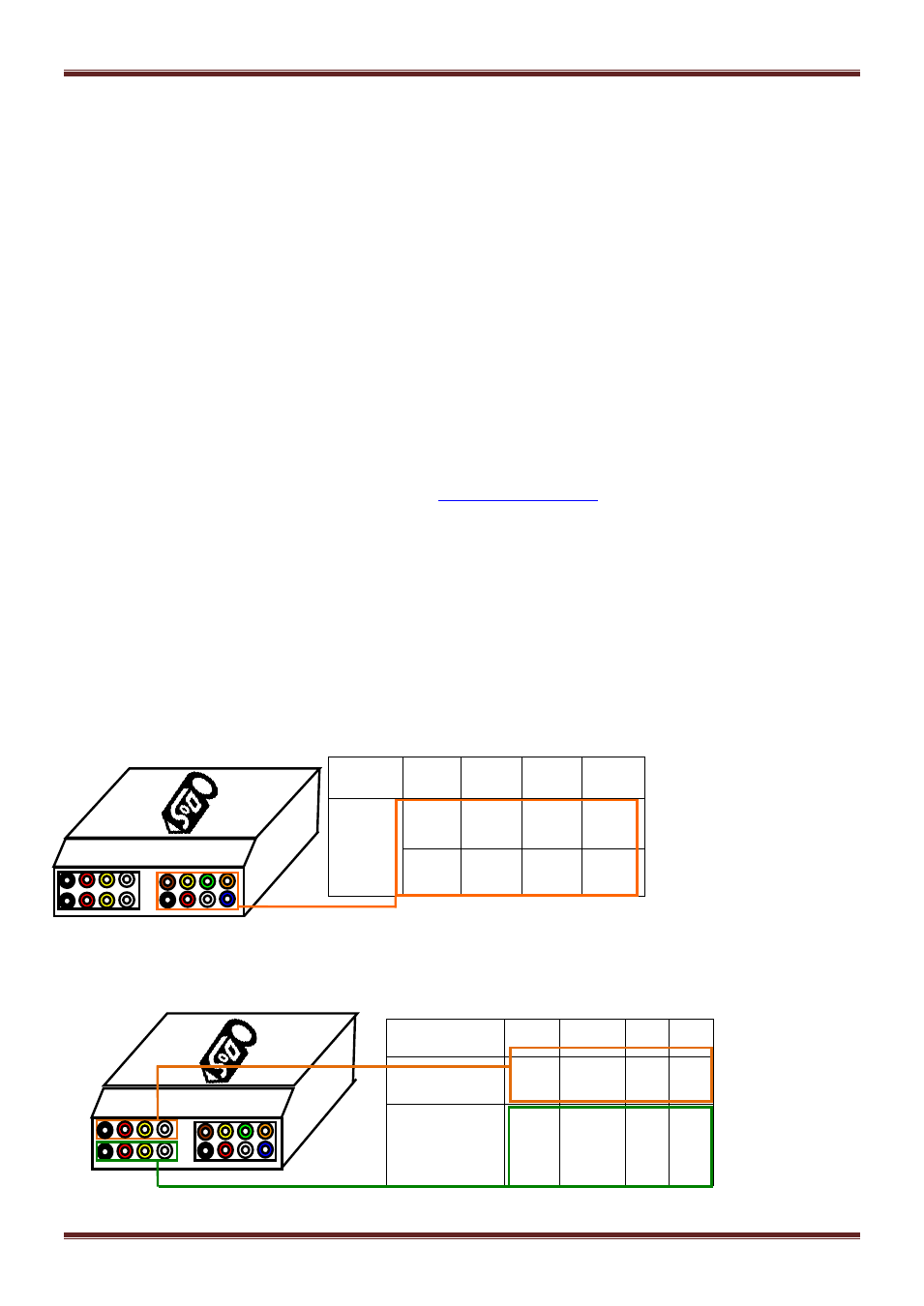

5. DoS interface
Remote receiver input interface
GPS and UART interface
No.
1
2
3
4
RC
receiver
interface
SW1
RUD
Servo
THR
Servo
ELE
Servo
GND
Power
+5V
AIL
Servo
SW2
No.
1
2
3
4
GPS interface
GND
Power
+3V
TX0
RX0
Data radio
interface/para
meter setting
interface
GND
Power
+5V
TX1
RX1
