●If the servo movement is incorrect, you can choose one of these ways to change the control movement as follows:
1)Adjust it by using DoS setup software through a USB cable.
2)Roll elevator stick on either side of the maximum position of the remote control. On SW1 switch ABM to 3D mode 6
times, time interval has to be less than 3 seconds as follows:
ABM→3DMode→ABM→3DMode→ABM→3DMode→ABM→3DMode→ABM→3D Mode→ABM→3D Mode,
there is a yellow lamp will light up once, it‟s done.
D. RUDDER CONTROL SURFACE MOVEMENT CHECK

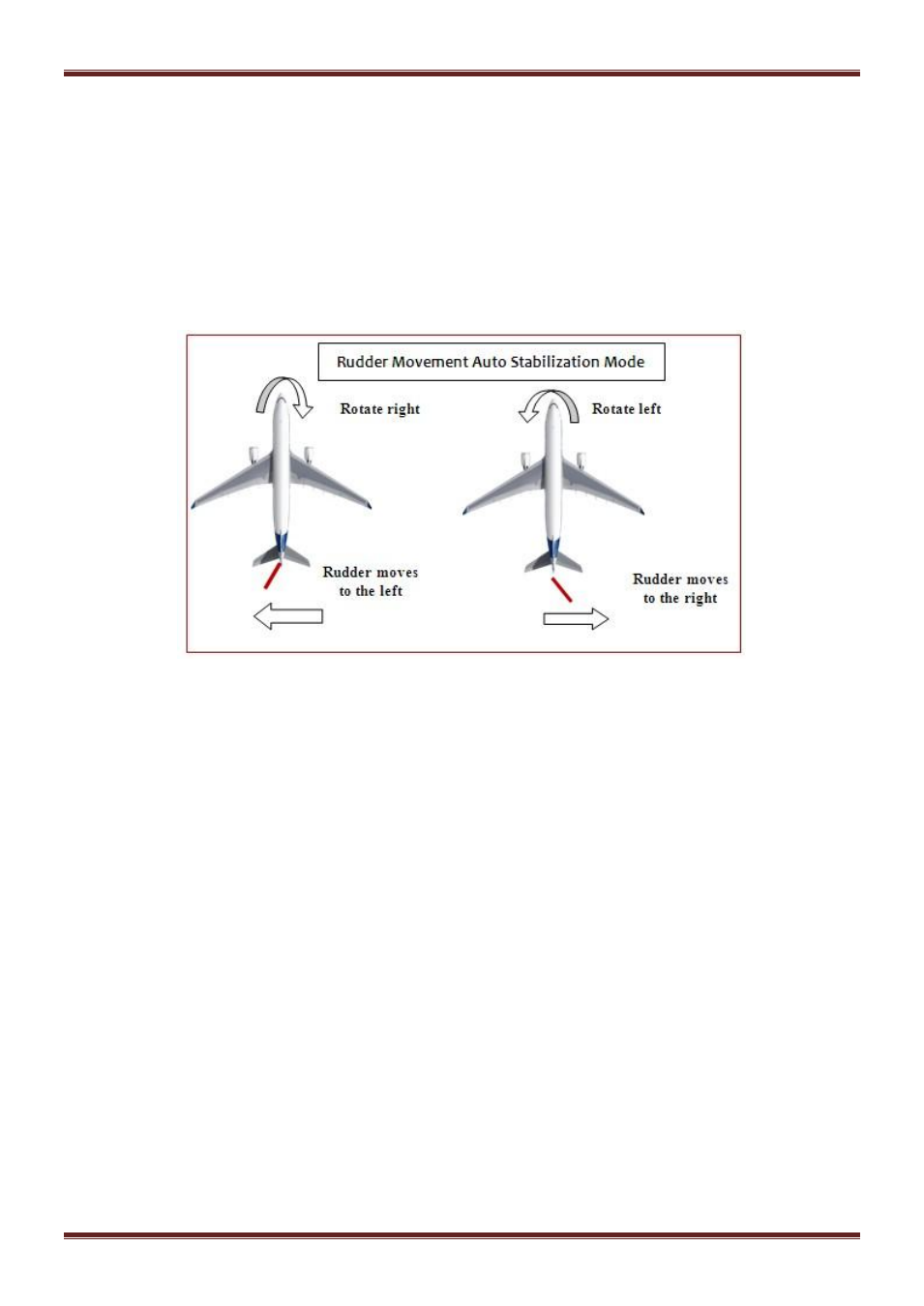

●Turn your plane clockwise or counter clockwise to see the rudder movement below:
●If the servo movement is incorrect, you can choose one of these ways to change the control movement as follows:
1)Adjust it by using DoS setup software through a USB cable.
2)Roll rudder stick on either side of the maximum position of the remote control. On SW1 switch ABM to 3D mode 6
times, time interval has to be less than 3 seconds as follows:
ABM→3DMode→ABM→3DMode→ABM→3DMode→ABM→3DMode→ABM→3D Mode→ABM→3D Mode,
there is a yellow lamp will light up once, it‟s done.
E. ESC/ THROTTLE CONTROL SURFACE MOVEMENT CHECK
ESC/throttle can be set by DoS setting software or RC controller. First, adjust throttle‟s control movement on RC
controller, roll throttle stick on lowest position, then on SW1, switch ABM to 3D mode 6 times, time interval has to be
less than 3 seconds as follows:
ABM→3DMode→ABM→3DMode→ABM→3DMode→ABM→3DMode→ABM→3D Mode→ABM→3D Mode,
there is a yellow lamp will light up once, it‟s done.
15. Gyroscope Reset
If the following conditions occur, the DoS initialization is recommended:
(1) The device has not been used for a long time.
(2) There is a change in environmental temperature of over 30 degrees since last flight.
(3) The purple LED flashes continuously even when the DoS remains stationary and you never activate the motor.
Note:
●Carry out this re-setting procedure only if the above occur. We do not recommend regular re-setting. It is not necessary
and not recommended.
●The stabilizer unit does not need to be in a horizontal position during initialization. However, you must ensure there is
no vibration during this process. If suspect shaking occurred during the procedure, just restart the initialization / resetting
process.
