Guilin Feiyu Electronic Technology Co., Ltd http://www.feiyudz.cn E-mail: [email protected] Page 5
FY-DoS&FY-41AP GPS module interface
The GPS pin interface consist of: GND, +5V , RX0. The characteristics are:
Baud rate: 38400
Data bits: 8
Stop Bits: 1
Parity: None
Interface Features: TTL level
This port is use for GPS Receiver. The GPS data protocol is standard NEMA0183.

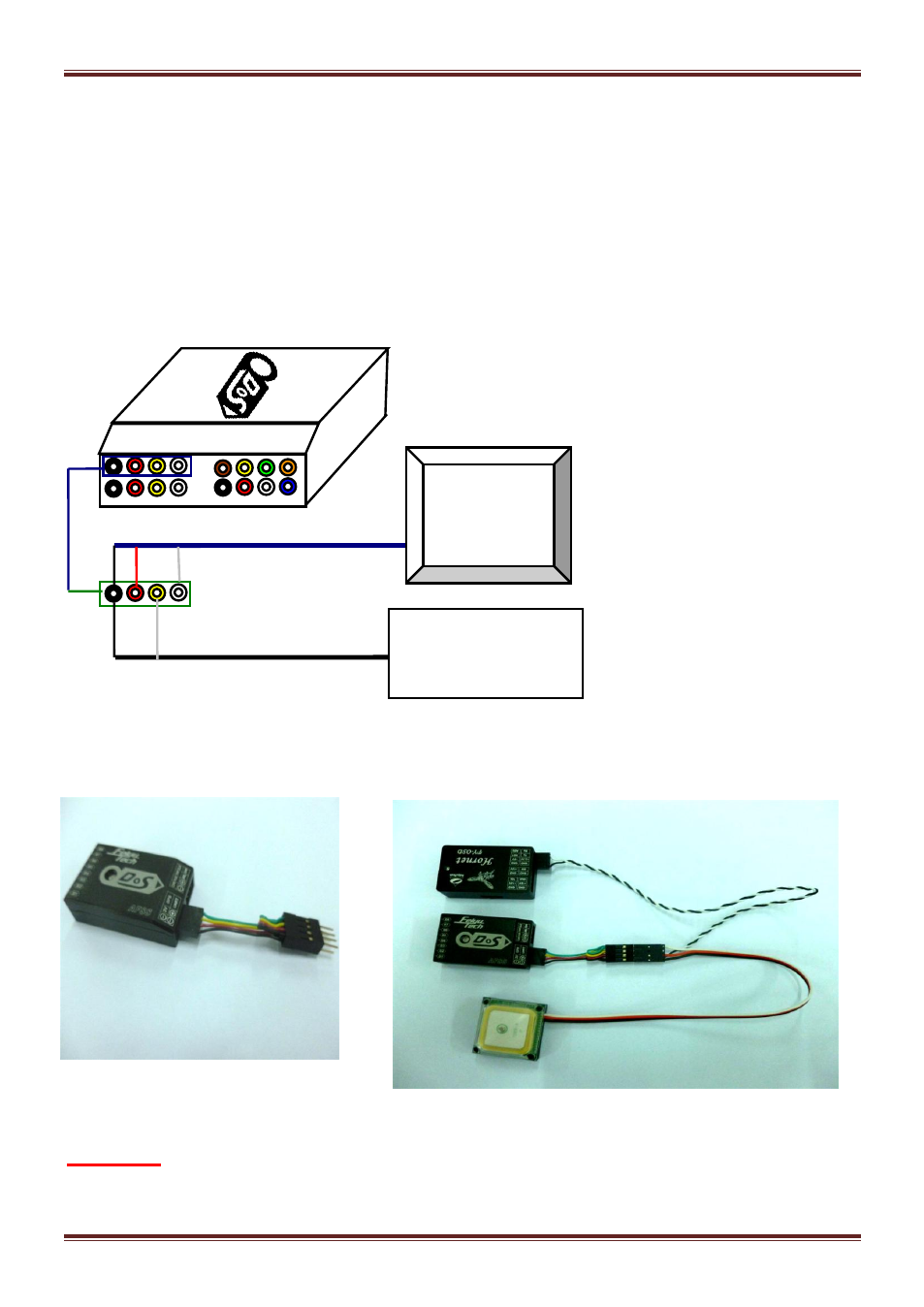

Hornet - OSD (V1.6) and DoS connection graph:
You need a 4p Y line, the Hornet - OSD data line and GPS module connected to the
DoS&41AP’s GPS interface. Connection diagram is as follows:
Physical connection diagram:
Put the 4P Y line inserted into DoS&41AP’s GPS port
Attention: FY-41AP has integrated OSD video overlay system, so you do not need to
connect external video overlay module. FY-41AP-OSD instructions reference<< FY-41AP
manual>>22 points.
GPS module
Hornet OSD module
(V1.16)
(V1.6 版本）
OSD data line
