41AP module
Input voltage： 4.0 ~ 6.0 V;
Current draw： ;
Size： ;
Weight (excluding wires)： ;
Temperature range： -25 ° C ~ +70 ° C;
Maximum rate of rotation： ≤ 2000 °/s；

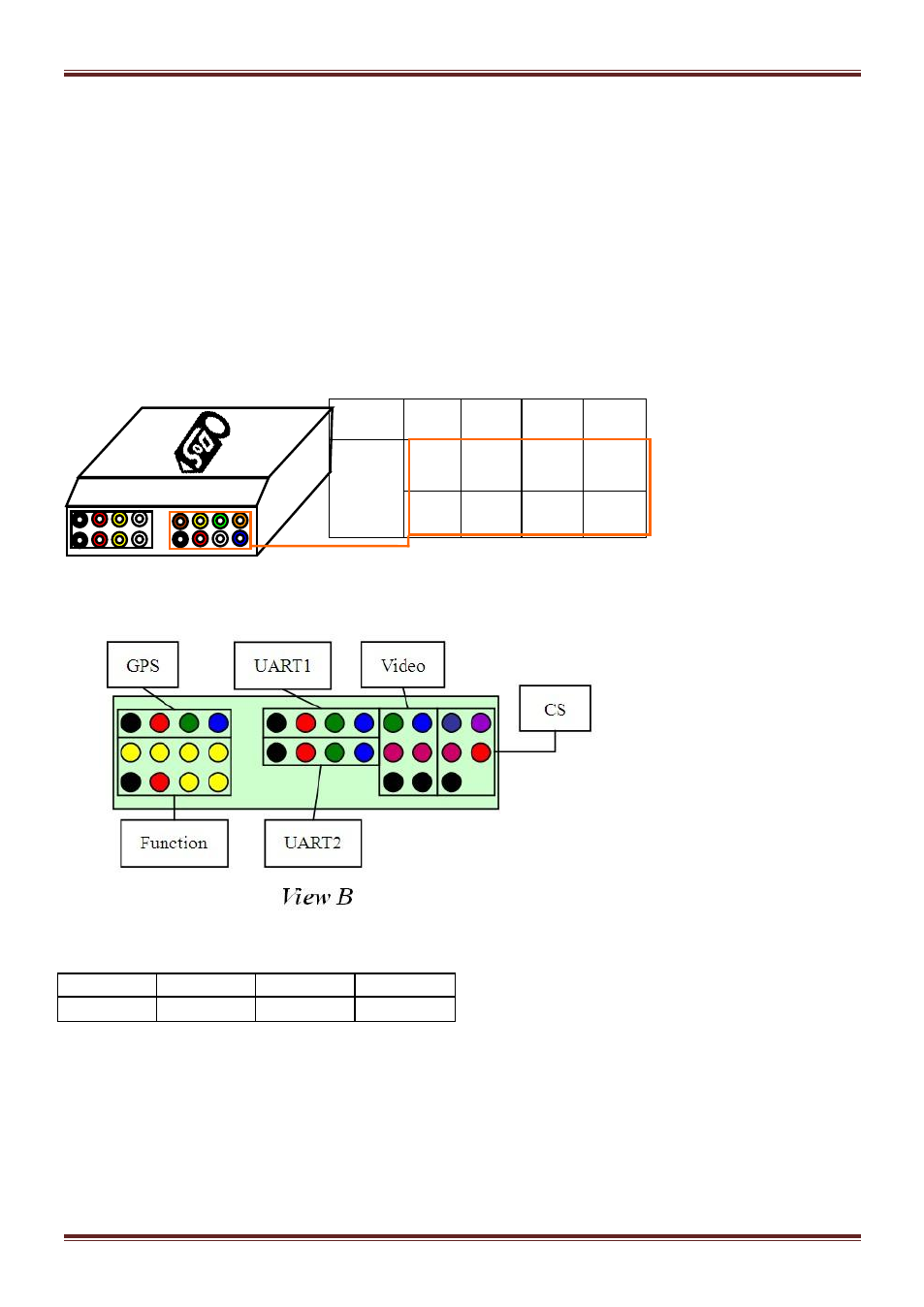

3. Interface specifications:
 Remote receiver input interface
FY-DoS:
FY-41AP:

Function module interface：
SW1 RUD THR ELE
GND VCC AIL SW2
 SW1、SW2：：Connect with RC receiver switch chanel to control the video overlay
system display：
 RUD： Rudder control signal output port.
 THR： Throttle control signal output port.
 ELE： Elevator control signal output port.
 AIL： Aileron control signal output port.
 VCC： +5V output port.
 GND： GND output port.
No. 1 2 3 4
RC
receiver
interface
SW1 RUD
Servo
THR
Servo
ELE
Servo
GND Power
+5V
AIL
Servo
SW2
