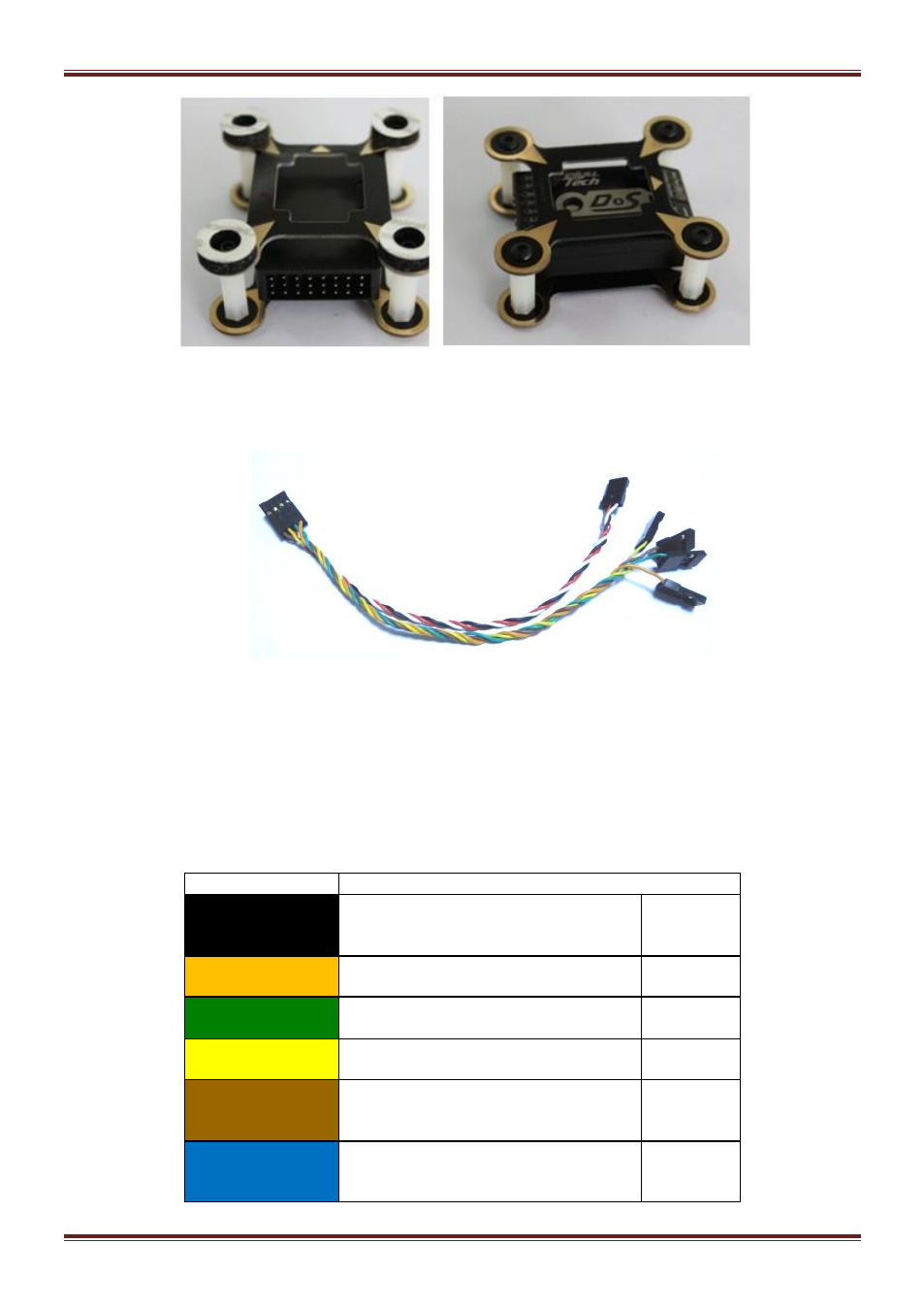

8. RC receiver connection:
RC receiver and DoS&41AP connection wires is included in the DoS&41AP product.
Attention: the wires is arranged by the colors.
a) DoS&41AP requires a minimum of 6-channel RC receiver.
b) 4 Receiver channels are used for aileron (channel 1), elevator (channel 2)
，throttle
(channel 3) and rudder (channel 4) signal output. Connect these 4 receiver output
signals to the DoS&41AP with the supplied wires (pay attention to the color of each
channel ).
c) a free Receiver channels are required to control the DoS&41AP Flight Modes (a
3-position switch ,”SW1”).
d)the other 3-position switch(SW2) is not used in firmware V2.0,so you do not need to
connect.
Wire color
Receive channel
White
(bundled with
red & black)
aileron
Channel
1
orange
elevator
Channel
2
green
throttle
Channel
3
yellow
rudder
Channel
4
brown
SW 1
Any free channel controlled by
A 3-way switch or dial knob
Channel
5
blue
SW 2(not used)
Any free channel controlled by
A 3-way switch or dial knob
Channel
6
