Page 10

ENMET Corporation

MX52 C

ONTROL

4.0 Installation

4.1 Installation recommendations

The

MX52 C

ONTROL

can be installed in any area without a hazardous atmosphere. It should preferably be placed in a

ventilated and monitored location, such as guardhouse, control room, instrumentation room, etc.

The control can be mounted in any standard 19″ rack. See Figure 1 for dimensions. Optional enclosures and wall
shelves are available.

Before making any connections, switch off the power using the main On/Off switch below and to the left of the

FRONT

circuit (see Figures 4 and 10).

Power Supply Terminal

•
•
•
•
•
•
•

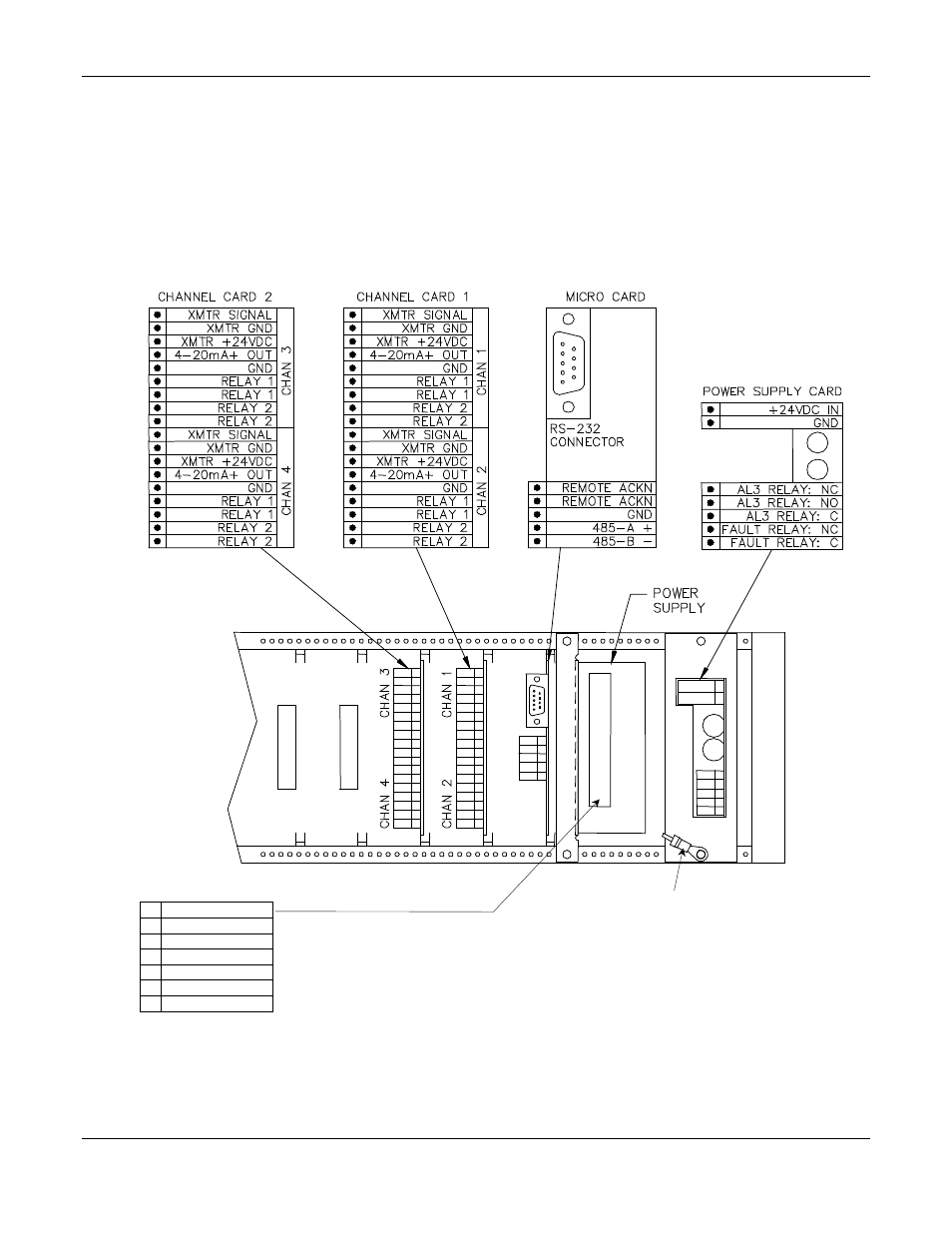

Figure 5: Power Board and Module

Earth Ground

Terminal

Note:

Power connections are located on a terminal strip in this location.

Note the location of the relevant positions as labeled on the terminal
strip and wire accordingly. Positions of the AC & DC contacts may
vary depending on the required power supply
