Install components to pc board, Start here – Elenco Digital / Analog Trainer Kit Version User Manual
Page 41

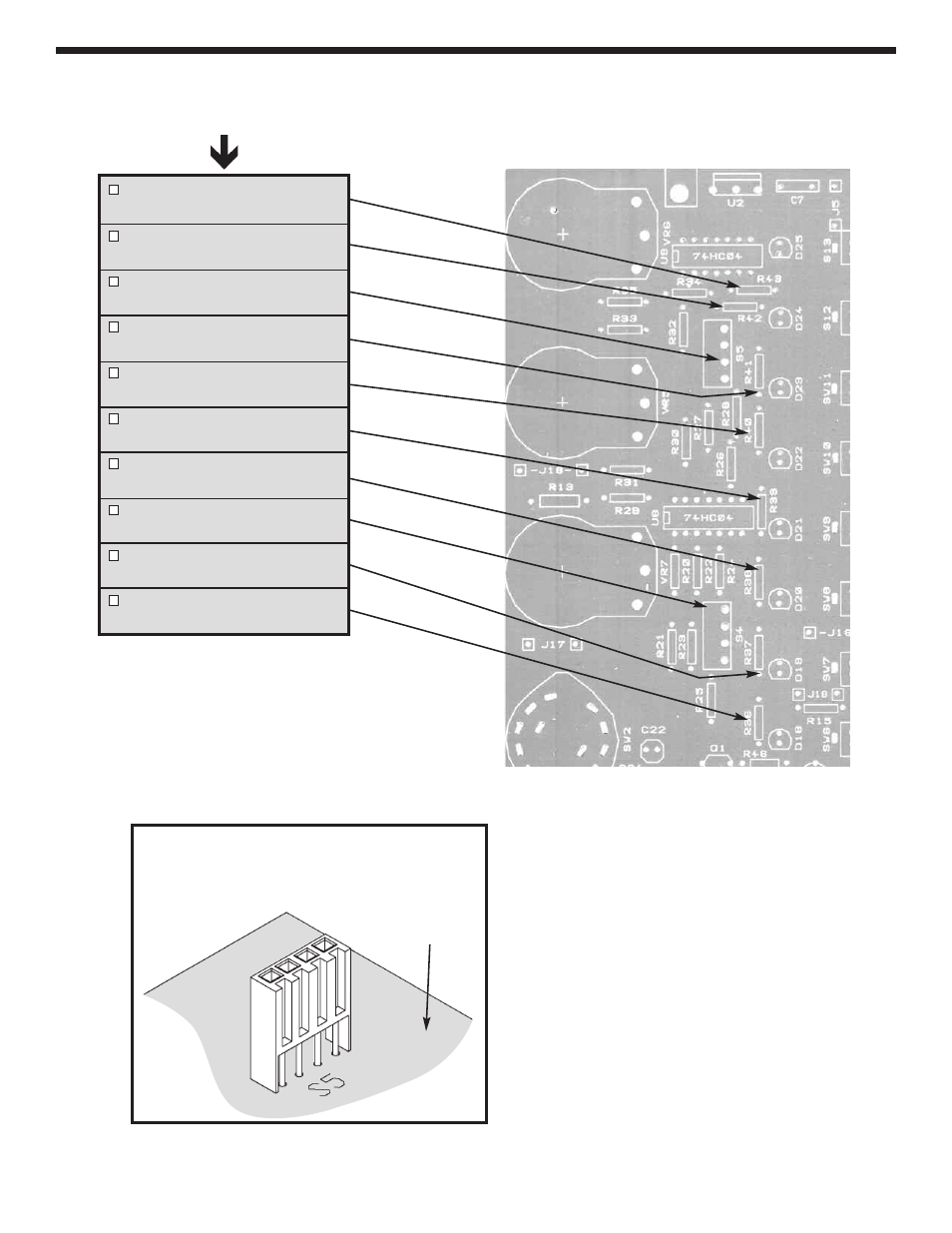

Figure A
Mount the connector as shown and solder the
pins of the connector.
INSTALL COMPONENTS TO PC BOARD
R43 - 120
Ω
5% 1/4W Resistor
(brown-red-brown-gold)
R42 - 120
Ω
5% 1/4W Resistor
(brown-red-brown-gold)
S5 - 4-pin connector
(see Figure A)
R41 - 120
Ω
5% 1/4W Resistor
(brown-red-brown-gold)
R40 - 120
Ω
5% 1/4W Resistor
(brown-red-brown-gold)
R39 - 120
Ω
5% 1/4W Resistor
(brown-red-brown-gold)
R38 - 120
Ω
5% 1/4W Resistor
(brown-red-brown-gold)
S4 - 4-pin connector
(see Figure A)
R37 - 120
Ω
5% 1/4W Resistor
(brown-red-brown-gold)
R36 - 120
Ω
5% 1/4W Resistor
(brown-red-brown-gold)
-40-
Start Here
PC Board
