Mounting the pc board – Elenco Digital / Analog Trainer Kit Version User Manual
Page 10
-9-

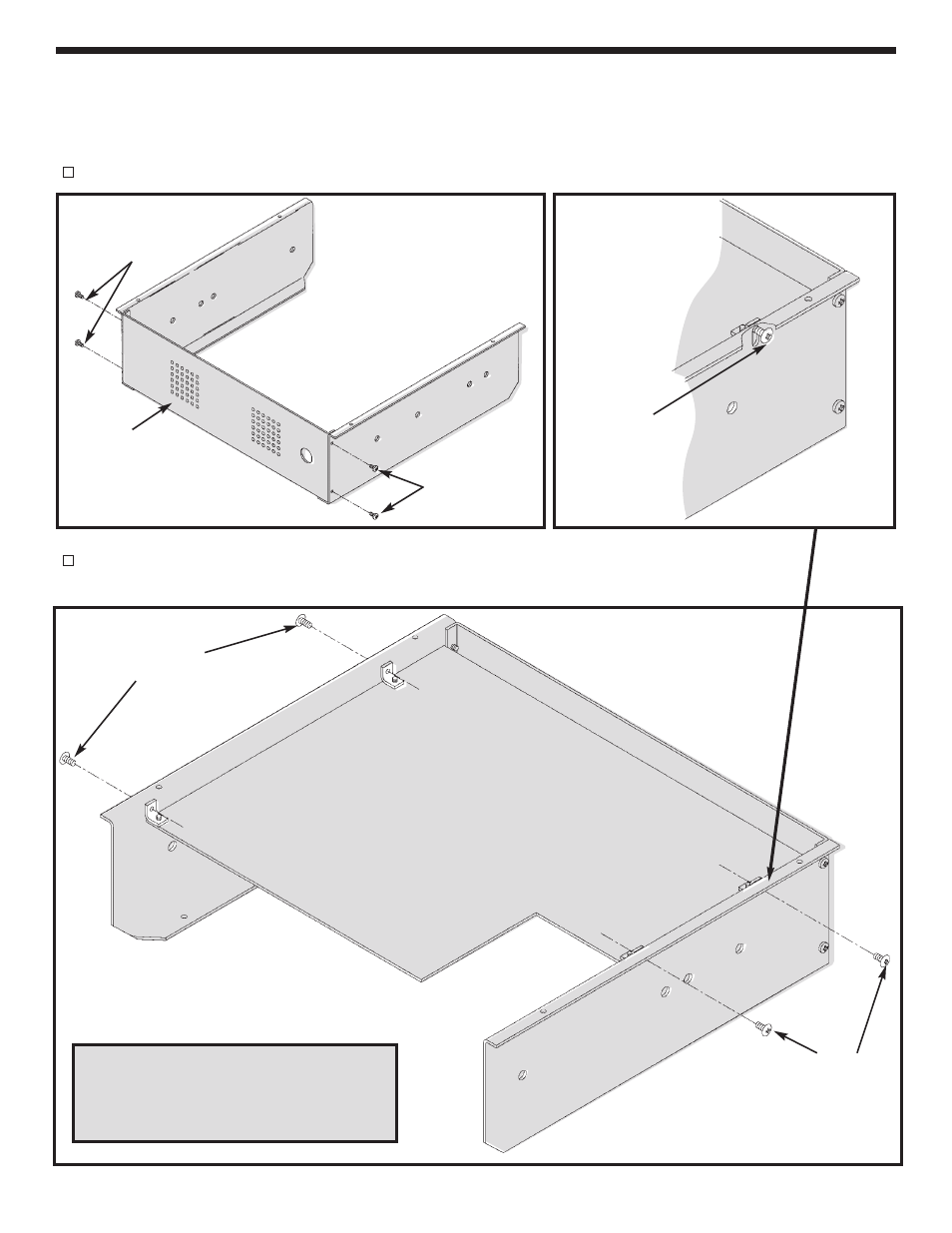

MOUNTING THE PC BOARD
Note: The holes in the two side panels have been punched differently. Be sure that you have the correct side
panel when mounting them to the PC board.
IMPORTANT: Push the PC board up as far as possible before tightening the screws, as shown in Figure La.
Mount the back panel using four 4-40 x 1/4” thread cutting screws (see Figure K).
Mount the PC board to the side panels with four 4-40 x 1/4” screws (see Figure L).
Do not tighten the screws.
Adjust the PC board
height with a 4-40 x
1/4” screw
4-40 x 1/4” Thread
Cutting Screws
4-40 x 1/4” Thread
Cutting Screws
Back Panel
Figure K
Right Side
Left Side
Figure L
4-40 x 1/4”
Machine Screws
Top Legend Side
of PC Board
Note: From the foil side of the PC board,
inspect the edges to be sure that there
are no component leads shorting against
the side panels.
Right Side
Left Side
4-40 x 1/4”
Machine Screws
