If you have any questions contact:
Elenco ® Electronics, Inc.
150 Carpenter Avenue
Wheeling, IL 60090
(847) 541-3800
Website: www.elenco.com • e-mail: [email protected]
WARNING:
SHOCK HAZARD - NEVER connect
the probe to AC power or a wall
electricity outlet for any reason since
serious injury or damage may result.
-1-

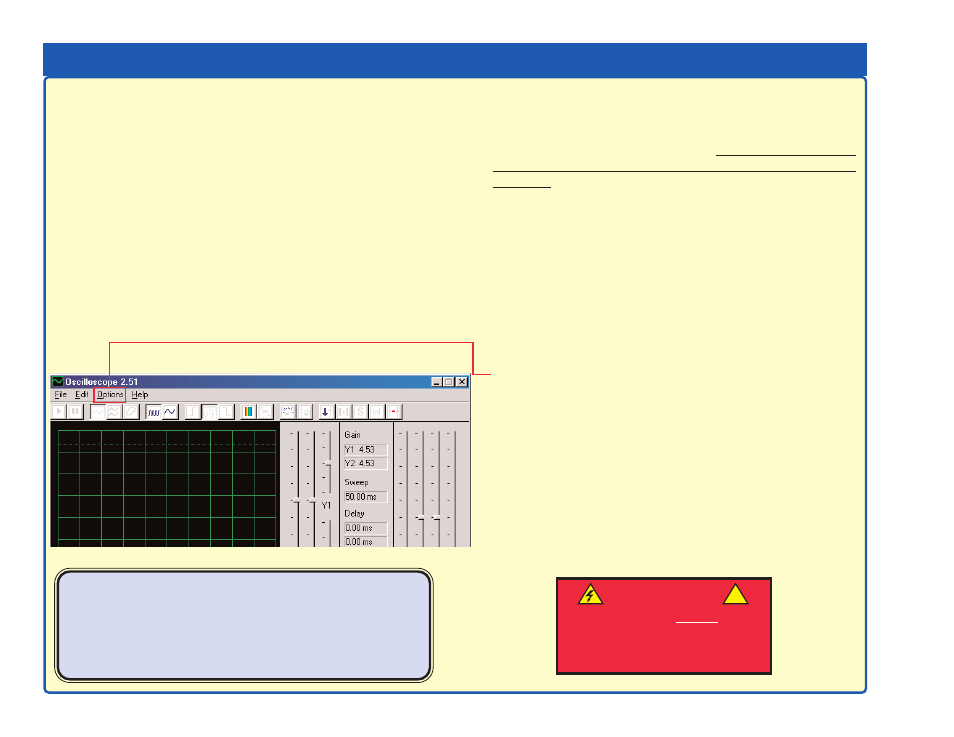

CI-73 - READ THIS FIRST
The CI-73 is a set of 73 Snap Circuits with special
software that allows you to “see” the electrical signals
in the circuits, just like electronics engineers do using
oscilloscopes and spectrum analyzers.
Requirements for your computer:
1. Windows ® 95 or later.
2. A working microphone input port.
INSTRUCTIONS:
1. Insert the CI-73 CD into your computer. The Snap Circuits
menu comes up automatically, with an electronic copy of this
manual. Select Run Winscope Now. Connect the plug end of
the probe to the microphone input on the back of your personal
computer.
If the Snap Circuits menu does not appear automatically: Click
- - , then select CI-73 in your CD
drive, then select AutorunPro and click .
If Windows asks you how to open the file (or if you have
Acrobat
® Reader TM 3.0 or older), then you need to install
Acrobat ® Reader TM : Click - - , then
select CI-73 in your CD drive, then select Acrobat ® Installer
and click . Follow the instructions to install, and then re-
insert the CI-73 CD into your computer.
2. Change the default settings for Winscope by selecting
. Then select and change Sampling to
44100 and press . Then select again, then
- and pick a bright color like pink. Then
select , then to save these settings
as your default.
3. Follow the instructions through project PC3 before
moving on to any other circuits, since the main features
of the software are demonstrated.
!
