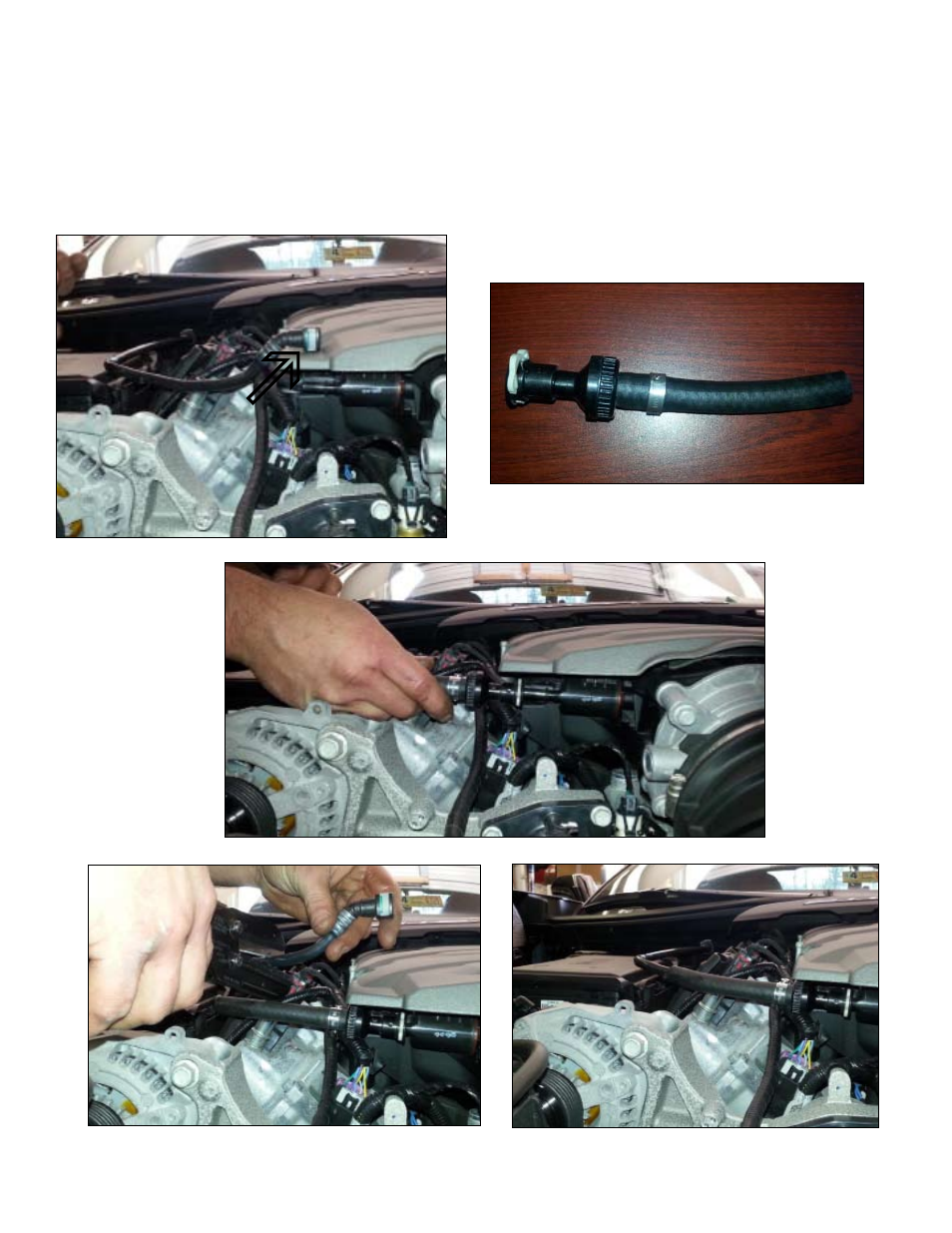

EVAP System Check Valve: The only modification you need to make to the EVAP system is to add
an ECS supplied OE check valve in with the factory EVAP system as shown below.
n
Cut the factory EVAP line and insert the line into the ECS 3/8 EVAP hose. The clamp provided is
to clamp the hose around the evap line. The clamp can easily be tightened using a pair of dykes (side
cutting pliers) or similar.
