3. Installation to turntable
For mounting the DV501 you will first require an
accurately placed hole in the deck. This can easily
be obtained using the enclosed paper template.
After marking the holes' center drill out to a
diameter of 29 or 30mm. Test the arm in the
mounting hole. Mark the position of the DV501's
small fixing holes on ARM BASE, remove the arm
and then make three small holes at these positions
using a gimlet or sharp instrument. The arm can
now be secured to the board using the screws
provided.
CAUTION
z
There are no rubbers or felt washers
provided as these detract from the
performance in todays modern
turntables.
z
Please keep the DV501 in its box
whilst drilling holes to avoid any
damage to the arm.

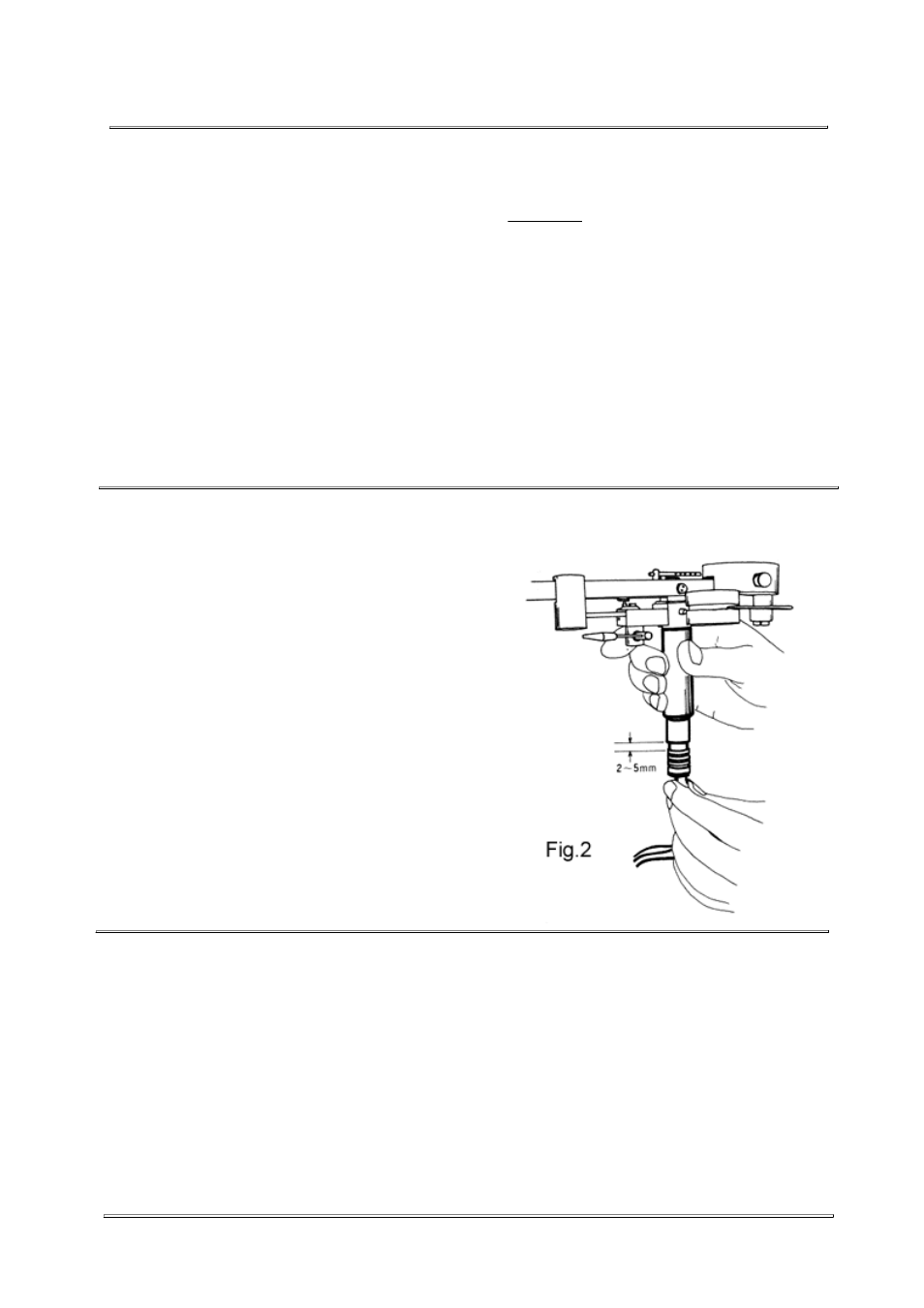

4. Output line connector
Insert the DV501's arm cable to the output terminal
which is situated under the DV501.
There will be a 2-5mm allowance between the plug
and outer pipe of the DV501 to enable you to use
other types of arm cord you wish to do so. (See
Fig. 2)
5. Cartridge installation and adjustments
Please follow these six points when installing your cartridge in the DV501.
1. Damper plate check
2. Overhang adjustment for the cartridge in headshell.
3. Main weight balance position
4. Tone arm height adjusting
5. Tracking force setting.
6. Bias adjustment.
These checks can be carried out as follows;
