Dimension One Spas Cove - Manual (Page 2)

Note: 1. Subject to change without notice.
Cove
Specification, 2006, Cove Doc-1403 Rev. A Rev Date: 04/28/05
2006 Cove Specifications Dimension One Spas
2. Engineering specs may differ slightly from brochure.
3. For E-Z lifter installation allow 18” (45.7 cm) clearances on the backside of the spa.
4. Alternative cabinets may add significant weight. Ask your dealer for exact details.
Page 2 of
2
Caution:
Due to manufacturing tolerances there could be some
minor differences between the actual spa and the drawing above.
If site planning is critical to such tolerances, be sure to measure your actual spa.

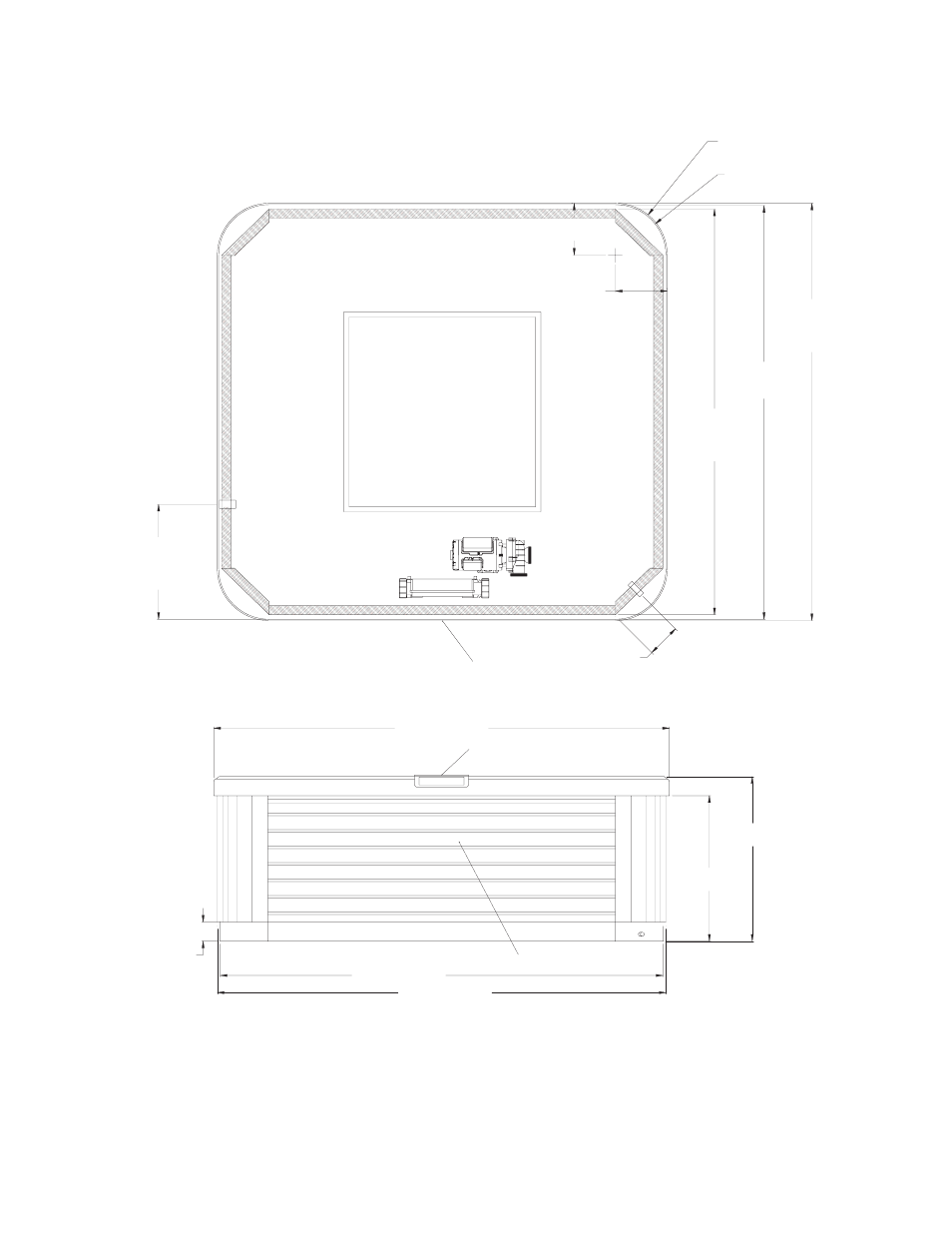

Top View of Spa
THE EDGES OF SPA BASE.
SUPPORTED CONSISTENT WITH
ON BOTTOM OF SPA, TO BE
THIS 3 FOOT SQUARE AREA,
R9 in [R23 cm]
Skirt Corner
83 in [211 cm]
Spa Lip
Pedestal Base
30 in [76 cm]
27 in [67 cm]
74 in [188 cm]
Pedestal
Base
76 in [193 cm]
Shell
See Caution
81 in [205 cm]
Door Extends
Under Spa Lip
82 in [208 cm]
R9 in [R24 cm]
Spa Shell
21 in [53 cm]
Electrical
Inlet
6 1/8
Hose Bib/
Water Drain
Front View of Spa
75 in [191 cm]
Skirt
9 in [24 cm]
9 in [24 cm]
Control Panel
Front of Spa
Control Panel
3 1/2 in [9 cm]
Architectural Specification
