750/752 Display
CMW
750/752 Display

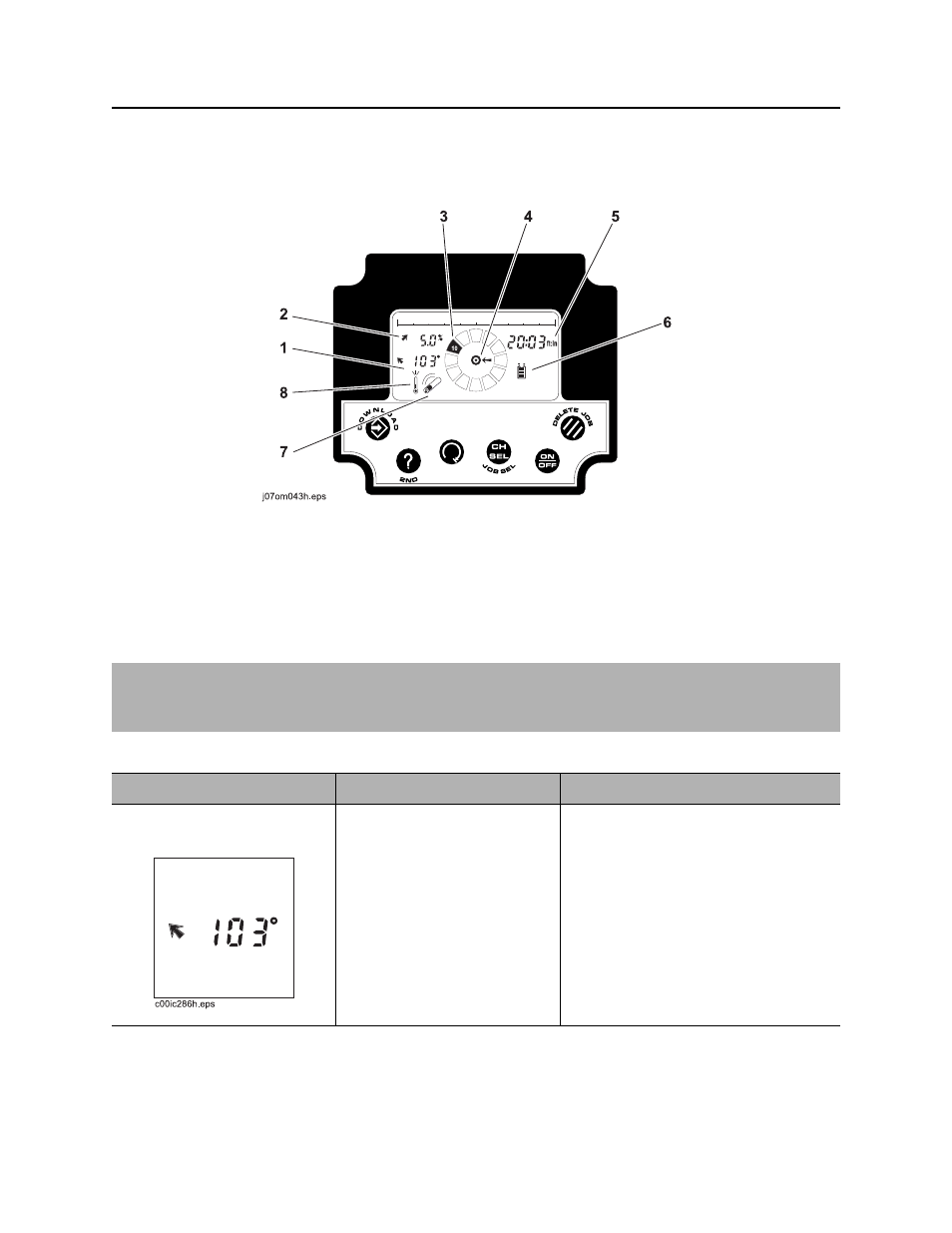

Indicators
1. Beacon temperature display
2. Pitch/slope indicator and percentage indicator
3. Roll indicator
4. Target indentifier indicator
5. Depth estimate
6. Display battery status indicator
7. Beacon battery status indicator
8. Beacon temperature indicator
IMPORTANT: Some items operate differently depending where data is being saved. Internal refers to
pipe data being saved to 750 Display memory. External refers to pipe data being sent to a properly
connected laptop computer running a version of Trac Management System software.
Item Description Notes
1. Beacon temperature
display Shows beacon temperature
readings in degrees Farenheit
and degrees Centigrade.
