JT922 Operator’s Manual
Specifications - 149
CMW
Specifications

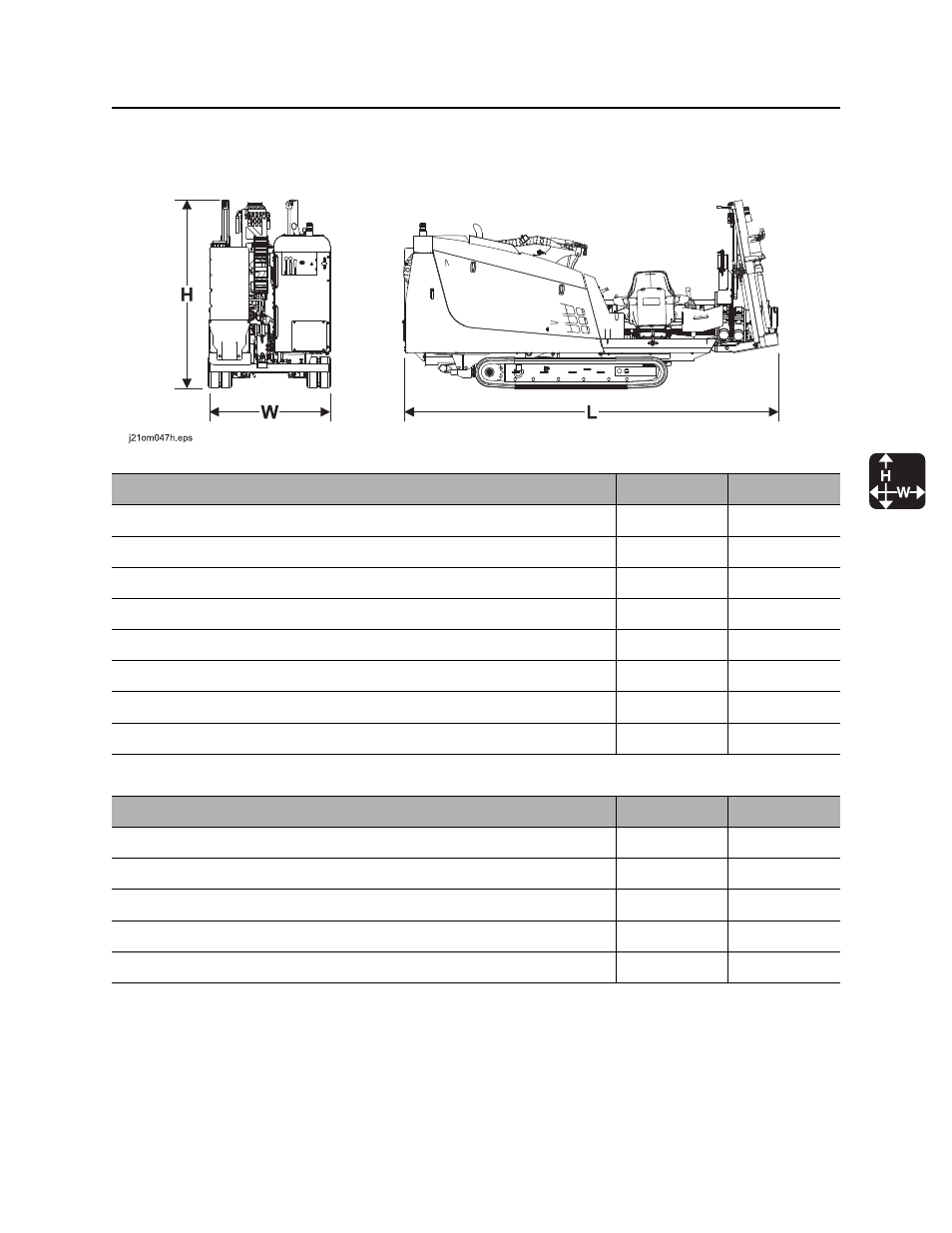

Dimensions U.S. Metric
L, overall machine length (per SAE J2022) 146 in 3.7 m
W, overall machine width (per SAE J2022) 48 in 1.2 m
H, overall machine height (per SAE J2022) 74 in 1.9 m
Entry angle (per SAE J2022) 10-14° 10-14°
Angle of approach 18° 18°
Angle of departure 18° 18°
Operating mass, water tank full, 50 drill pipe (per SAE J2022) 7050 lb 3200 kg
Operating mass, water tank empty, 50 drill pipe 6700 lb 3040 kg
Power Pipe U.S. Metric
Length (per SAE J2022), nominal 72 in 1.8 m
Joint diameter (per SAE J2022) 2 in 51 mm
Tubing diameter (per SAE J2022) 1.6 in 40 mm
Minimum bend radius 105 ft 32 m
Weight (per SAE J2022), lined 29 lb 13 kg
