JT922 Operator’s Manual
Controls - 27

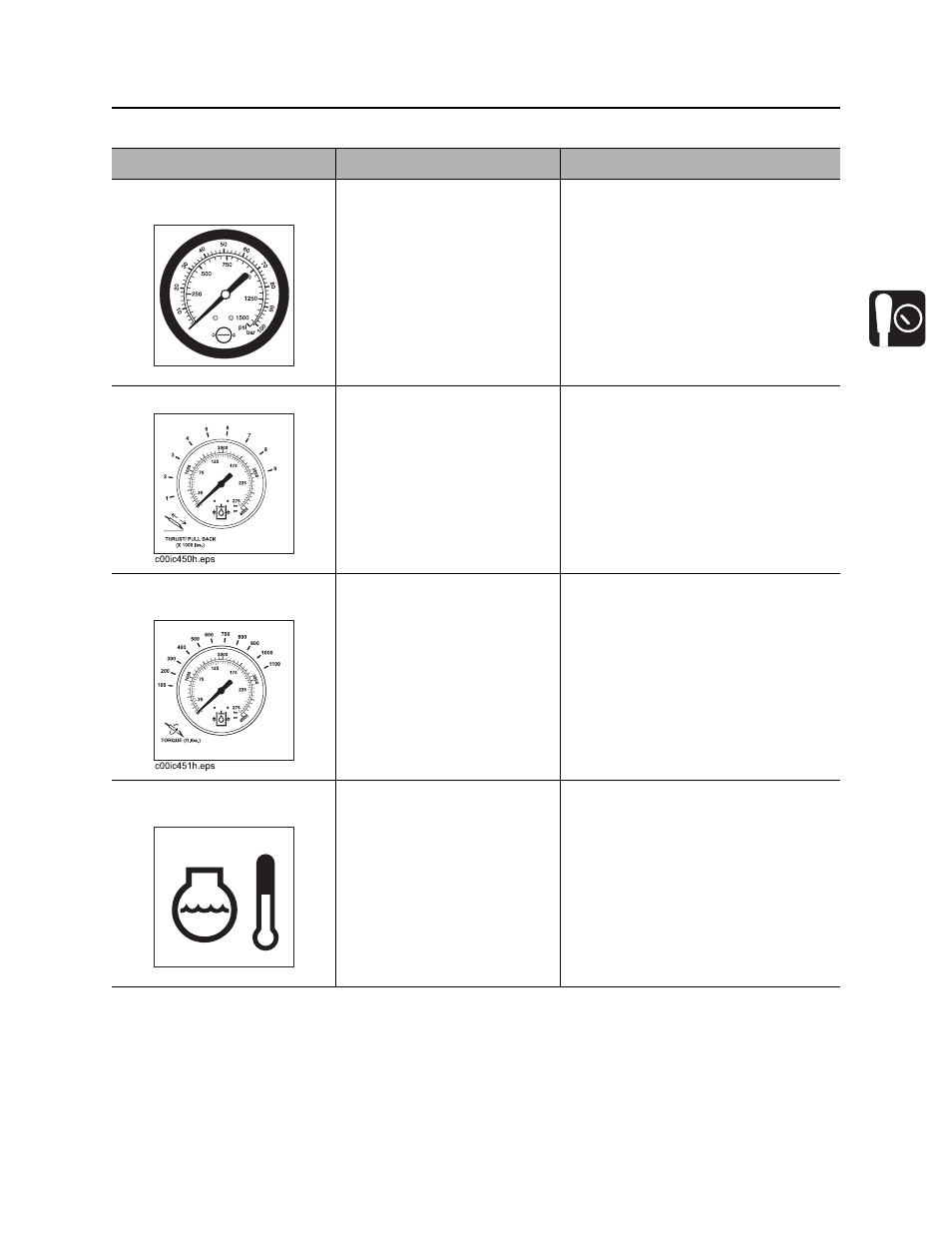

Gauge Cluster
CMW
Item Description Notes
1. Drilling fluid pressure
gauge Displays drilling fluid pressure
supplied by drilling fluid
pump.
2. Thrust pressure gauge Displays hydraulic fluid
pressure to thrust motor
during thrust and pullback.
Estimates thrust and pullback
force on lines outside gauge.
3. Rotation pressure
gauge Displays hydraulic fluid
pressure to rotation motor
when spindle is turned
clockwise.
Estimates rotational torque on
lines outside gauge.
4. high temperature
indicator Indicates engine is
overheating. IMPORTANT: Alarms will sound when
engine overheats.
Stop engine and service unit.
