8

2.3 Front Panel Descriptions

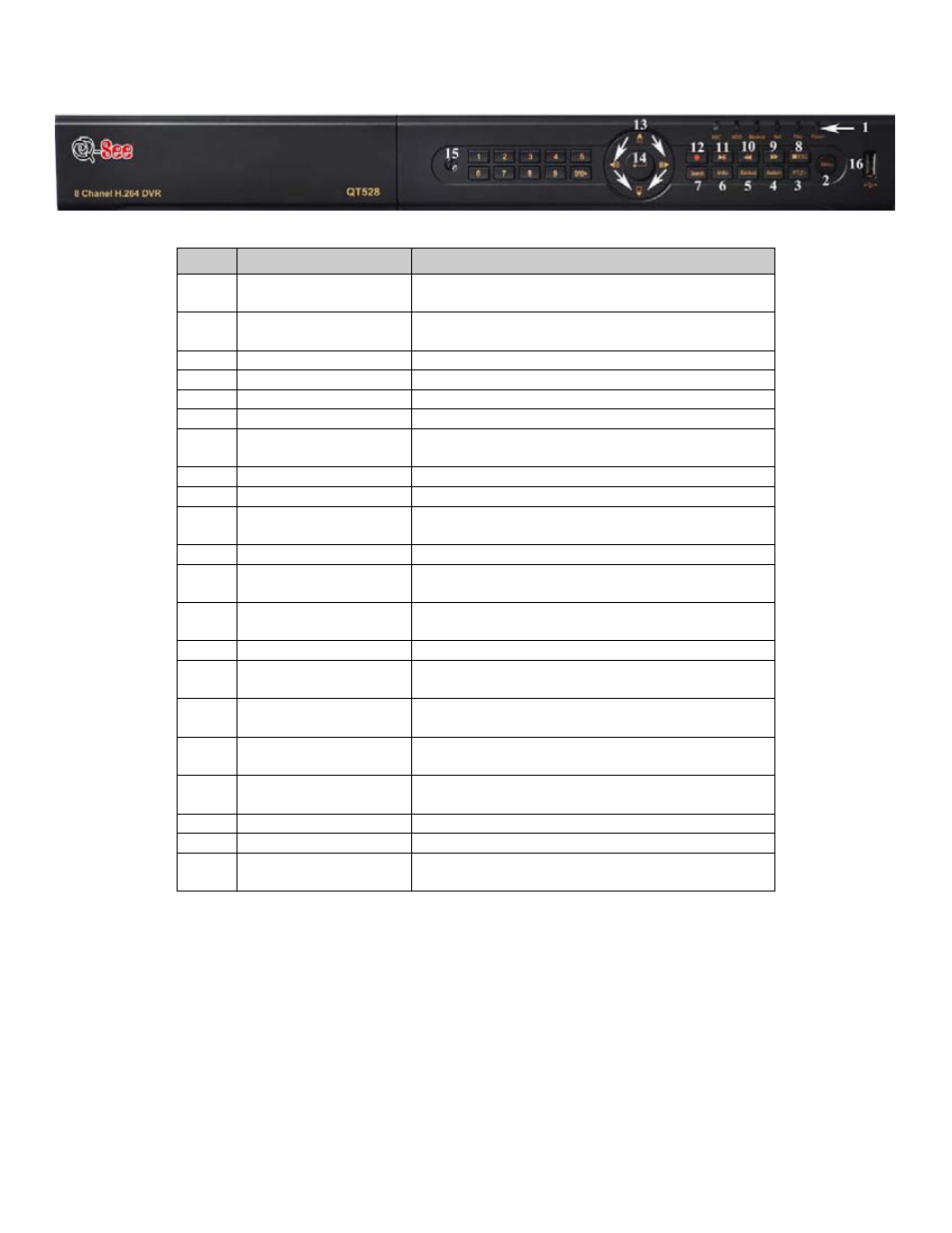

Fig 2.5 Front Panel

Item

Name

Description

1

Power Status

Power indicator, when connection , the light is
blue

1

HDD Status

When HDD is writing and reading , the light is
blue

1

Network Status

When access to network , the light is blue

1

Backup Status

When backup files and data, the light is blue

1

Play Status

When playing video, the light is blue

1

REC Status

When recording, the light is blue

2

MENU/+

1. Enter menu in live
2. Increase the value in setup

3

P.T.Z.

Enter PTZ mode in live

4

Audio

Live or Mute Audio

5

BACKUP/-

1. Decrease the value in setup
2. Enter backup mode in live

6

Info

System Information

7

SEARCH/ZOOM

1. Enter search mode
2. ZOOM function enables at PTZ mode.

8

STOP/ESC

1. Quit play mode
2. Exit the current interface or status

9

FF

Fast Forward

10

REVSPEED

1. Reverse
2. SPEED function enables at PTZ mode

11

STOP/Pause

1. Quit play mode
2. Pause Playback

12

RECORD/FOCUS

1. Record manually
2. FOCUS function enables at PTZ mode.

13

Direction/Multi-screen

1. Change direction to select items.
2. Change screen display to 1/4/9/16 mode.

14

Enter button

Confirm selection

15

IR Sensor

For remote controller

16

USB port

To connect external USB devices like USB
flash, USB HDD for backup or update firmware.
