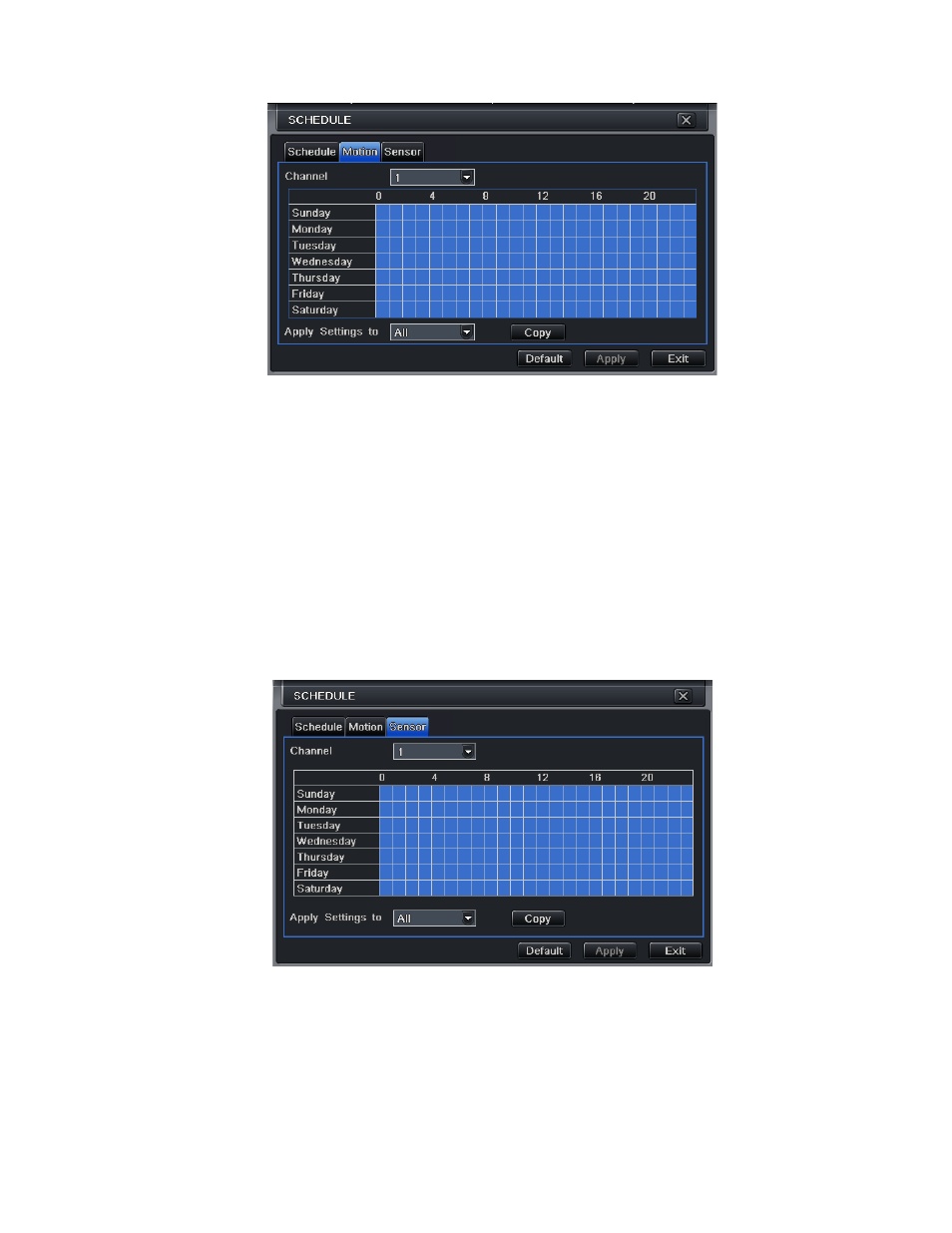

Fig 4-17 Schedule Configuration-Motion

Step 2: The setup steps of motion are similar to schedule; user can refer to 4.4.1 Schedule for details.

Note: the default schedule of motion detection is all of the time, that is, the color of schedule interface is all
blue.

4.4.3 Sensor

Step 1: Enter into system configuration

schedule configurationalarm; refer to Fig 4-18:

Step 2: The setup steps of alarm are similar to schedule; user can refer to 4.4.1 Schedule for details.

Note: the default schedule of motion detection is all of the time, that is, the color of schedule interface is all
blue.

Fig 4-18 Schedule Configuration-Sensor

4.5 Alarm Configuration

Alarm configuration includes five sub menus: sensor, motion, video loss, other alarm and alarm out.
