43
5. RECORD, SEARCH, PLAYBACK AND BACKUP
Search configuration includes three submenus: time search, event search and file manager.
5.1 Time Search
Step 1: Enter into Search configuration time search; refer to Fig 5-1:

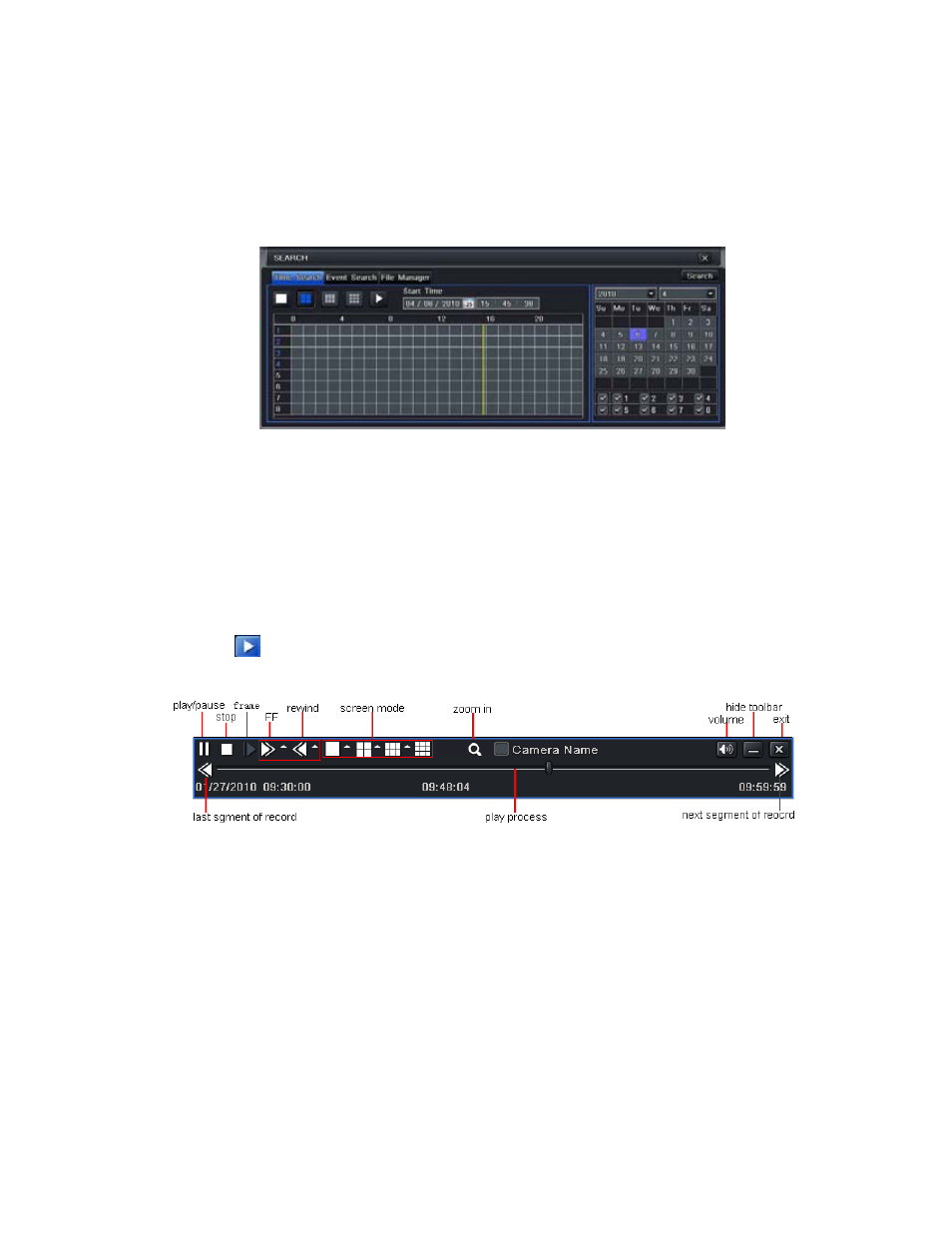

Fig 5-1 Search Configuration Time Search
Step 2: Select channel, screen display mode, the highlighted dates on the calendar means the days have
recorded data.
Step 3: Select a date, press Search button, click the time grid to set the play start time or input play time manually.
The selected time will match the blue grid.
Note: the vertical column represents the Channel number. The horizontal column represents hours of the
day.
Step 4: Click Play button to playback record; click the relevant buttons on the screen to do various
operations:
Playback Buttons
Note: when the monitor resolution is VGA 800*600, the time search interface will show a hide button,
click this button, the whole interface will be expanded.
