3.1 Connecting the Cabinets

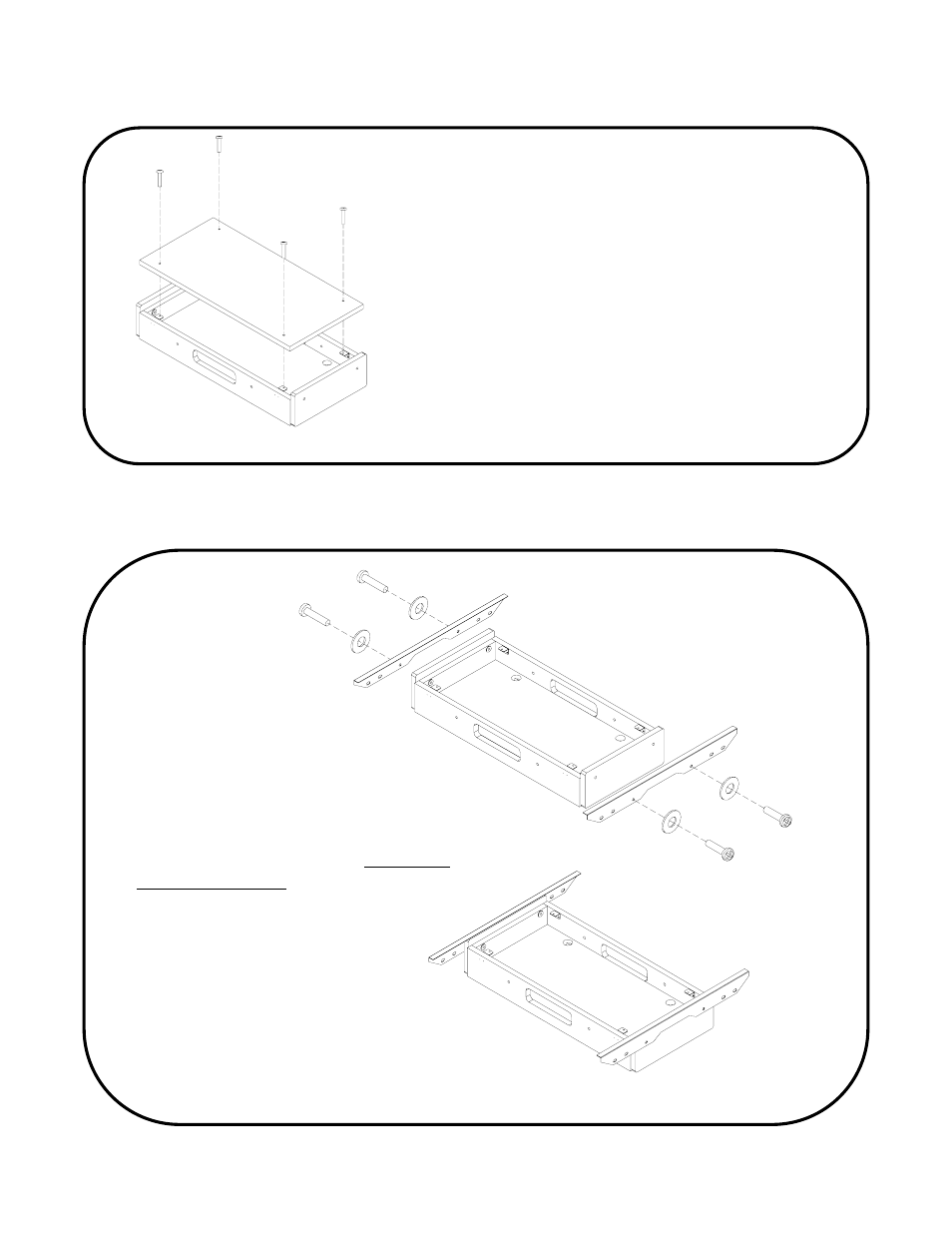

Start by removing the lid of the Foot
Box. Remove the four Phillips head
screws to free the lid, and it will pull
straight up. Do not close the Foot Box
until you have finished setting up and
connected all of the cables.
Attach the two Cabinet Connector
Brackets to the Foot Box, as shown on
the right. Use four of the bolts and
washers in the bag labeled Connector
Bracket Hardware and tighten using an
Allen wrench.
