3.2 Connecting the Shifter

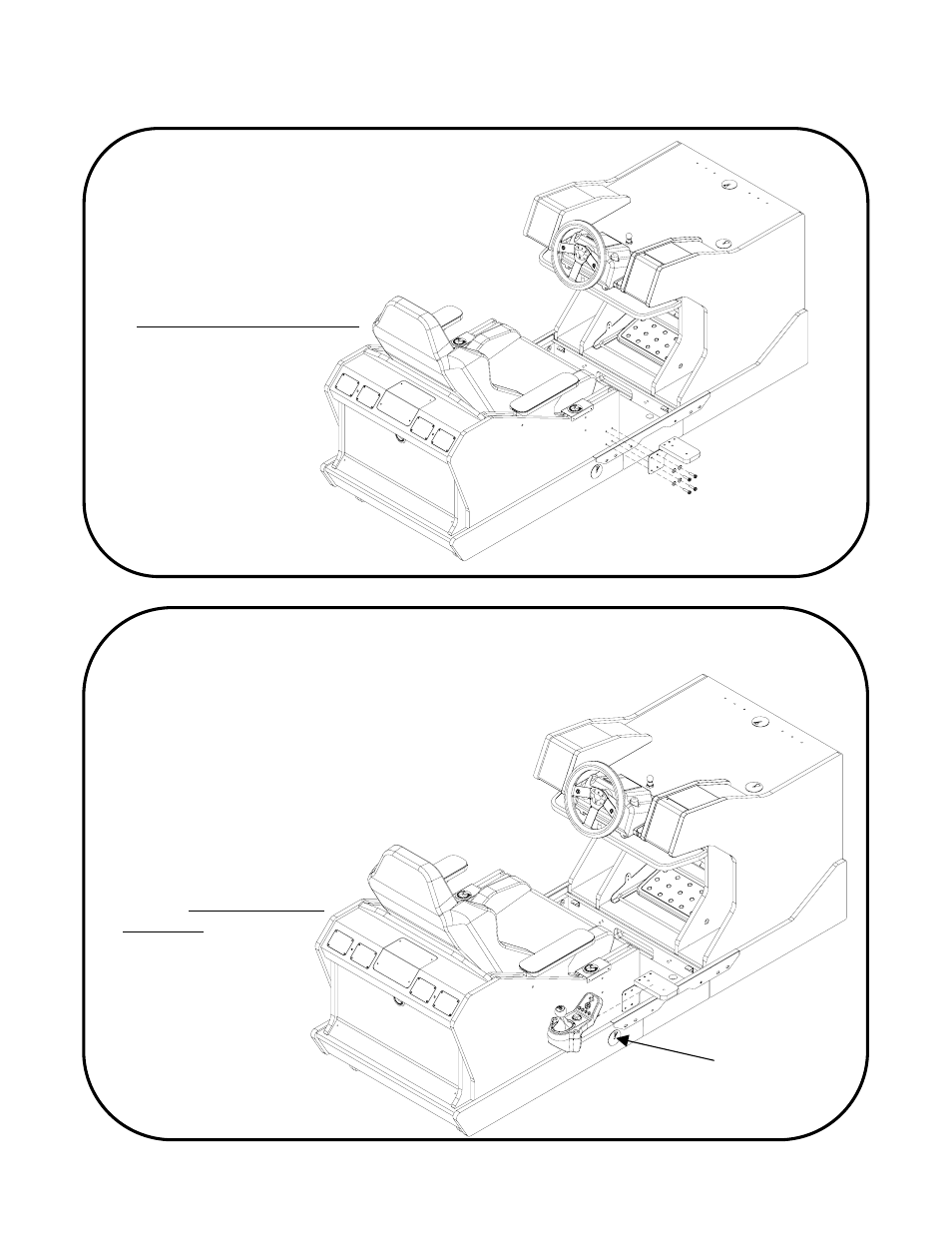

Align the Shifter Mounting Bracket
with the mounting holes on the Seat
Cabinet so the wood piece is facing
up, as shown here. Secure the bracket
in place using the four screws and
washers in the bag marked
Shifter Mounting Hardware.
To connect the Shifter to the Shifter Mounting Bracket, you must
first loosen the mounting clamps on the Shifter. Turn the knobs on
both sides of the Shifter counterclockwise to lower the mounting
clamps, and twist the bottom center clamping screw
so that the Shifter can mount to the bracket as
shown. Once in position, tighten the two knobs
and screw again to hold the Shifter in place.
Pull the Shifter cable through the hole in the
cabinet just below the shifter. Reach in through
the rectangular hole in the
Foot Box and pull the cable
through. Find the bag
labeled Shifter Mounting
Hardware. From under
the Shifter, use the
two screws to secure
the Shifter to the
Shifter Mounting
Bracket.
Run Shifter cable through
this hole and pull into the
Foot Box with the others.
