Congratulations

Congratulations on the purchase of your new advanced Bullard T4MAX

Thermal Imager.
The new Bullard T4MAX combines advanced thermal imaging technology

with our expertise in high heat, impact resistant engineered polymers to

bring you the most durable thermal imager on the market. The T4MAX’s

innovative, compact design and logical, easy-to-use interface presents a truly

personalized thermal imaging tool to today’s firefighters.
The benefits of using thermal imaging technology as a firefighting tool

encompass nearly every aspect of a firefighter’s job. Thermal imaging is

not, however, a technology designed to replace current firefighting tactics.

Rather, it is a tool that allows the firefighter to be more effective and make

better decisions. Some of the many uses for your Bullard T4MAX Thermal

Imager include:
• Search and rescue
• Scene assessment
• Locating the seat of the fire
• Determining the spread of the fire
• Locating hot spots
• Identifying potential flashover situations
• Determining ventilation points
• Determining entry and exit points
• Overhaul
• Hazmat
• Wildland firefighting
• Incident investigation
• Training

NOTE

To ensure that we are able to reach you with any product or software

updates, please fill out the warranty card enclosed with your Bullard

T4MAX Thermal Imager.

WARNING

READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
YOUR THERMAL IMAGER IS LIKE ANY OTHER TOOL. IT MUST BE USED

PROPERLY AND SAFELY. ALL USERS SHOULD BE TRAINED ON THE

PROPER AND SAFE USE OF THERMAL IMAGING PRIOR TO USING THE

T4MAX THERMAL IMAGER. THIS IS ESPECIALLY IMPORTANT FOR USERS

WHO MAY USE THE T4MAX THERMAL IMAGER IN HAZARDOUS OR IDLH

(IMMEDIATELY DANGEROUS TO LIFE AND HEALTH) ENVIRONMENTS.
FAILURE TO FOLLOW THIS INFORMATION COULD RESULT IN DEATH OR

SERIOUS INJURY.

WARNING

THIS IS A CLASS A PRODUCT. IN A DOMESTIC ENVIRONMENT THIS

PRODUCT MAY CAUSE RADIO INTERFERENCE IN WHICH CASE THE USER

MAY BE REQUIRED TO TAKE ADEQUATE MEASURE

Use and Operation

Power

To turn on your Bullard T4MAX Thermal Imager, depress and release the

large, red power button under the LCD display (Figure 2). Upon pressing the

power button the thermal imager will display the Bullard logo and initiate a

calibration sequence. The thermal image will appear within four seconds. To turn

off power, depress and hold the power button for three seconds and release.

NOTE

You will periodically observe a momentary freeze in the image.

This is normal and is a function of the self calibration shutter. The

shutter will activate every 30 seconds to three minutes, depending

on the environment.

Relative Heat Indicator (RHI)

The T4MAX is equipped with temperature measurement capability. The right

side of the display will show a bar graph or Relative Heat Indicator (RHI).

The RHI will indicate the approximate temperature of the object viewed

Lens

LCD Screen

Side Strap

Rear Boot

Lens Bezel

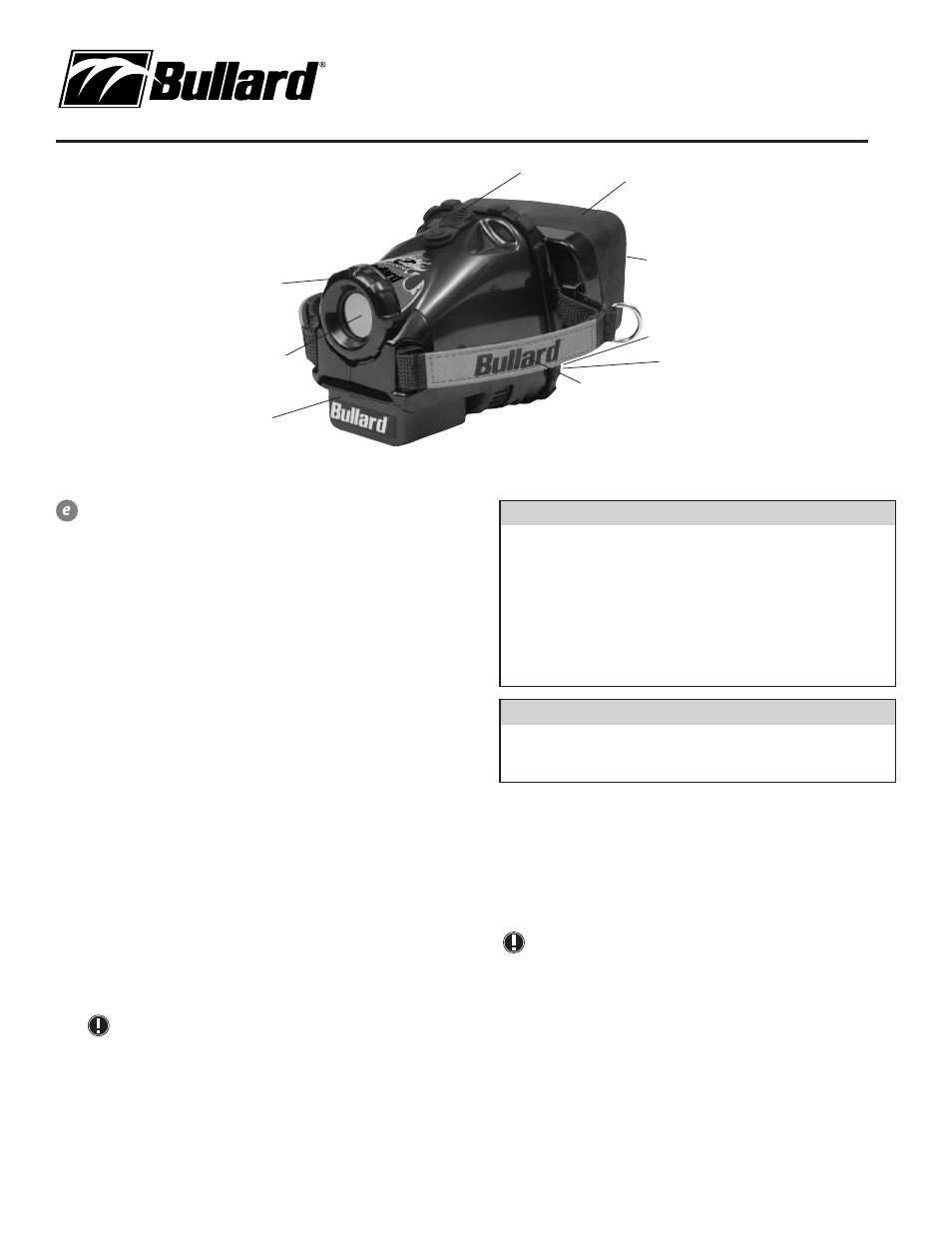

Figure 1

Thermal Throttle

Power Button

Battery

Zoom Button

Bullard T4MAX Thermal Imager

User Manual

www.bullard.com
