Page 31
Controls- Installation / Setup / Commissioning
CONTROL SETUP
SETTING UP THE CONTROL - GENERAL
B
EFORE S TARTING
Before attempting to use the setup instructions for the controls system, make sure the antenna (RF units
only) or the low voltage cable is connected, batteries have been correctly installed in the remote control
(RF units only) and the main switch has been turned on for the product.
NOTE: D O NOT RUN THE LOW VOLTAGE LOOM IN LONG PARALLEL RUNS WITH 240V MAINS CABLES . K EEP THE
LOW VOLTAGE LOOM 200 MM AWAY FROM ANY LONG RUNS OF MAINS WIRING .
Cross over mains wiring at right angles.
Do not use existing access holes in wall cavities where 240V mains wiring exists. Drill a
new access hole 200mm from the existing hole.

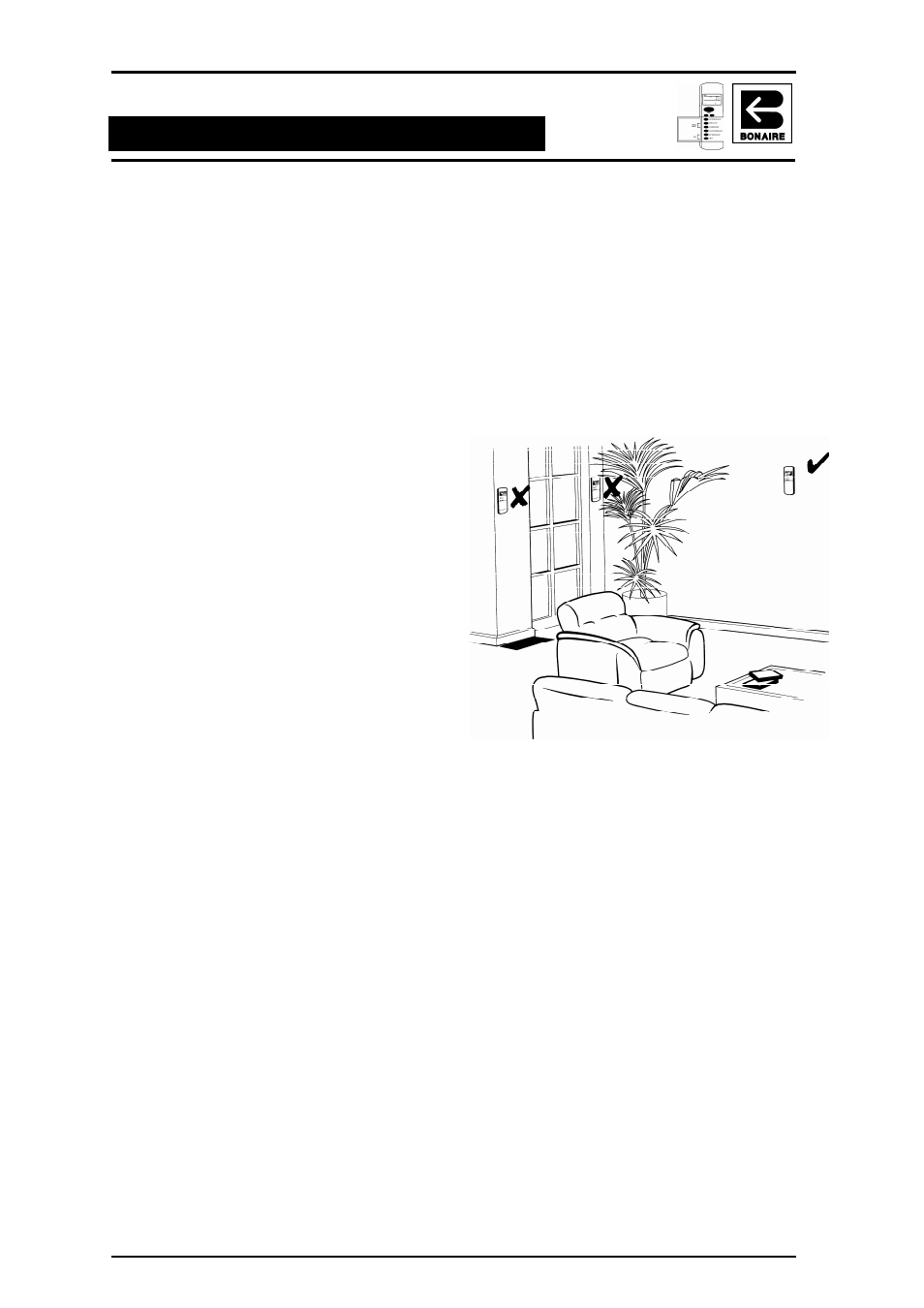

I NSTALLATION
Where the control must be installed approximately
1.5 metres above the floor level on an internal wall
which adjoins an additional conditioned space, this
will provide the best comfort control.
Secure the Comfort Control cradle to the wall using
the screws and plugs provided.
• For hard wired versions bring the cable through
the hole in the cradle into the control. Once
connected snap the control into the cradle.
• For radio frequency controls install batteries and
slide the Comfort Control into the cradle. The
Comfort Control should remain in the cradle
during normal operating conditions for optimum
temperature thermostat control.
Do not locate Comfort Control near concealed hot or cold water pipes, warm air ducts, radiators, sunlight,
televisions or draughts from hallways, stairways and fireplaces. These can all affect the temperature.
RF Control Units ONLY
Ensure the antenna has been installed at least 500 mm clear of all metal masses. The transmissions
between the RF Remote Control and the unit control box are radio signals which are subject to
interference. The primary causes for signal interference are:
• Metal Construction buildings or metal masses near the antenna.
• Incorrect location of the antenna
• Cordless RF door bells
• Other Faulty appliances
• Remote Control too close to computers
• Powerful radio scanners
If transmission cannot be achieved successfully a Low voltage cable control will need to be installed by the
installer.
C ODING T HE U NIT
There is a 4 minute window from the time the main switch has been turned ON to the system (indoor unit)
in which to code the unit.
