Bimba OLE User Manual

Page 5

Table 2

Actuator

Allen Key

Torque

9/64"

12 in-lbs.

150

9/64"

12 in-lbs.

350

5/32"

35 in-lbs.

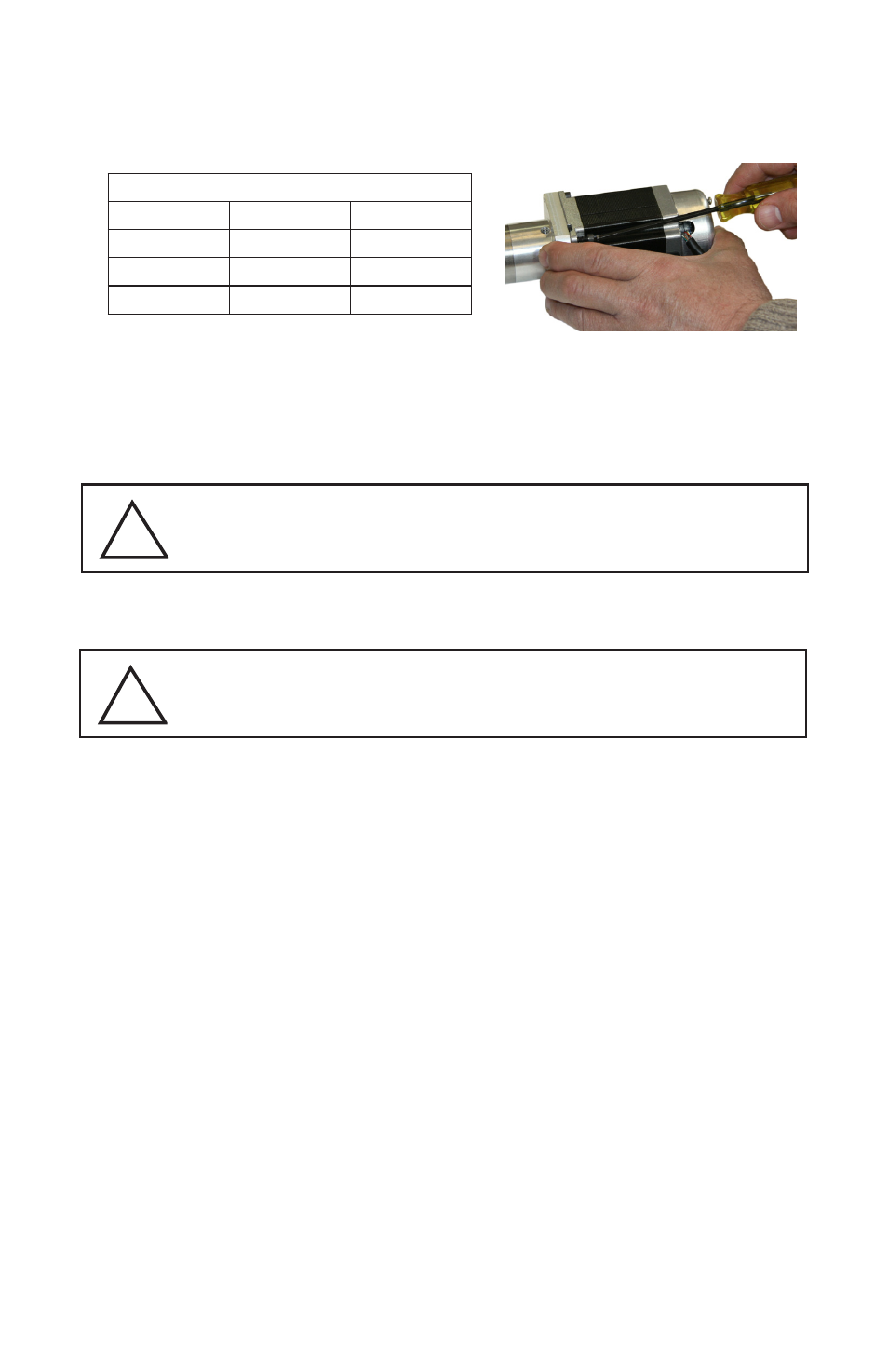

c. Mount motor to actuator, slip shaft into coupler. Secure motor to

actuator using 4 screws provided. Allen key sizes and torque values

are provided in Table 2. Be careful not to turn the coupler.

d. Tighten coupler clamp screw so motor shaft is secured (refer to

Table 1 for torque specification). The coupler clamps around the

circumference of the motor shaft. The orientation of any flat (or key-

way) on the shaft does not matter.

DO NOT screw the plug in to a hard stop. Only screw it in far

enough so that the top of the plug is flush with the outside

surface of the actuator.

Tighten the coupler clamp screw to the torque value in Table 1.

e. Replace the coupler access plug.

Note: Torque range is ± 10%
