Congratulations on purchasing an Original Line Electric actuator from
Bimba. Our OLE and OLET actuators are designed, built, and tested to
provide the longest life, greatest durability, highest speed, and greatest
thrust per dollar. We look forward to serving your electric actuator needs
with the same responsiveness and engineering expertise you are accus-
tomed to receiving for our pneumatic products.
Every OLE and OLET actuator is backed by a one-year warranty. Extend
it to a two-year warranty by registering on our website at
www.bimba.com/pdf/OLEwarrantyregistration.pdf.
1. Actuator-only Models
Installing your motor

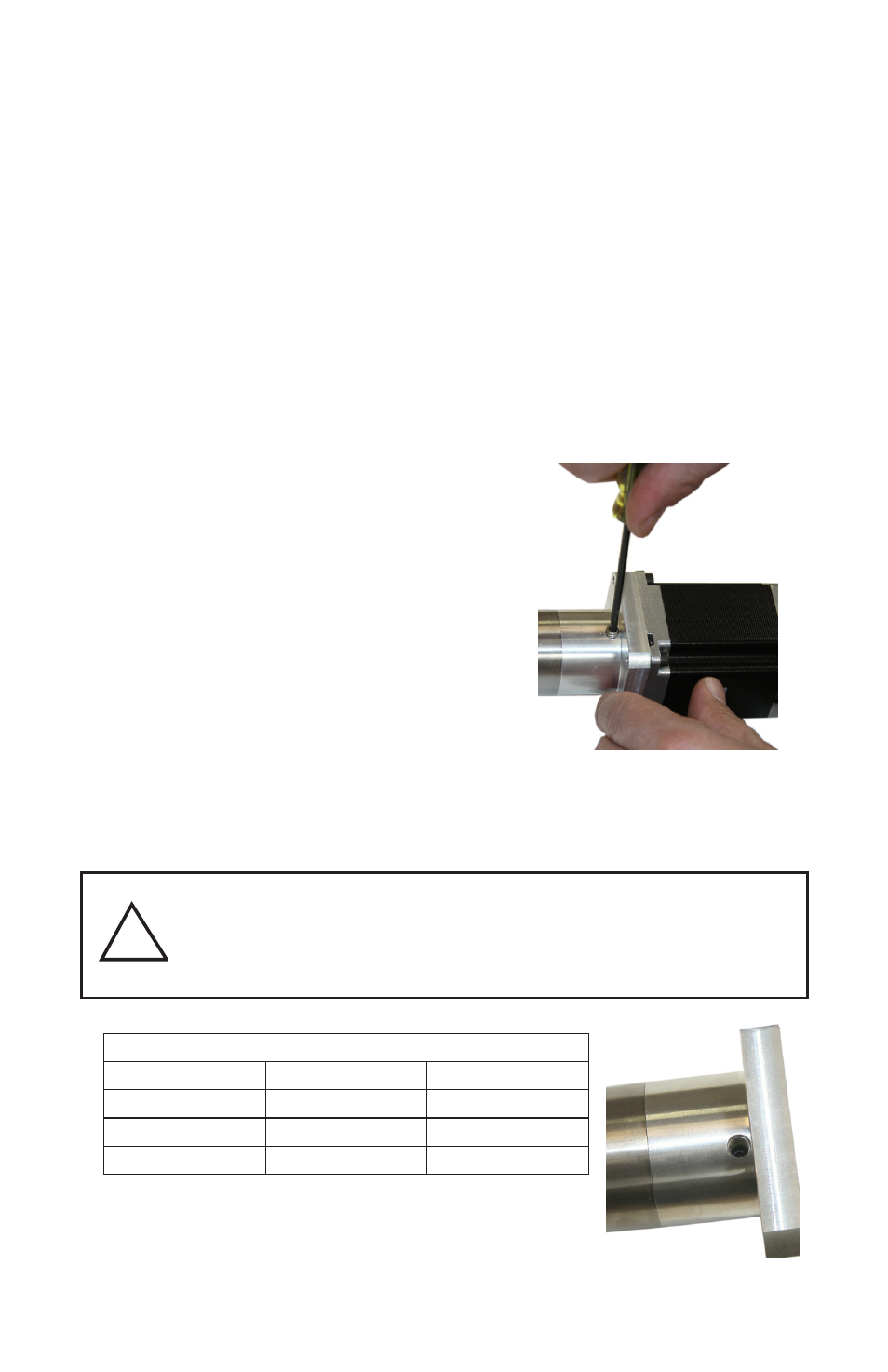

a. Remove plug to provide access to
coupler. Use a 1/8 inch allen key.
Table 1
Actuator Allen Key Torque
75 5/64" 3.8 in-lbs.
150 3/32" 8 in-ibs.
350 3/32" 8 in-lbs.
b. Turn the actuator coupler so the clamp screw is aligned with the
access hole. Loosen coupler setscrew using allen key. Allen key
sizes are identified in Table 1.
2
Note: Torque range is ± 10% .
!
Only loosen the clamp screw until it no longer secures the
motor shaft. Loosening it too much may result in the screw
falling out of the coupler, or binding against the actuator’s
inside wall.
