ESM-CDV User ’s Manual
22 ESM-CDV User ’s Manual

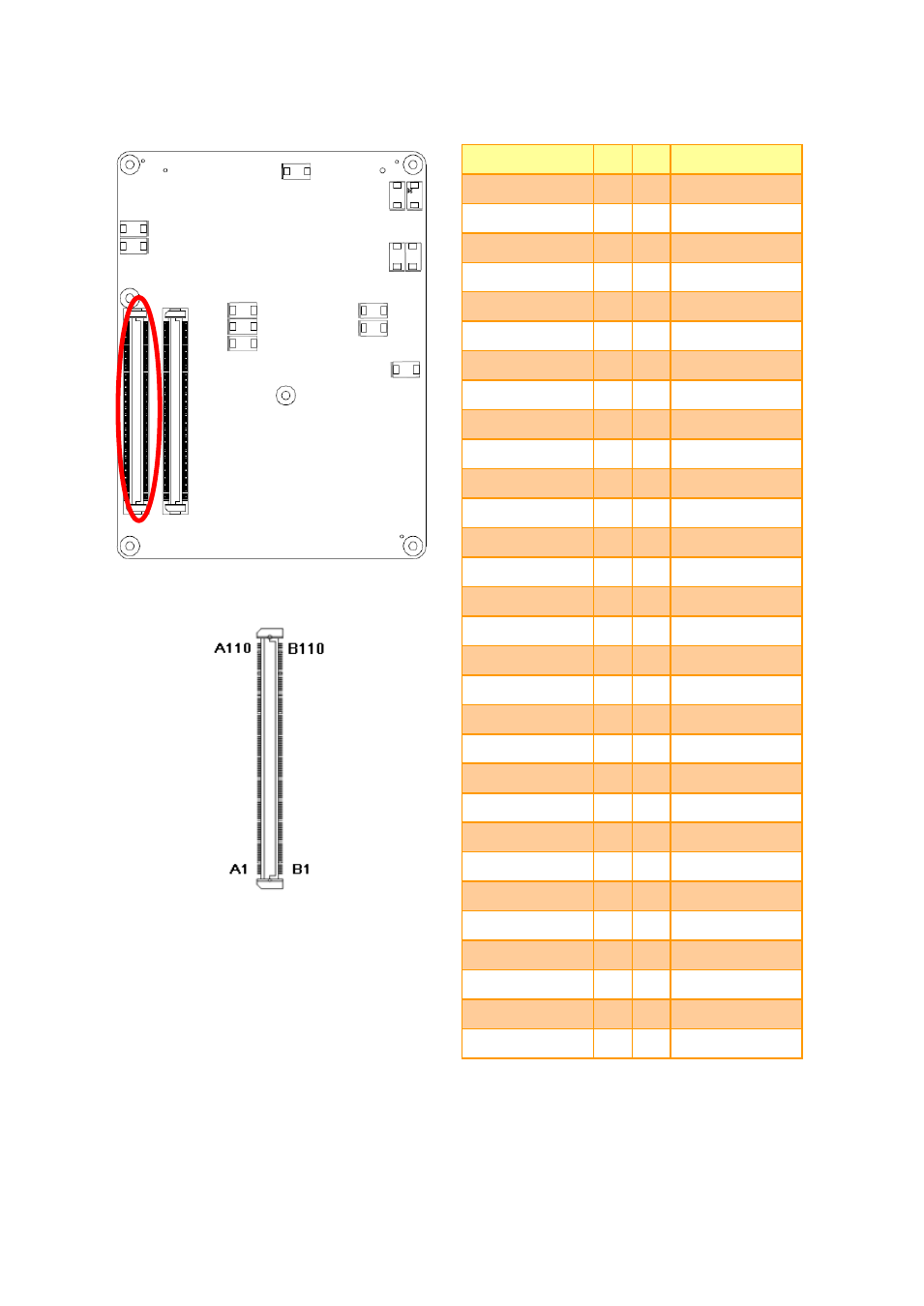

Signal PIN PIN Signal
GND A31 B31 GND
AC_BITCLK A32 B32 SPKR
AC_SDOUT A33 B33 I2C_CK
BIOS_DISABLE# A34 B34 I2C_DAT
THRMTRIP# A35 B35 THRM#
USB6- A36 B36 USB7-
USB6+ A37 B37 USB7+
USB_6_7_OC# A38 B38 USB_4_5_OC#
USB4- A39 B39 USB5-
USB4+ A40 B40 USB5+
GND A41 B41 GND
USB2- A42 B42 USB3-
USB2+ A43 B43 USB3+
USB_2_3_OC# A44 B44 USB_0_1_OC#
USB0- A45 B45 USB1-
USB0+ A46 B46 USB1+
VCC_RTC A47 B47 EXCD1_PERST#
EXCD0_PERST# A48 B48 EXCD1_CPPE#
EXCD0_CPPE# A49 B49 SYS_RESET#
LPC_SERIRQ A50 B50 CB_RESET#
GND A51 B51 GND
NC A52 B52 NC
NC A53 B53 NC
GPI0 A54 B54 GPO1
NC A55 B55 NC
NC A56 B56 NC
GND A57 B57 GPO2
PCIE_TX3+ A58 B58 PCIE_RX3+
PCIE_TX3- A59 B59 PCIE_RX3-
GND A60 B60 GND
