Smt power inductor, Sisn811 type, Features

background image

o

25 C: 100KHz, 0.1V

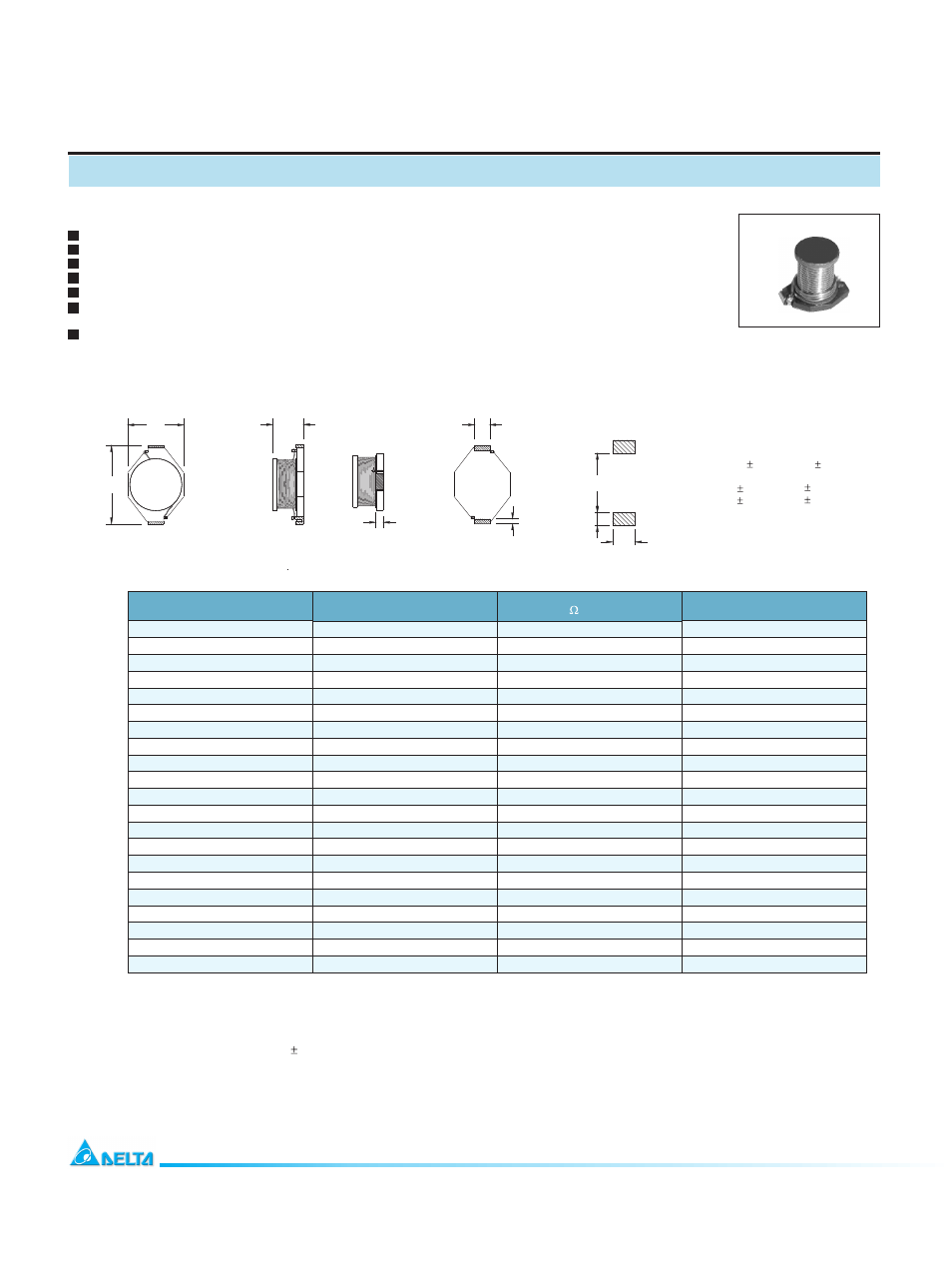

SMT Power Inductor

SISN811 Type

RoHS compliant.
Low profile (5.5mm max. height) SMD type.
Magnetically shielded, suitable for high density mounting.
High energy storage and low DCR.
Provided with embossed carrier tape packing.
Ideal for power source circuits, DC-DC converter,
DC-AC inverters inductor application.
In addition to the standard versions shown here,
customized inductors are available to meet your exact requirements.

Features

83

Electrical Characteristics:

Mechanical Dimension:

A = 13.1 / 0.516 Max.
B = 9.254 0.254 / 0.364 0.01
C = 11.0 / 0.433 Max.
D = 2.5 0.254 / 0.098 0.010
E = 1.2 0.300 / 0.047 0.012
F = 0.80 / 0.031

UNIT : mm / inch

B

C

F

D

E

A

3.2

9.6

1.9

RECOMMENDED PAD PATTERNS

1. Tolerance of inductance : 20

%.

2. Isat is the DC current which cause the inductance drop less than 10% of its nominal inductance without current.

o

o

3. Operating temperature: -20 C to 105 C (including self-temperature rise).

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.
TEL: 886-3-3591968; FAX: 886-3-3591991
http://www.deltaww.com

PART NO.

DCR

( )MAX

Isat

(Adc)

2

L

(uH)

1

SISN811 - 1R0

1.0

0.0040

22.0

SISN811 - 1R5

1.5

0.0050

22.0

SISN811 - 2R2

2.2

0.0058

18.0

SISN811 - 3R6

3.6

0.0100

14.0

SISN811 - 4R7

4.7

0.0090

6.0

SISN811 - 5R0

5.0

0.0100

15.0

SISN811 - 7R5

7.5

0.0135

6.0

SISN811 - 100

10.0

0.0400

8.0

SISN811 - 150

15.0

0.0500

7.0

SISN811 - 220

22.0

0.0660

5.5

SISN811 - 330

33.0

0.0800

4.0

SISN811 - 420

42.0

0.1000

3.0

SISN811 - 470

47.0

0.1100

3.8

SISN811 - 680

68.0

0.1700

3.0

SISN811 - 101

100.0

0.2200

2.5

SISN811 - 151

150.0

0.3400

2.0

SISN811 - 221

220.0

0.4400

1.6

SISN811 - 331

330.0

0.7000

1.2

SISN811 - 471

470.0

0.9500

1.0

SISN811 - 681

680.0

1.2000

1.0

SISN811 - 102

1000.0

2.0000

0.8
