Item Option Description
OS Selection
Windows 8.X[Default]
Android
Windows 7
Please select the corresponding type of
Windows for OS installation.
Please change the item of OS selection to
Windows 7 if you intend to install Windows 7
OS;
Please change the item of OS selection to
Windows 8.X if you intend to install Windows
8 OS.
XHCI Mode
Enabled[Default],
Disabled
Auto
Smart Auto
Mode of operation of xHCI controller.
USB2 Link Power Management
Enabled[Default],
Disabled
Enable/Disable USB2 Link Power
Management.
USB 2.0 (EHCI) Support
Enabled,
Disabled[Default]
Control the USB EHCI (USB2.0) functions.
One EHCI controller must always be
enabled.
USB Per Port Control
Enabled[Default],
Disabled
Control each of the USB ports (0~3). Enable:
Enable USB per port; Disable: Use USB port
X settings.
USB Port 0/1/2/3
Enabled[Default],
Disabled
Enable/Disable USB Port 0/1/2/3

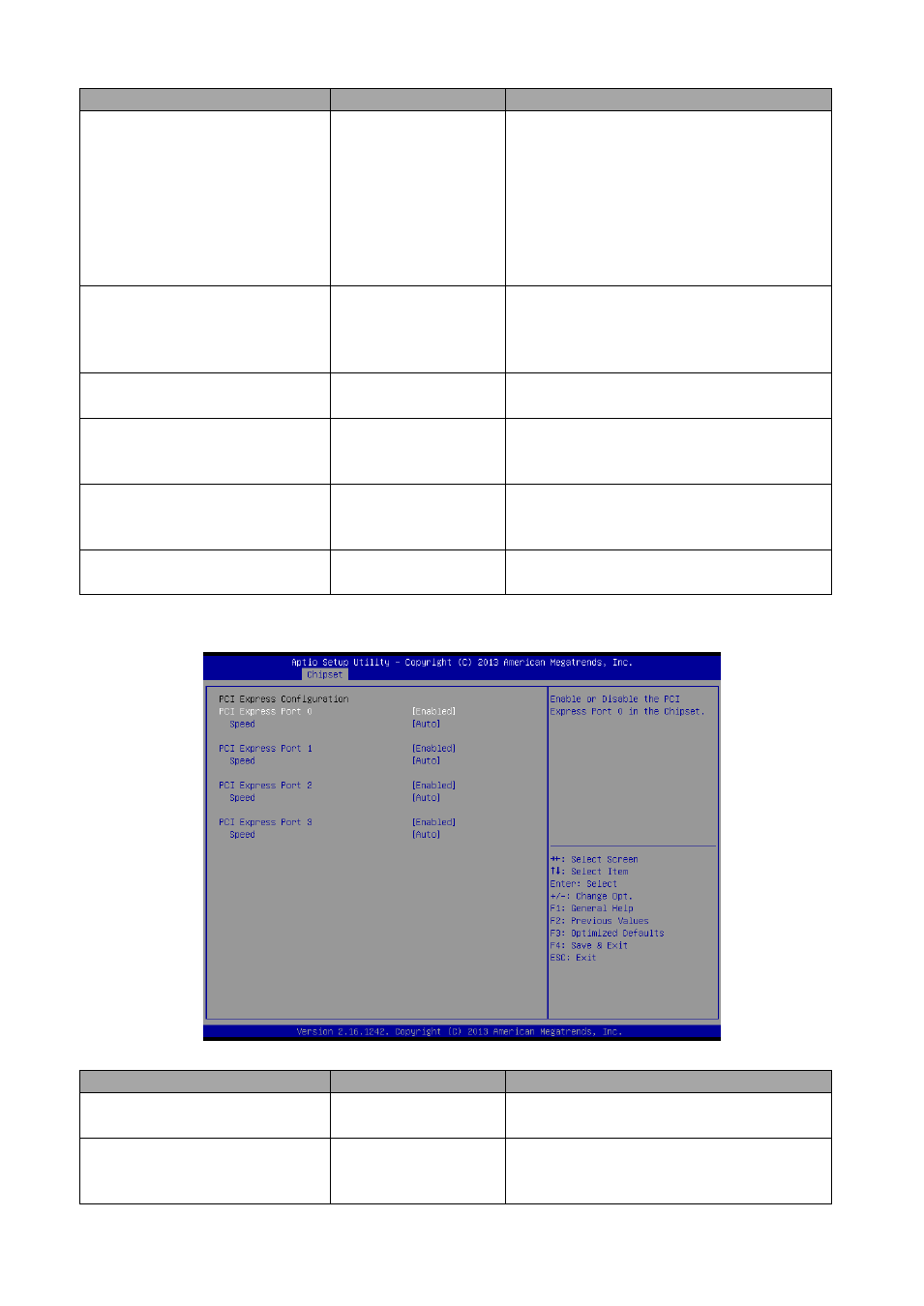

3.6.3.2.3 PCI Express Configuration
Item Option Description
PCI Express Port 0/1/2/3
Enabled[Default],
Disabled
Enable or Disable the PCI Express Port
0/1/2/3 in the Chipset.
Speed
Auto[Default]
Gen 2
Gen 1
Configure PCIe Port Speed.
