User’s Manual

EBM-BYT

User’s Manual

25

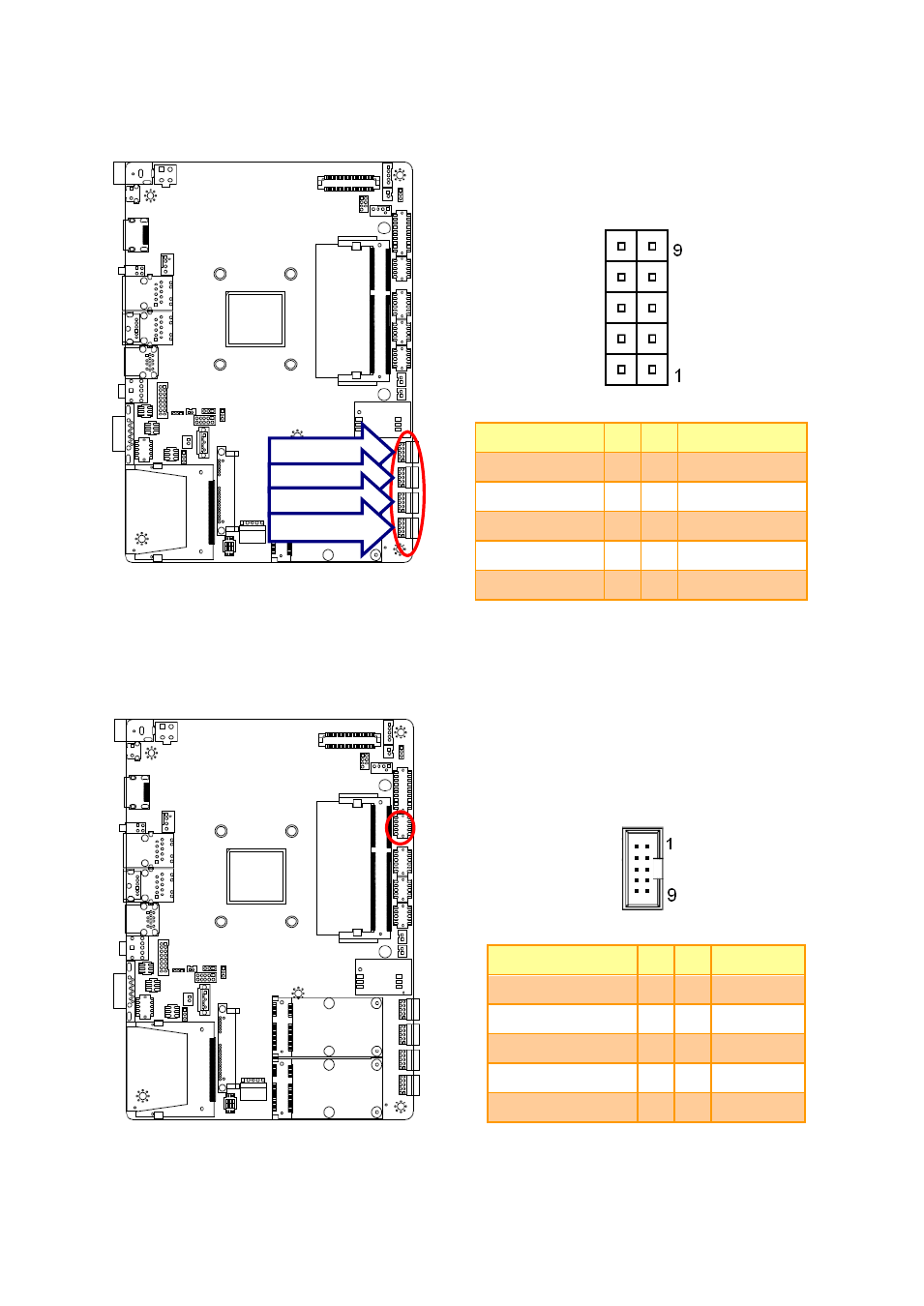

2.3.11

Serial port 3/ 4/ 5/ 6 connector (COM3/ COM4/ COM5/ COM6)

Signal

PIN PIN

Signal

COM_RI#

10

9

NC

COM_RTS#

8

7

COM_CTS#

GND

6

5

COM_DSR#

COM_TXD

4

3

COM_DTR#

COM_DCD#

2

1

COM_RXD

2.3.12

LED indicator connector (JLED1)

Signal

PIN PIN

Signal

PWR_LED#

2

1

+5VSB

HDD_LED#

4

3

+5V

LAN1_ACT#

6

5

+V3P3M

LAN2_ACT#

8

7

+V3P3A

PWR_BTN

10

9

GND

JCOM6

JCOM5

JCOM4

JCOM3
