EBM-BYT

User’s Manual

34 EBM-BYT

User’s Manual

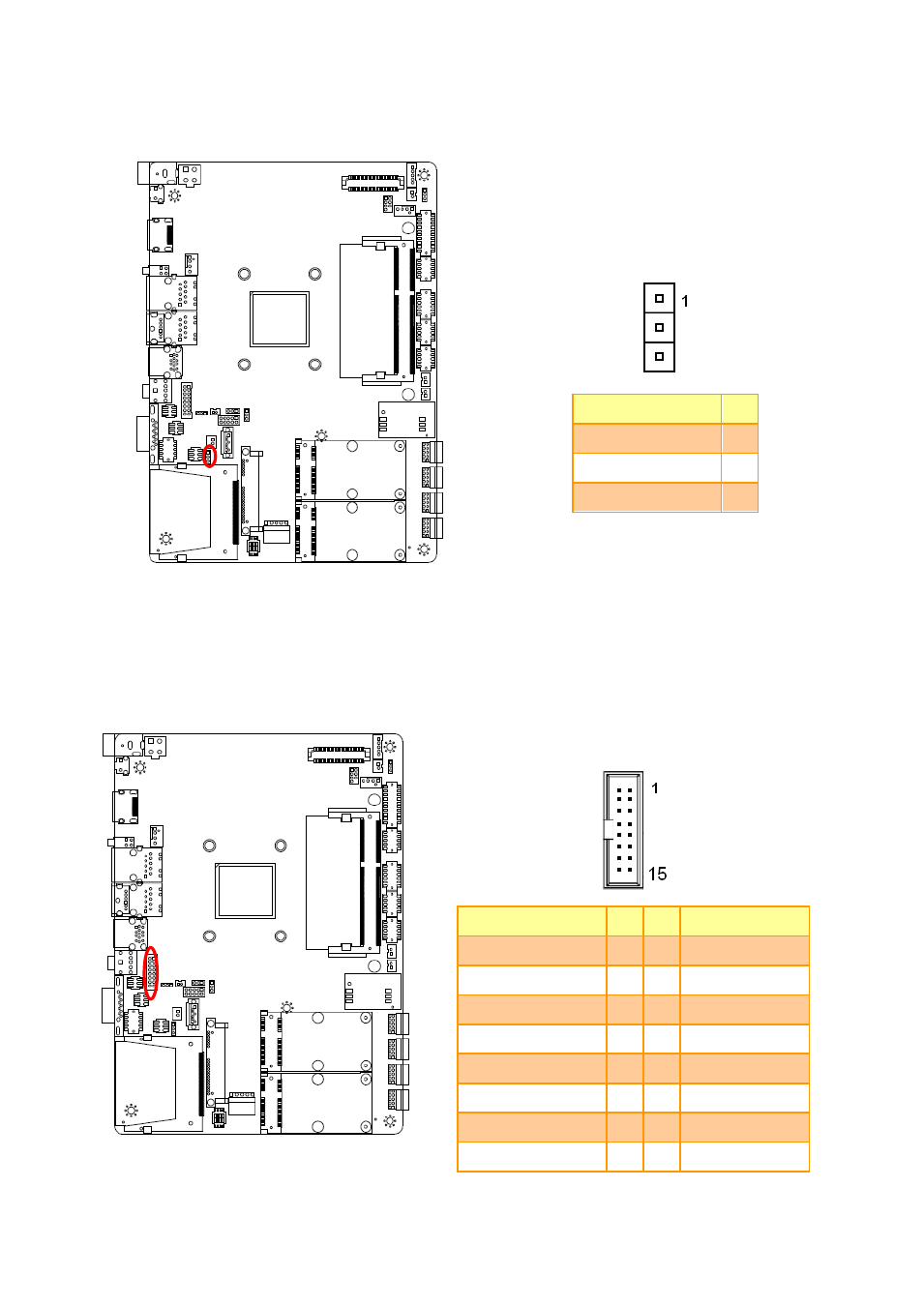

2.3.28

USB Power select (USB_PWRSEL1)

Signal

PIN

+5VSB

1

USB_PWR_SEL

2

+5V

3

2.3.29

VGA connector (VGA)

Signal

PIN PIN

Signal

VGA_RED

2

1

+V5_CRT_HDMI

VGA_GREEN

4

3

GND

VGA_BLUE

6

5

NC

NC

8

7

VGA_DDCDAT

GND

10

9

VGA_HSYNC

GND

12

11

VGA_VSYNC

GND

14

13

VGA_DDCCLK

GND

16

15

GND
