User’s Manual

EBM-BYT

User’s Manual

29

2.3.18

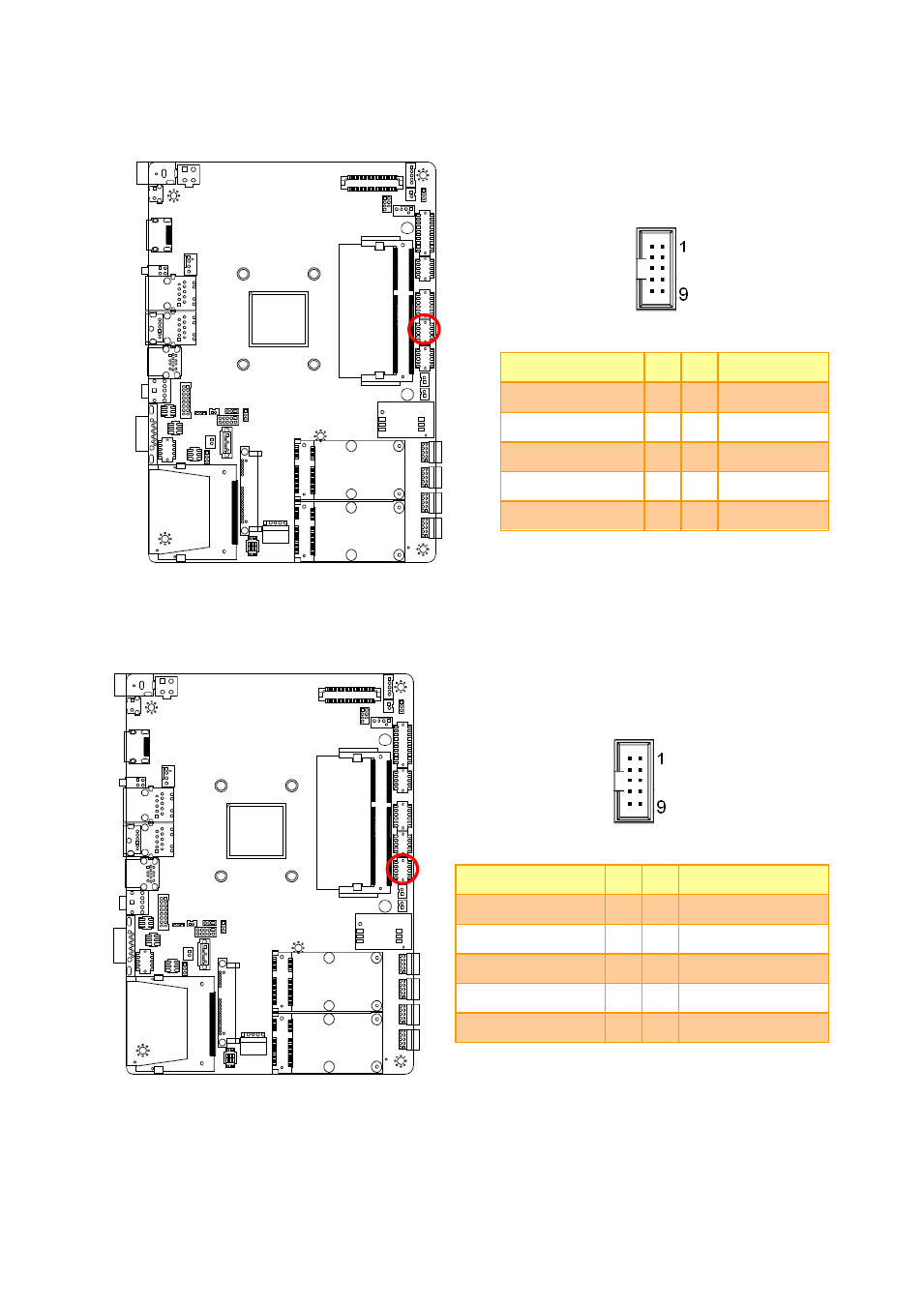

USB connector 3 & 4 (JUSB23)

Signal

PIN PIN

Signal

USBVCC3

2

1

USBVCC2

USB_HUB1_R_DN

4

3

USB_DN_R_2

USB_HUB1_R_DP

6

5

USB_DP_R_2

GND

8

7

GND

GND

10

9

GND

2.3.19

USB connector 5 & 6 (JUSB45)

Signal

PIN PIN

Signal

USBVCC5

2

1

USBVCC4

HSICUSB1B_DN_R

4

3

HSICUSB1A_DN_R

HSICUSB1B_DP_R

6

5

HSICUSB1A_DP_R

GND

8

7

GND

GND

10

9

GND
