EBM-BYT User’s Manual
26 EBM-BYT User’s Manual

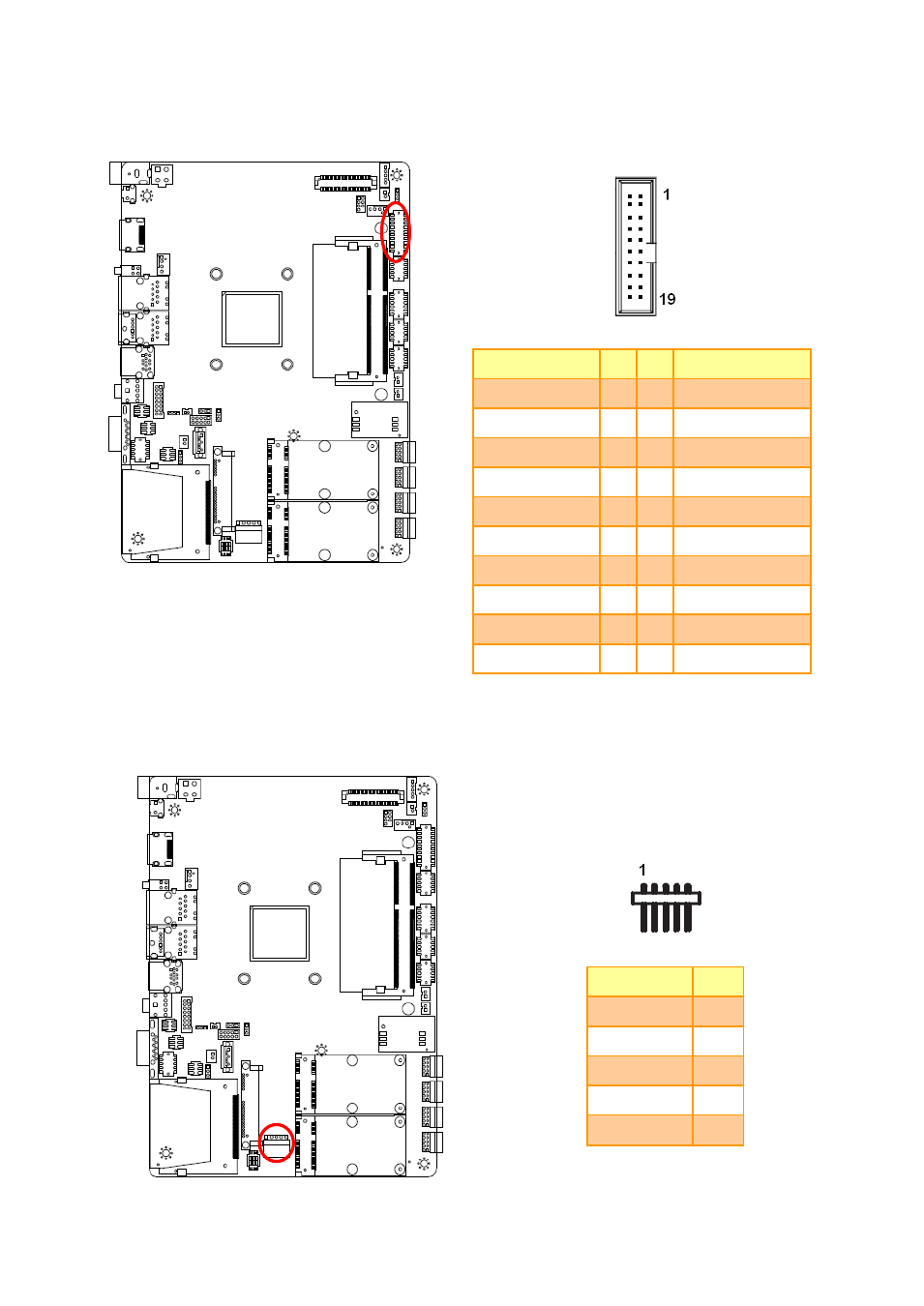

2.3.13 General purpose I/O connector (JDIO)
Signal PIN PIN Signal
DIO_GP10 2 1 DIO_GP20
DIO_GP11 4 3 DIO_GP21
DIO_GP12 6 5 DIO_GP22
DIO_GP13 8 7 DIO_GP23
DIO_GP14 10 9 DIO_GP24
DIO_GP15 12 11 DIO_GP25
DIO_GP16 14 13 DIO_GP26
DIO_GP17 16 15 DIO_GP27
SMB_CLK_9555 18 17 SMB_DATA_9555
GND 20 19 +5V
2.3.14 Touch panel connector (JTOUCH1)
Signal PIN
THX+ 1
THX- 2
THPROBE_R 3
THY+ 4
THY- 5
