EPI-QM67
48 EPI-QM67 User ’s Manual

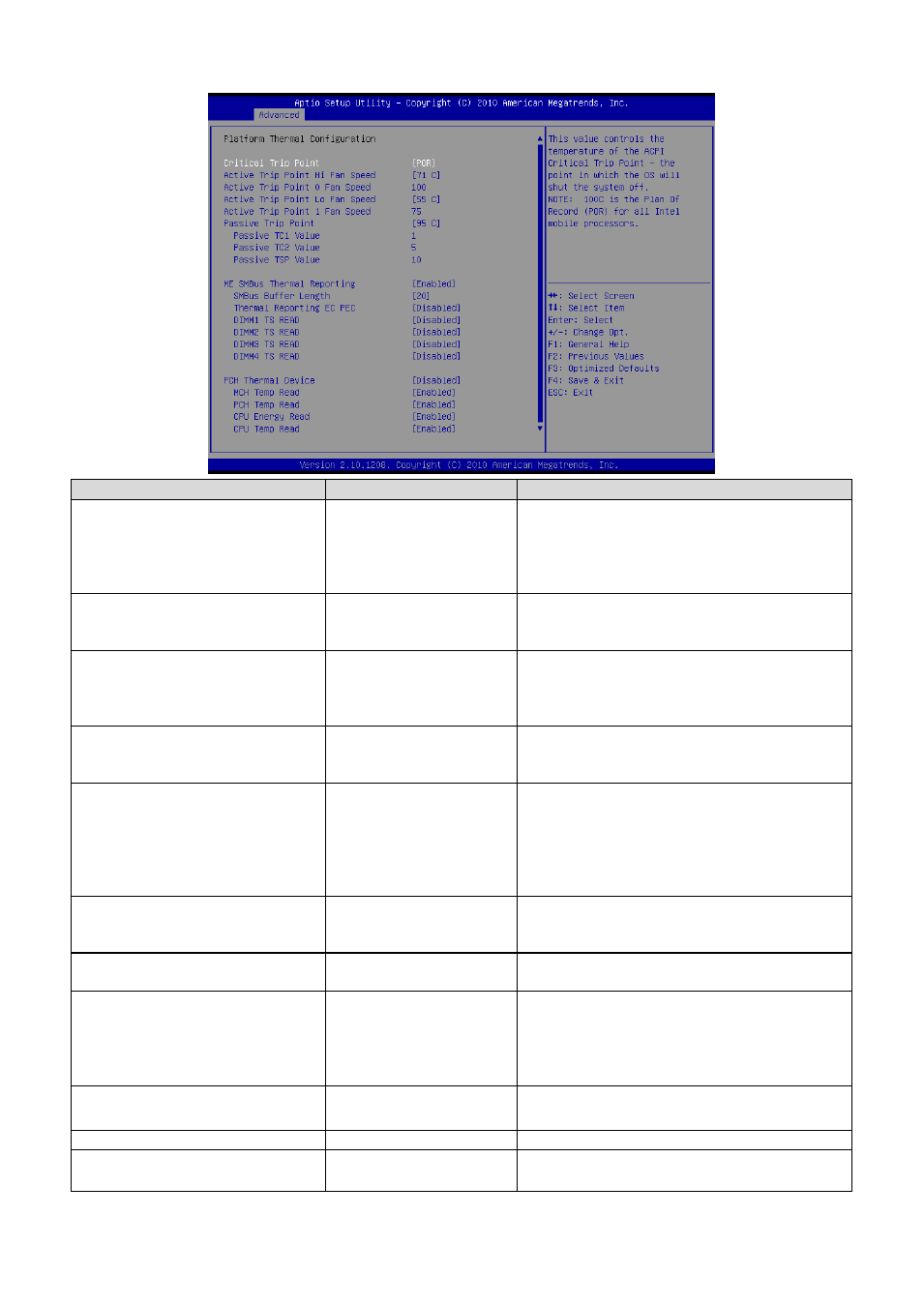

Item Options Description
Critical Trip Point
POR
15/23/31/39/47/55/63/71/
79/87/95/103/111/119C
This value controls the temperature of the
ACPI critical Trip Point- the point in which the
OS will shut the system off. NOTE: 100C is the
Plan Of Record (POR) for all Intel mobile
processors.
Active Trip Point Hi Fan Speed
Disabled
15/23/31/39/47/55/63/71/
79/87/95/103/111/119C
This value controls the temperature of the
ACPI Active Trip Point- the point in which the
OS will turn the processor fan high.
Active Trip Point 0 Fan Speed 0 ~ 100
Active Trip Point 0 Fan Speed in percentage.
Value must be between 0 (Fan off) -100 (Max
fan speed). This is the speed at which fan will
run when Active Trip Point 0 is crossed.
Active Trip Point Lo Fan Speed
Disabled
15/23/31/39/47/55/63/71/
79/87/95/103/111/119C
This value controls the temperature of the
ACPI Active Trip Point- the point in which the
OS will turn the processor fan on low
Active Trip Point 1 Fan Speed 0 ~ 100
Active Trip Point 1Fan speed in percentage.
Value must be between 0 (Fan off)
– 100 (Max
fan speed). This value must be less than
Active Trip Point 0 Fan speed. This is the
speed at which fan will run when Active Trip 1
is crossed.
Passive Trip Point
Disabled
15/23/31/39/47/55/63/71/
79/87/95/103/111/119C
This value controls the temperature of the
ACPI Passive Trip Point- the point in which the
OS will begin throttling the processor
Passive TC1 / TC2 Value 1-16
This value sets the TC1 value for the ACPI
Passive Cooling Formula. Range 1-16
Passive TSP Value 2 ~ 32
This item sets the TSP value for the ACPI
Passive Cooling Formula. It represents in
tenths of a second how often the OS will read
the temperature when passive cooling in
enabled. Range 2- 32
ME SMBus Thermal Reporting
Disabled,
Enabled
Enable/ Disable ME SMBus Thermal
Reporting Configuration.
SMBus Buffer Length 1/2/5/9/10/14/20 SMBus Block Read message length for EC.
Thermal Reporting EC PEC
Disabled,
Enabled
Enable Packet Error Checking (PEC) for
SMBus Block Read.
