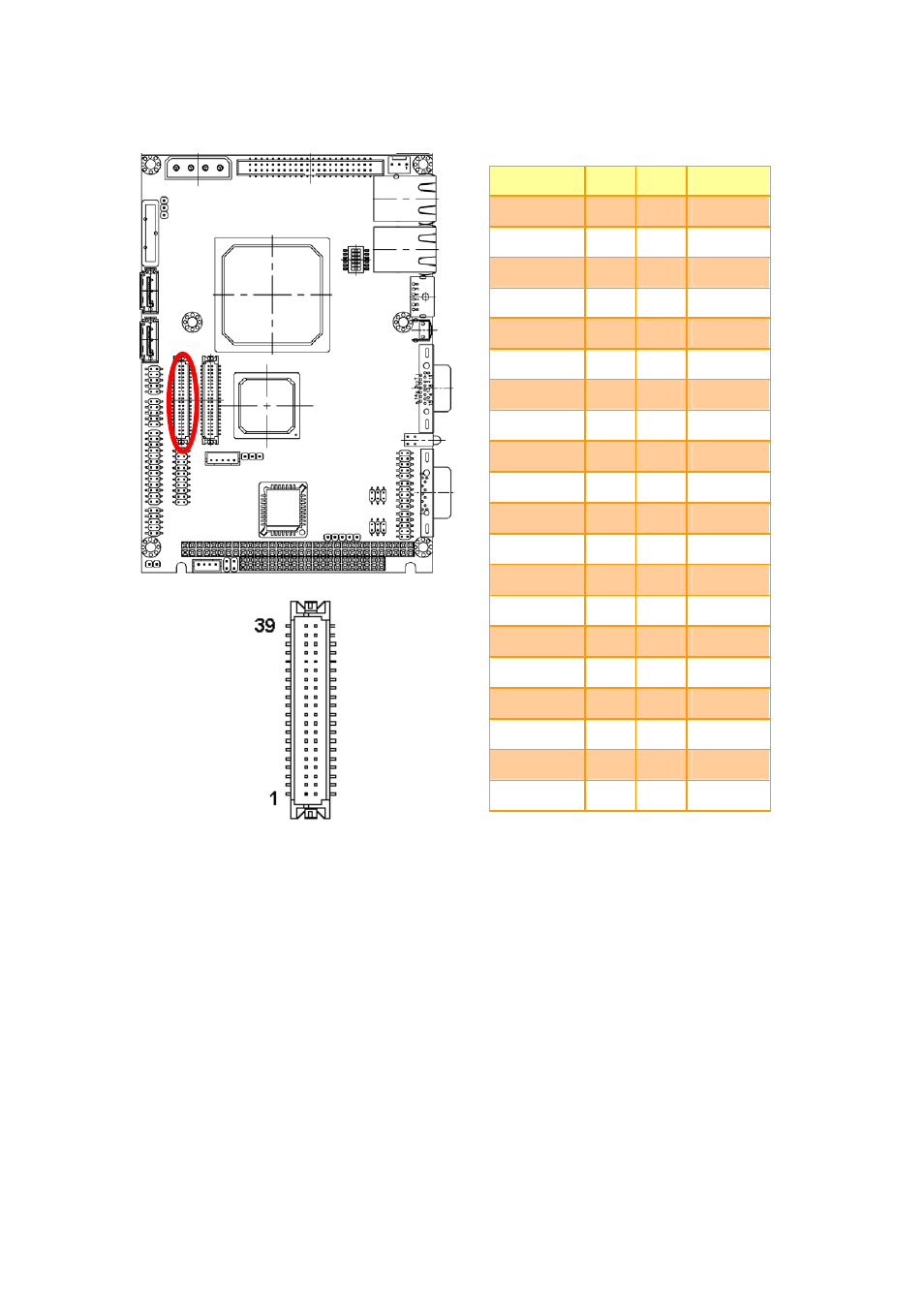

TFT Panel Connector (JTFT)

Signal

PIN

PIN

Signal

+5V

2

1

+5V

GND 4

3 GND

+3.3V

6

5

+3.3V

GND 8

7 NC

P1

10

9

P0

P3 12

11 P2

P5

14

13

P4

P7 16

15 P6

P9

18

17

P8

P11 20

19 P10

P13

22

21

P12

P15 24

23 P14

P17

26

25

P16

P19 28

27 P18

P21

30

29

P20

P23 32

31 P22

GND

34

33

GND

FLM 36

35

SHFCLK

LP

38

37

M

NC 40

39

ENBKL
